Cisco ANT-GNSS-OUT-TNC Antenna

Part Number: ANT-GNSS-OUT-TNC
Model:
Add to My Shopping List Add to Compare
$324.11
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Operating Frequency Range
1560 MHz to 1606 MHz
Antenna Gain
30 dB
Connector Type
TNC
Color Family
Gray

Product Description:

  Antennas, Cisco, Cisco Antenna, 1560 MHz to 1606 MHz, 30 dB, GPS, Gray, Pole, TNC Connector
Explore all Cisco Parts Accessories
Add to Quote
Cisco ANT-GNSS-OUT-TNC Antenna
Cisco ANT-GNSS-OUT-TNC Antenna
Cisco ANT-GNSS-OUT-TNC Antenna Cisco ANT-GNSS-OUT-TNC Antenna

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco ANT-GNSS-OUT-TNC Antenna Overview

The Cisco GNSS Antenna (ANT-GNSS-OUT-TNC) is designed to cover a frequency range of 1560 to 1606 MHz.

Features include the following:

  • 30dB LNA gain
  • Features a GNSS filter-LNA-filter-LNA arrangement to maximize performance and allow co-location with other radios
  • Current consumption: <10mA
  • IP66 & IP67
  • Includes mounting bracket and corresponding hardware

Applications include the following:

  • GPS, Glonass , Beidou
  • Active antenna for timing
  • Location based services
Technical Information
Operating Frequency Range:
1560 MHz to 1606 MHz
Antenna Gain:
30 dB
Interfaces/Ports
Connector Type:
TNC
Physical Characteristics
Color Family:
Gray
Product Color:
Gray
Form Factor:
Pole
Weight (Approximate):
14.82 oz
Miscellaneous
Application/Usage:
GPS
Package Contents:

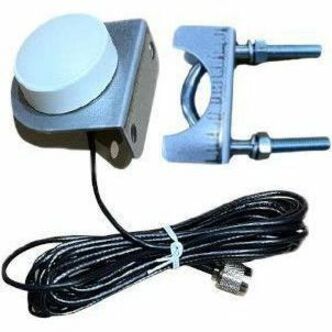

  • Antenna
  • Pole Mount Bracket
  • U Bolt
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0889728406550
UPC: 889728406550
EAN: 0889728406550
UNSPSC: 43221706
The Cisco ANT-GNSS-OUT-TNC Antenna is also known as CSC-ANTGNSSOUTTNC
