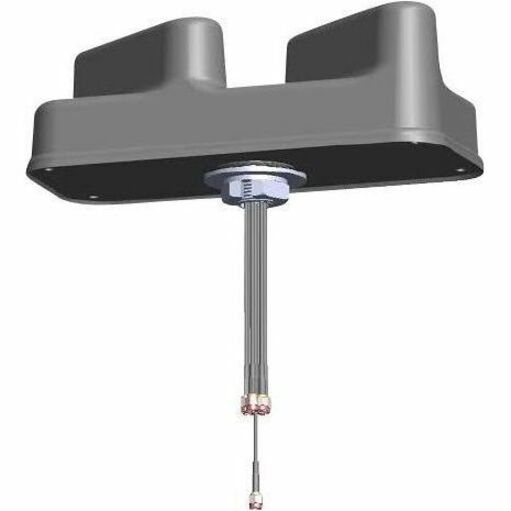

Cisco ANT-7-5G4WL2G1-O Antenna

Part Number: ANT-7-5G4WL2G1-O
Model:
Add to My Shopping List Add to Compare
$1,167.92
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Directivity
Omni-directional
Operating Frequency Range
617 MHz to 960 MHz1710 MHz to 5925 MHz
Antenna Gain (Isotropic)
5.8 dBi
Voltage Standing Wave Ratio (VSWR)
2.5:1

Product Description:

  Antennas, Cisco, Cisco ANT-7-5G4WL2G1-O Antenna, 617 MHz to 960 MHz, 1710 MHz to 5925 MHz, 5.8 dBi, Cellular Network, GPS, Wireless Data NetworkVehicle Mount, Direct Mount, Omni-directional, SMA, RP-SMA Connector
Explore all Cisco Parts Accessories
Add to Quote
Cisco ANT-7-5G4WL2G1-O Antenna
Cisco ANT-7-5G4WL2G1-O Antenna
Cisco ANT-7-5G4WL2G1-O Antenna Cisco ANT-7-5G4WL2G1-O Antenna

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco ANT-7-5G4WL2G1-O Antenna Overview

This section describes the technical specifications and installation instructions for the Cisco Multi-element, 7-in-1, LTE/Wi-Fi/GNSS antenna (ANT-7-5G4WL2G1-O), hereafter referred to as the antenna. The antenna features:

  • Antenna Type - Multi Band Monopole, built in ground plane
  • Direct Mount, 6x 2ft RG 316 / 1x 17ft RG 174
  • 4x Cellular (4G/5G)
  • 1x GNSS
  • 2x WiFi

The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.

Technical Information
Directivity:
Omni-directional
Operating Frequency Range:
  • 617 MHz to 960 MHz
  • 1710 MHz to 5925 MHz
Antenna Gain (Isotropic):
5.8 dBi
Voltage Standing Wave Ratio (VSWR):
2.5:1
Interfaces/Ports
Connector Type:
  • SMA
  • RP-SMA
Power Description
Power Source:
DC Power
Physical Characteristics
Height:
3.63"
Width:
4.86"
Form Factor:
  • Vehicle Mount
  • Direct Mount
Weight (Approximate):
1.85 lb
Miscellaneous
Application/Usage:
  • Cellular Network
  • GPS
  • Wireless Data Network
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43221706
The Cisco ANT-7-5G4WL2G1-O Antenna is also known as CSC-ANT75G4WL2G1O
