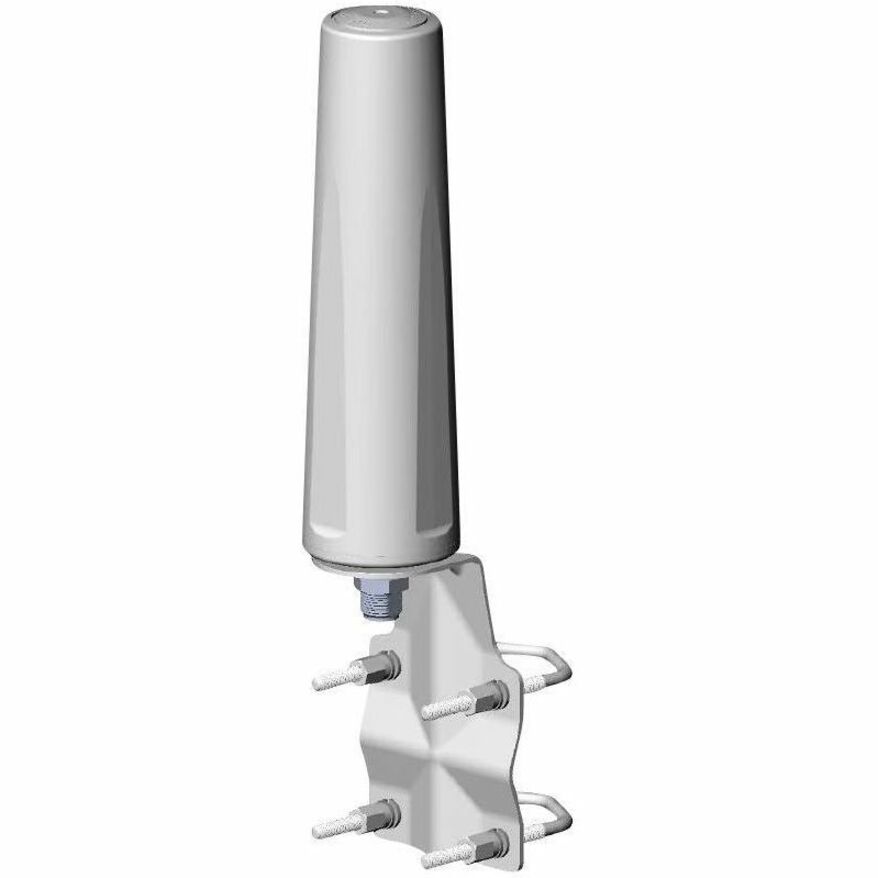

Cisco ANT-5G-OMNI-OUT-N Antenna

Part Number: ANT-5G-OMNI-OUT-N
Model:
Add to My Shopping List Add to Compare
$213.42
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Directivity
Omni-directional
Operating Frequency Range
617 MHz to 960 MHz1450 MHz to 7125 MHz
Antenna Gain (Isotropic)
4.3 dBi
Voltage Standing Wave Ratio (VSWR)
2:1

Product Description:

  Antennas, Cisco, Cisco 4G (LTE) / 5G (FR1) Omnidirectional Outdoor Antenna, 617 MHz to 960 MHz, 1450 MHz to 7125 MHz, 4.3 dBi, IoT Device, Utility Box, Smart Metering, OutdoorDipole, Omni-directional, N-connector Connector
Explore all Cisco Parts Accessories
Add to Quote
Cisco ANT-5G-OMNI-OUT-N Antenna
Cisco ANT-5G-OMNI-OUT-N Antenna
Cisco ANT-5G-OMNI-OUT-N Antenna Cisco ANT-5G-OMNI-OUT-N Antenna

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco ANT-5G-OMNI-OUT-N Antenna Overview

This document describes the Cisco ANT-5G-OMNI-OUT-N omnidirectional outdoor antenna and provides details on radiation patterns, technical specifications, and installation notes. The antenna is designed for IoT devices, Smart metering, and Utility boxes.

Technical Information
Directivity:
Omni-directional
Operating Frequency Range:
  • 617 MHz to 960 MHz
  • 1450 MHz to 7125 MHz
Antenna Gain (Isotropic):
4.3 dBi
Voltage Standing Wave Ratio (VSWR):
2:1
Interfaces/Ports
Connector Type:
N-connector
Physical Characteristics
Height:
8.64"
Diameter:
2.45"
Form Factor:
Dipole
Weight (Approximate):
1.37 lb
Miscellaneous
Application/Usage:
  • IoT Device
  • Utility Box
  • Smart Metering
  • Outdoor
Item Numbers
UNSPSC: 43221706
The Cisco ANT-5G-OMNI-OUT-N Antenna is also known as CSC-ANT5GOMNIOUTN
