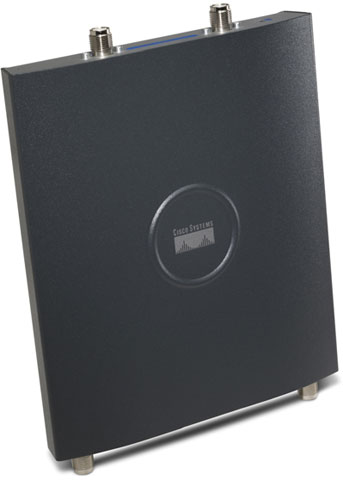

Cisco AIR-LAP1242AG-N-K9 Access Point

The Cisco AIR-LAP1242AG-N-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1240AG Series - Cisco Aironet 1240AG Wireless Access Point - 54Mbps

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
Link your Wi-Fi traffic to your wired network with Fast Ethernet port

Need a different version? See all Cisco Aironet 1240AG Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1240AG Series Access Point Model Overview

Cisco Aironet 1240AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. Designed specifically for challenging RF environments like factories, warehouses, and large retail establishments it has the versatility associated with connected antennas, a rugged metal enclosure, and a broad operating temperature range. The Aironet 1240AG Series is available in: A lightweight version, an autonomous version that can be field-upgraded to lightweight operation, and a single-band 802.11g version for use in regulatory domains that do not allow 802.11a/5 GHz operation. The Cisco Aironet 1240AG Series comes complete with all the mounting hardware necessary for a secure, rugged installation. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering.

Cisco AIR-LAP1242AG-N-K9 Access Point Overview

The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point works in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). It can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS Software and may optionally operate with the Cisco Works Wireless LAN Solution Engine (WLSE).

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.40 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5 GHz

Total Number of Antennas:

Antenna Gain:

2.2 dBi
3.5 dBi

Antenna Type:

Diversity Dipole Antenna
Omnidirectional Antenna

Antenna Connector:

RP-TNC Connector

Indoor Antenna Range:

410 ft

Outdoor Antenna Range:

900 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

WPA
WPA2
802.11i
IEEE 802.11 WEP
802.1x EAP

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Number of Network (RJ-45) Ports:

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Wall Mountable

Height:

6.6"

Depth:

8.5"

Weight (Approximate):

2 lb

Miscellaneous

Package Contents:

Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point
Mounting hardware kit
Quick Start Guide: Cisco Aironet 1240AG Series Access Point
Safety Warnings for Cisco Aironet 1240AG Series Access Points
Cisco product registration and Cisco documentation feedback cards

Mounting plate:

Cable security bracket
2 x suspended ceiling T-rail clips (accommodates standard and recessed T-rails)
1 x security hasp
4 x (6 x 32 x ½ inches) pan head Phillips machine screws
1 x (8 x 18 x ¾ inches) pan head Phillips sheet metal screws
2 x No. 8 plastic wall anchors
1 x (10 x 24) nut (for ground stud on mounting bracket)
4 x rubber foot pads
2 x cable tie wraps

Additional Information:

North America configuration (not FCC)

Antenna Connectors:

2.4 GHz: Dual RP-TNC connectors
5 GHz: Dual RP-TNC connectors

Certifications & Standards:

Wi-Fi
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
NIST FIPS

Radio approvals:

RSS-210 (Canada)
EMI and susceptibility (Class B)
ICES-003 (Canada)

Security:

WPA2
WPA
IEEE 802.11i
IEEE 802.1x
AES
TKIP

Other:

IEEE 802.11g
IEEE 802.11a
RSS-102

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0882658058233

UPC: 882658058233

EAN: 0882658058233

UNSPSC: 43222631
