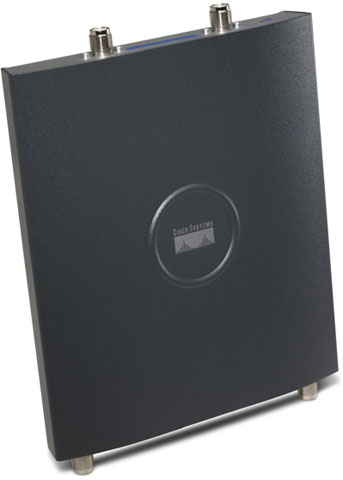

Cisco AIR-LAP1242AG-A-K9 Wireless Access Points

Part Number: AIR-LAP1242AG-A-K9
Model: Aironet 1240AG Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11a/b/g
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Cisco Aironet 1242AG Wireless Access Point - 108Mbps
Explore all Cisco Aironet 1240AG Series Wireless Access Points
Add to Quote
Cisco AIR-LAP1242AG-A-K9 Wireless Access Points
Cisco AIR-LAP1242AG-A-K9 Wireless Access Points
Cisco AIR-LAP1242AG-A-K9 Wireless Access Points Cisco AIR-LAP1242AG-A-K9 Wireless Access Points
Full specifications (PDF)

Cisco Aironet 1240AG Series Wireless Access Points Model Overview

The Cisco Aironet 1240AG Series 802.11A/B/G Access Point is engineered for high-capacity wireless network solutions in challenging environments. With a robust metal enclosure and versatile antenna options, it ensures secure connectivity across factories, warehouses, and large retail spaces. Supporting both unified and autonomous configurations, it offers seamless integration into Cisco's Unified Wireless Network, providing enterprise-class features like hardware-assisted AES encryption for top-level security, making it ideal for mission-critical applications.


Key Features:

  • High Capacity: Delivers up to 108 Mbps with dual radios.
  • Rugged Design: Metal housing and extended operating temperature range.
  • Versatile Antenna Connectors: Supports both 2.4-GHz and 5-GHz antennas for enhanced coverage.
  • Comprehensive Security: FIPS 140-2 validated and supports WPA2, EAP types.
  • Power over Ethernet: Simplifies installation with support for inline power and IEEE 802.3af PoE.

Specifications:

  • Regulatory Domains: FCC, ETSI, China, Japan, Korea, Israel, Singapore
  • Data Rates Supported: 802.11a (up to 54 Mbps), 802.11g (up to 54 Mbps)
  • Operating Temperature: -4 to 131°F (-20 to 55°C)
  • Non-Overlapping Channels: 12 channels (FCC), 13 channels (ETSI, China)
  • Weight: 2.0 lbs
  • Dimensions: 6.6 x 8.5 x 1.1 in. (16.76 x 21.59 x 2.79 cm)
  • Power Requirements: 100-240 VAC or 36 to 57 VDC
  • Power Draw: 12.95W maximum
Cisco AIR-LAP1242AG-A-K9 Wireless Access Points Overview

The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.
The Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point works in conjunction with Cisco wireless LAN controllers and the Cisco Wireless Control System (WCS). It can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention. Autonomous access points are based on Cisco IOS Software and may optionally operate with the Cisco Works Wireless LAN Solution Engine (WLSE).

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.40 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
4
Antenna Gain:
  • 2.2 dBi
  • 3.5 dBi
Antenna Type:
  • Diversity Dipole Antenna
  • Omnidirectional Antenna
Antenna Connector:
RP-TNC Connector
Indoor Antenna Range:
460 ft
Outdoor Antenna Range:
950 ft
Wireless Transmission Speed:
108 Mbit/s
Wireless Security:
  • WPA
  • WPA2 (802.11i)
  • Cisco message integrity check (MIC)
  • IEEE 802.11 WEP keys of 40 bits and 128 bits
  • EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • Protected EAP-Generic Token Card (PEAP-GTC)
  • PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAP)
  • EAP-Transport Layer Security (EAP-TLS)
  • EAP-Tunneled TLS (EAP-TTLS)
  • EAP-Subscriber Identity Module (EAP-SIM)
  • AES-CCMP encryption (WPA2)
  • TKIP (WPA)
  • WPA TKIP
  • IEEE 802.11 WEP keys of 40 bits and 128 bits
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.1"
Depth:
8.5"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • Aironet 1240AG IEEE 802.11a/g Non-modular LWAPP Access Point
  • Mounting hardware kit
  • Quick Start Guide: Cisco Aironet 1240AG Series Access Point
  • Safety Warnings for Cisco Aironet 1240AG Series Access Points
  • Cisco product registration and Cisco documentation feedback cards

Mounting plate:

  • Cable security bracket
  • 2 x suspended ceiling T-rail clips (accommodates standard and recessed T-rails)
  • 1 x security hasp
  • 4 x (6 x 32 x ½ inches) pan head Phillips machine screws
  • 1 x (8 x 18 x ¾ inches) pan head Phillips sheet metal screws
  • 2 x No. 8 plastic wall anchors
  • 1 x (10 x 24) nut (for ground stud on mounting bracket)
  • 4 x rubber foot pads
  • 2 x cable tie wraps
Additional Information:

Antenna Connectors:

  • 2.4 GHz: Dual RP-TNC connectors
  • 5 GHz: Dual RP-TNC connectors
Certifications & Standards:
  • Wi-fi
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • NIST FIPS

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EMI and susceptibility (Class B)
  • ICES-003 (Canada)

Security:

  • IEEE 802.11i, WPA2, WPA
  • IEEE 802.1X
  • AES, TKIP

Other:

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • FCC
  • RSS-102
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555094372, 0818240568064, 0818241151548, 0882658058271, 4943783144751
UPC: 783555094372, 818240568064, 818241151548, 882658058271
EAN: 0783555094372, 0818240568064, 0818241151548, 0882658058271, 4943783144751
UNSPSC: 43222631
The Cisco AIR-LAP1242AG-A-K9 Wireless Access Points is also known as CSC-AIRLAP1242AGAK9 or AIR-LAP1242AG-A-K9.
