Cisco AIR-LAP1232AG-A-K9 Access Point

The Cisco AIR-LAP1232AG-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

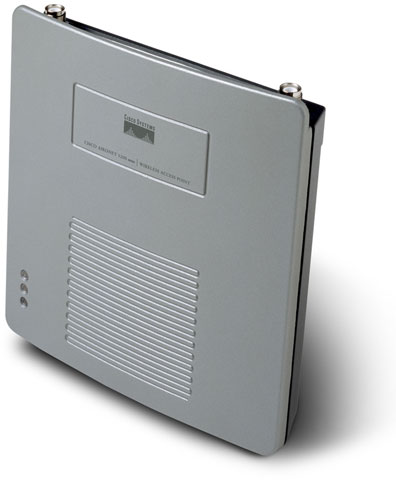

Cisco Aironet 1200 Series - Cisco Aironet 1232AG Wireless Access Point - 54Mbps
  • Ensure speedy data transfer of up to 54 Mbit/s with the IEEE 802.11a/b/g wireless technology
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More
Discontinued Need Assistance?
Add to Quote
Cisco Aironet 1200 Series Access Point Model Overview
The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.
Cisco AIR-LAP1232AG-A-K9 Access Point Overview

Cisco Aironet 1230AG Modular 802.11a/b/g Access Point deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. This IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.40 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
2
Antenna Connector:
Dual RP-TNC Connector
Indoor Antenna Range:
500 ft
Outdoor Antenna Range:
950 ft
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • WPA
  • WPA2 (802.11i)
  • IEEE 802.11 WEP
  • 802.1X EAP
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
1.6"
Depth:
7.2"
Weight (Approximate):
1.72 lb
Miscellaneous
Additional Information:

Antennas:

  • 2.4 GHz Dual RP-TNC connectors
  • 5 GHz Dual RP-TNC connectors
Certifications & Standards:
  • Wi-fi
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • NIST FIPS

Radio approvals:

  • FCC
  • RSS-210 (Canada)
  • EMI and susceptibility (Class B)
  • ICES-003 (Canada)

Security:

  • IEEE 802.11i, WPA2, WPA
  • IEEE 802.1X
  • AES, TKIP

Other:

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • RSS-102
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0882658058363
UPC: 882658058363
EAN: 0882658058363
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco AIR-LAP1232AG-A-K9 Access Point is also known as CSC-AIRLAP1232AGAK9
