Cisco AIR-LAP1141N-A-K9 Access Point

The Cisco AIR-LAP1141N-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1140 Series - Cisco Aironet 1141N Wireless Lightweight Access Point - IEEE 802.11n (draft), IEEE 802.11b/g 300Mbps - 1 x 10/100/1000Base-T

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11n technology and speeds up to 300 Mbit/s
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1140 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1140 Series Access Point Model Overview

The Cisco Aironet 1140 Series is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet 1140 Series heritage of RF excellence, the Aironet 1140 Series combines the industry's most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment. Designed for sustainability, the 1140 Series delivers high performance from standard 802.3af Power over Ethernet while decreasing waste with multiunit eco-packs and Energy Star certified power supplies.

Cisco AIR-LAP1141N-A-K9 Access Point Overview

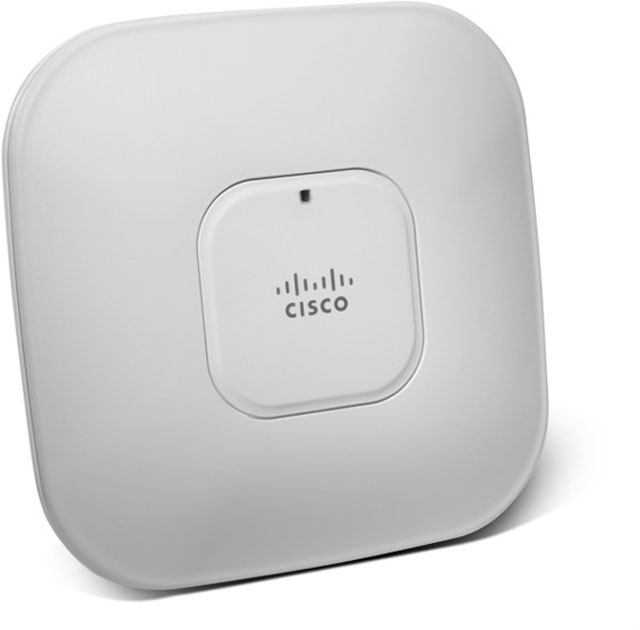

The Cisco Aironet 1141N Access Point is a business-ready, indoor access point designed for simple deployment and energy efficiency. This is a dual-band, 802.11n access point with integrated antennas.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

Frequency Band:

2.40 GHz

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Antenna Gain:

4 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA2
EAP-TLS
EAP-TTLS
EAP-MSCHAPv2
EAP-FAST
EAP-SIM
EAP-GTC
PEAP
TKIP

Data Encryption:

Yes

Encryption Standard:

AES
TKIP

Interfaces/Ports

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

1.8"

Depth:

8.7"

Weight (Approximate):

2.30 lb

Miscellaneous

Additional Information:

Wi-Fi Multimedia (WMM)
Cisco Unified Wireless Network Software Release 5.2 or later

Warranty

Limited Warranty:

90 Day

Item Numbers

GTIN: 0882658245978

UPC: 882658245978

EAN: 0882658245978

UNSPSC: 43222631

Reviews

Q&A

Questions? Get Help from
a Mobile Expert!

The Cisco AIR-LAP1141N-A-K9 Access Point is also known as CSC-AIRLAP1141NAK9
