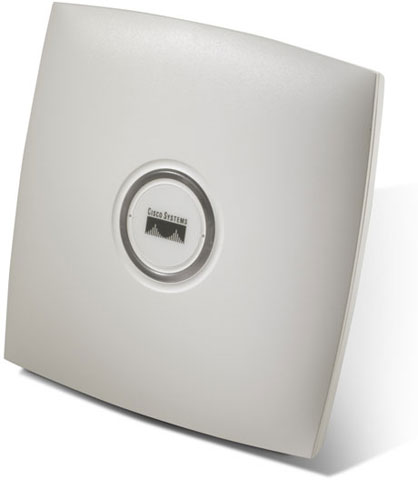

Cisco AIR-LAP1131AG-A-K9 Access Point


0.0

(No reviews)

Be the first to

Write a Review
Cisco Aironet 1130AG Series - 1130AG Series 802.11 Access Point (802.11ag LWAPP AP Integrated Antennas FCC Config)

The Cisco Aironet 1130AG Series packages high capacity, high security, and enterprise-class features delivering WLAN access for a low total cost of ownership. Designed for WLAN coverage in offices and similar RF environments, this unobtrusive access point features integrated antennas and dual IEEE 802.11a/g radios for robust and predictable coverage, delivering a combined capacity of 108 Mbps. The competitively priced Cisco Aironet 1130AG Series is ready to install and easy to manage, reducing the cost of deployment and ongoing maintenance.

Technical Information

  • Wireless LAN Standard:
    • IEEE 802.11a/b/g
    • IEEE 802.11a/b/g
  • ISM Band:
    • Yes
    • Yes
  • UNII Band:
    • Yes
    • Yes
  • Indoor Antenna Range:
    • 450 ft
    • 450 ft
  • Outdoor Antenna Range:
    • 950 ft
    • 950 ft
  • ISM Minimum Frequency:
    • 2.41 GHz
    • 2.41 GHz
  • UNII Minimum Frequency:
    • 5.15 GHz
    • 5.15 GHz
  • Antenna Gain:
    • 3 dBi
    • 4.5 dBi
    • 3 dBi
    • 4.5 dBi
  • Antenna Type:
    • Omnidirectional Antenna
    • Omnidirectional Antenna
  • Total Number of Antennas:
    • 2
    • 2
  • Wireless Transmission Speed:
    • 108 Mbps
    • 108 Mbps
  • ISM Maximum Frequency:
    • 2.40 GHz
    • 2.40 GHz
  • UNII Maximum Frequency:
    • 5 GHz
    • 5 GHz
  • Wireless Security:
    • WPA
    • WPA2 (802.11i)
    • IEEE 802.11 WEP
    • 802.1X EAP
    • WPA
    • WPA2 (802.11i)
    • IEEE 802.11 WEP
    • 802.1X EAP

General Information

  • Product Type:
    • Wireless Access Point
    • Wireless Access Point
  • Product Series:
    • 1100
    • 1100
  • Brand Name:
    • Cisco
    • Cisco-IMSourcing
  • Manufacturer:
  • Product Model:
    • 1131AG
    • 1131AG
  • Product Name:
    • Aironet 1131AG Wireless Access Point
    • Aironet 1131AG Wireless Access Point
  • Product Line:
    • Aironet
    • Aironet

Physical Characteristics

  • Height:
    • 7.5"
    • 7.5"
  • Depth:
    • 1.3"
    • 1.3"
  • Weight (Approximate):
    • 1.50 lb
    • 1.50 lb

Interfaces/Ports

  • Fast Ethernet Port:
    • Yes
    • Yes
  • Number of Network (RJ-45) Ports:
    • 1
    • 1
  • Ethernet Port: Yes
  • Gigabit Ethernet Port: No
  • 10Gigabit Ethernet Port: No
  • PoE (RJ-45) Port: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Package Contents:
    • Cisco Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point
    • Mounting hardware kit
    • 1 x mounting plate
    • 2 x suspended ceiling adjustable T-rail clips (accomodates standard and recessed T-rails)
    • 1 x security hasp adapter
    • 4 x flat head Phillips machine screws
    • 1 x pan head Phillips machine screw
    • 2 x plastic wall anchors
    • 2 x pan head screws
    • Product quick start guide
    • Translated safety warnings document
    • Cisco product registration and Cisco documentation feedback cards
    • Cisco Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point
    • Mounting hardware kit
    • 1 x mounting plate
    • 2 x suspended ceiling adjustable T-rail clips (accomodates standard and recessed T-rails)
    • 1 x security hasp adapter
    • 4 x flat head Phillips machine screws
    • 1 x pan head Phillips machine screw
    • 2 x plastic wall anchors
    • 2 x pan head screws
    • Product quick start guide
    • Translated safety warnings document
    • Cisco product registration and Cisco documentation feedback cards
    • Aironet 1131AG Wireless Access Point
    • Mounting Hardware Kit
    • 1 x Mounting Plate
    • 2 x Suspended Ceiling Adjustable T-Rail Clips (Accomodates Standard And Recessed T-Rails)
    • 1 x Security Hasp Adapter
    • 4 x Flat Head Phillips Machine Screws
    • 1 x Pan Head Phillips Machine Screw
    • 2 x Plastic Wall Anchors
    • 2 x Pan Head Screws
    • Product Quick Start Guide
    • Translated Safety Warnings Document
    • Cisco Product Registration And Cisco Documentation Feedback Cards
    • Aironet 1131AG Wireless Access Point
    • Mounting Hardware Kit
    • 1 x Mounting Plate
    • 2 x Suspended Ceiling Adjustable T-Rail Clips (Accomodates Standard And Recessed T-Rails)
    • 1 x Security Hasp Adapter
    • 4 x Flat Head Phillips Machine Screws
    • 1 x Pan Head Phillips Machine Screw
    • 2 x Plastic Wall Anchors
    • 2 x Pan Head Screws
    • Product Quick Start Guide
    • Translated Safety Warnings Document
    • Cisco Product Registration And Cisco Documentation Feedback Cards
  • Certifications & Standards:
    • Wi-fi
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
    • NIST FIPS
    • RSS-210 (Canada)
    • RSS-102
    • EMI and susceptibility (Class B)
    • ICES-003 (Canada)
    • WPA2
    • WPA
    • IEEE 802.1X
    • IEEE 802.11i
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • FCC Part 15.107 and 15.109
    • FCC Bulletin OET-65C
    • FCC Part 15.247, 15.407
    • FCC Part 15.247, 15.407
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
    • NIST FIPS
    • RSS-210 (Canada)
    • RSS-102
    • EMI and susceptibility (Class B)
    • ICES-003 (Canada)
    • IEEE 802.1X
    • IEEE 802.11i
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • FCC Part 15.107 and 15.109
    • FCC Bulletin OET-65C
    • FCC Part 15.247, 15.407
    • FCC Part 15.247, 15.407
  • Additional Information:
    • For Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point a WLAN controller is required
    • Lightweight Access Point Protocol (LWAPP):
    • Automatically detects the best available Cisco wireless LAN controller to download appropriate policies and configuration information with no hands-on intervention.
    • Antennas Frequency Band:
    • 2.4 GHz
    • 5 GHz

Management & Protocols

  • Management:
    • BootP
    • Secure Shell (SSH) Protocol
    • Secure HTTP (HTTPS)
    • Trivial File Transfer Protocol (TFTP)
    • FTP
    • Telnet
    • Console port
    • Simple Network Management Protocol (SNMP) MIB I and MIB II
    • CiscoWorks Resource Manager Essentials (RME)
    • CiscoWorks Software Image Manager (SWIM)
    • CiscoWorks Campus Manager
    • CiscoWorks CiscoView
    • CiscoWorks WLSE
    • Telnet
    • SNMP
    • MIB II
    • CiscoWorks Resource Manager Essentials (RME)
    • CiscoWorks Software Image Manager (SWIM)
    • CiscoWorks Campus Manager
    • CiscoWorks CiscoView
    • CiscoWorks WLSE

Warranty

  • Limited Warranty: 1 Year
  • Additional Warranty Information:
    • Product does not ship from original manufacturer
    • Product may not be eligible for original manufacturer warranty, rebates or programs
    • Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
    • Product ships from IMSourcing facility within 2-3 days or from stock
    • Product may ship in non-standard packaging
    • All returns processed directly from IMSourcing
    • Product condition subject to availability
    • Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
    • Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 110 V AC
    • 220 V AC
  • Power Source:
    • Power Supply
    • Power Supply
