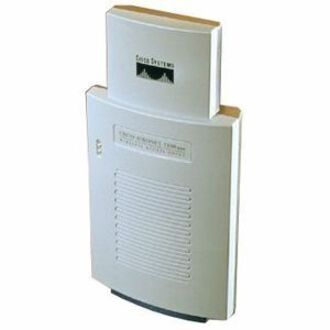

Cisco AIR-LAP1121G-A-K9 Wireless Access Points

Part Number: AIR-LAP1121G-A-K9
Model: Aironet 1100 Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11b/g
ISM Band
Yes
ISM Minimum Frequency
2.41 GHz
ISM Maximum Frequency
2.40 GHz

Product Description:

  Aironet 1100 Series Access Point (802.11g, LWAPP AP, Single MPCI Radio, Internal Antenna and FCC Config)
Explore all Cisco Aironet 1100 Series Wireless Access Points
Add to Quote
Cisco AIR-LAP1121G-A-K9 Wireless Access Points
Cisco AIR-LAP1121G-A-K9 Wireless Access Points
Cisco AIR-LAP1121G-A-K9 Wireless Access Points Cisco AIR-LAP1121G-A-K9 Wireless Access Points
Full specifications (PDF)

Cisco Aironet 1100 Series Wireless Access Points Model Overview

The Cisco Aironet 1100 Series Access Point offers customers an easy-to-install, single-band 802.11g access point that features enterprise-class management, security, and scalability. The device is available in an autonomous or lightweight version and is ideal for deployment in offices and similar environments.
Cisco AIR-LAP1121G-A-K9 Wireless Access Points Overview

The Cisco Aironet 1121G Lightweight Access Point provides a high-speed, secure, affordable, and easy-to-use wireless LAN solution that combines the freedom and flexibility of wireless networking with the features and services required in enterprise networks. The access point offers flexibility and investment protection for wireless networks. When configured with LWAPP, the Cisco Aironet 1121G Lightweight Access Point can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11b/g
ISM Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.40 GHz
Antenna Gain:
2.2 dBi
Antenna Type:
Diversity Dipole Antenna
Indoor Antenna Range:
410 ft
Outdoor Antenna Range:
700 ft
Wireless Transmission Speed:
11 Mbit/s
Wireless Security:
  • 802.11i
  • WPA2
  • WPA
  • 802.1x
  • AES
  • TKIP
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • SNMP Compliance: MIB I and MIB II
  • Quality of Service (QoS)
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Desktop
Height:
8.1"
Depth:
1.5"
Weight (Approximate):
10.50 oz
Miscellaneous
Package Contents:
  • Aironet 1121G Lightweight Access Point
  • Access point power pack
  • Access point mounting bracket
  • Cubical partition mounting bracket assembly
  • Horizontal surface mounting holster
  • Mounting hardware kit
  • Quick start guide
  • Product registration card
Additional Information:
  • When operating as a lightweight access point, a WLAN controller is required
  • Software: Cisco IOS Software Release 12.3(11)JX or later (Lightweight Mode)
  • Wi-Fi Multimedia (WMM)
  • Supports up to 8 BSSIDS for configuration flexibility when segmenting traffic

Network Architecture Type:

  • Infrastructure
  • Star topology
Certifications & Standards:
  • Wi-Fi
  • UL 1950
  • CSA 22.2 No. 950-95
  • IEC 60950
  • EN 60950
  • FCC Part 15.247
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
  • 802.11i, WPA2, WPA
  • 802.1x
  • AES, TKIP
  • Other
  • IEEE 802.11b
  • IEEE 802.11g
  • FCC Bulletin OET-65C
  • RSS-102
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0882658084454
UPC: 882658084454
EAN: 0882658084454
UNSPSC: 43222631
