Cisco AIR-AP1262N-A-K9 Data Networking Device


0.0

(No reviews)

Be the first to

Write a Review

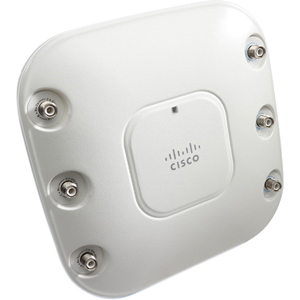

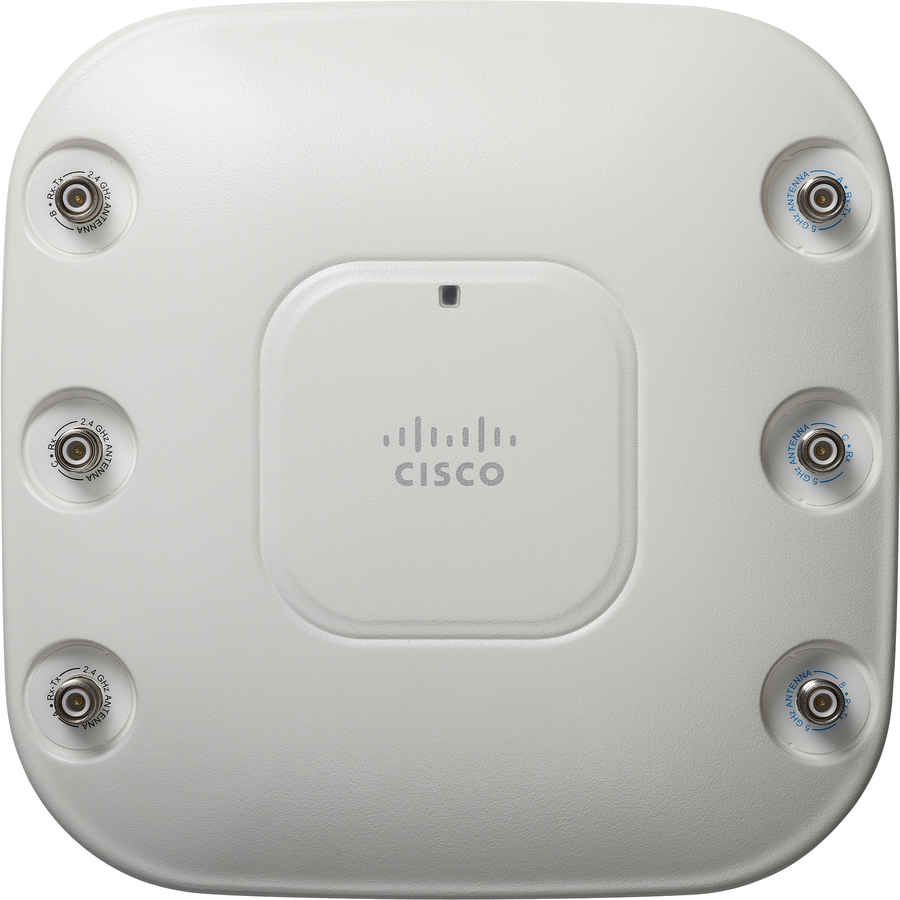

Cisco 1200 Series - 1262 Access Point (802.11a/g/n, Standalone AP, Ext external antenna, A Reg Domain)

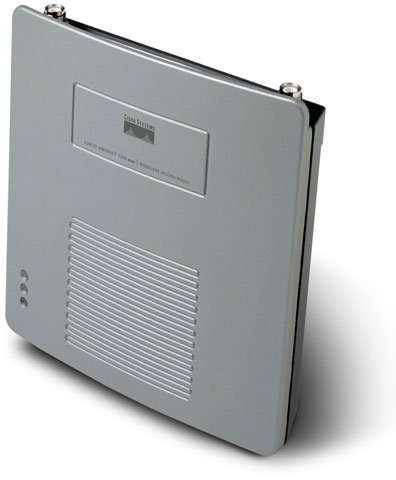

The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.

Technical Information

  • Wireless LAN Standard:
    • IEEE 802.11n
    • IEEE 802.11n
  • ISM Band:
    • Yes
    • Yes
  • UNII Band:
    • Yes
    • Yes
  • ISM Minimum Frequency:
    • 2.41 GHz
    • 2.14 GHz
  • UNII Minimum Frequency:
    • 5.18 GHz
    • 5.18 GHz
  • Wireless Transmission Speed:
    • 300 Mbps
    • 300 Mbps
  • ISM Maximum Frequency:
    • 2.46 GHz
    • 2.46 GHz
  • UNII Maximum Frequency:
    • 5.83 GHz
    • 5.83 GHz
  • Features:
    • MIMO Technology
    • MIMO Technology
  • Wireless Security:
    • WPA2
    • WPA
    • AES
    • TKIP
    • EAP-TLS
    • MSCHAPv2
    • EAP-MSCHAPv2
    • EAP-FAST
    • WPA2
    • WPA
    • AES
    • TKIP
    • EAP-TLS
    • MSCHAPv2
    • EAP-MSCHAPv2
    • EAP-FAST

General Information

  • Product Type:
    • Wireless Access Point
    • Wireless Access Point
  • Product Series:
    • 1260
    • 1260
  • Brand Name:
    • Cisco
    • Cisco-IMSourcing
  • Manufacturer:
  • Product Model:
    • 1262N
    • 1262N
  • Product Name:
    • Aironet 1262N Wireless Access Point
    • Aironet 1262N Wireless Access Point
  • Product Line:
    • Aironet
    • Aironet

Physical Characteristics

  • Height:
    • 1.8"
    • 1.8"
  • Width:
    • 8.7"
    • 8.7"
  • Depth:
    • 8.7"
    • 8.7"
  • Form Factor: Wall Mountable
  • Weight (Approximate):
    • 2.30 lb
    • 2.30 lb

Interfaces/Ports

  • Ethernet Port:
    • Yes
    • Yes
  • Fast Ethernet Port:
    • Yes
    • Yes
  • Gigabit Ethernet Port:
    • Yes
    • Yes
  • Number of Network (RJ-45) Ports:
    • 1
    • 1
  • Management Port:
    • Yes
    • Yes

Other

  • Certifications & Standards:
    • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
    • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300.328
    • EN 301.893
    • ARIB-STD 33
    • ARIB-STD 66
    • ARIB-STD T71
    • AS/NZS 4268.2003
    • EMI and susceptibility (Class B)
    • FCC Part 15.107 and 15.109
    • ICES-003
    • VCCI
    • EN 301.489-1 and -17
    • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
    • IEEE Standard:
    • IEEE 802.11a/b/g
    • IEEE 802.11n
    • IEEE 802.11h
    • IEEE 802.11d
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • Multimedia:
    • Wi-Fi Multimedia
    • Other:
    • FCC Bulletin OET-65C
    • RSS-102
    • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
    • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300.328
    • EN 301.893
    • ARIB-STD 33
    • ARIB-STD 66
    • ARIB-STD T71
    • AS/NZS 4268.2003
    • EMI and susceptibility (Class B)
    • FCC Part 15.107 and 15.109
    • ICES-003
    • VCCI
    • EN 301.489-1 and -17
    • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
    • IEEE
    • 802.11a/b/g
    • 802.11n
    • 802.11h
    • 802.11d
    • 802.3
    • 802.3u
    • 802.3ab
    • Multimedia:
    • Wi-Fi Multimedia
    • Other:
    • FCC Bulletin OET-65C
    • RSS-102

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 110 V AC
    • 220 V AC
  • Power Source:
    • Power Supply
    • Power Supply

Warranty

  • Limited Warranty: Lifetime
