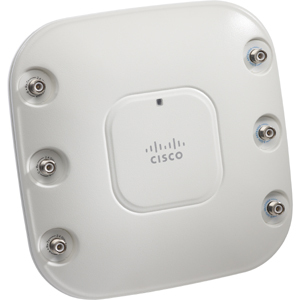

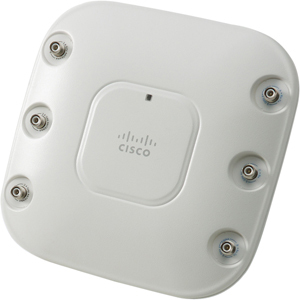

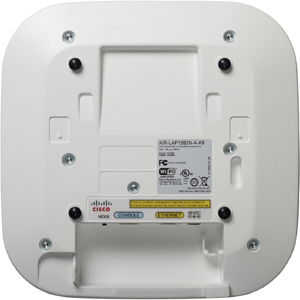

Cisco AIR-AP1261N-A-K9 Access Point

The Cisco AIR-AP1261N-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1200 Series - Cisco Aironet 1261N IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable

This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1200 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

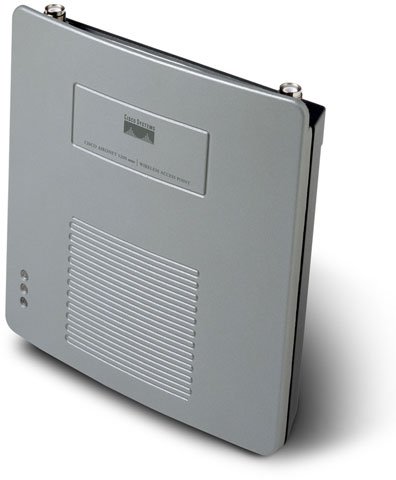

Cisco Aironet 1200 Series Access Point Model Overview

The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.

Cisco AIR-AP1261N-A-K9 Access Point Overview

Cisco Aironet 1260 Series wireless access points provide reliable and predictable 802.11n wireless coverage for indoor environments. These enterprise-class access points deliver up to nine times the throughput of 802.11a/g networks for rich-media applications. Designed specifically for challenging environments, the 1260 Series supports external antennas and a broad operating-temperature range.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA2
WPA
AES
TKIP
EAP-TLS
MSCHAPv2
EAP-MSCHAPv2
EAP-FAST

Features:

MIMO Technology

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

Management Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Wall Mountable

Height:

1.8"

Width:

8.7"

Depth:

8.7"

Weight (Approximate):

2.30 lb

Miscellaneous

Certifications & Standards:

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1

Radio approvals:

FCC Part 15.247, 15.407
RSS-210
EN 300.328
EN 301.893
ARIB-STD 33
ARIB-STD 66
ARIB-STD T71
AS/NZS 4268.2003
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003
VCCI
EN 301.489-1 and -17
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

IEEE 802.11a/b/g
IEEE 802.11n
IEEE 802.11h
IEEE 802.11d
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab

Multimedia:

Wi-Fi Multimedia

Other:

FCC Bulletin OET-65C
RSS-102

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0882658338380

UPC: 882658338380

EAN: 0882658338380

UNSPSC: 43222631
