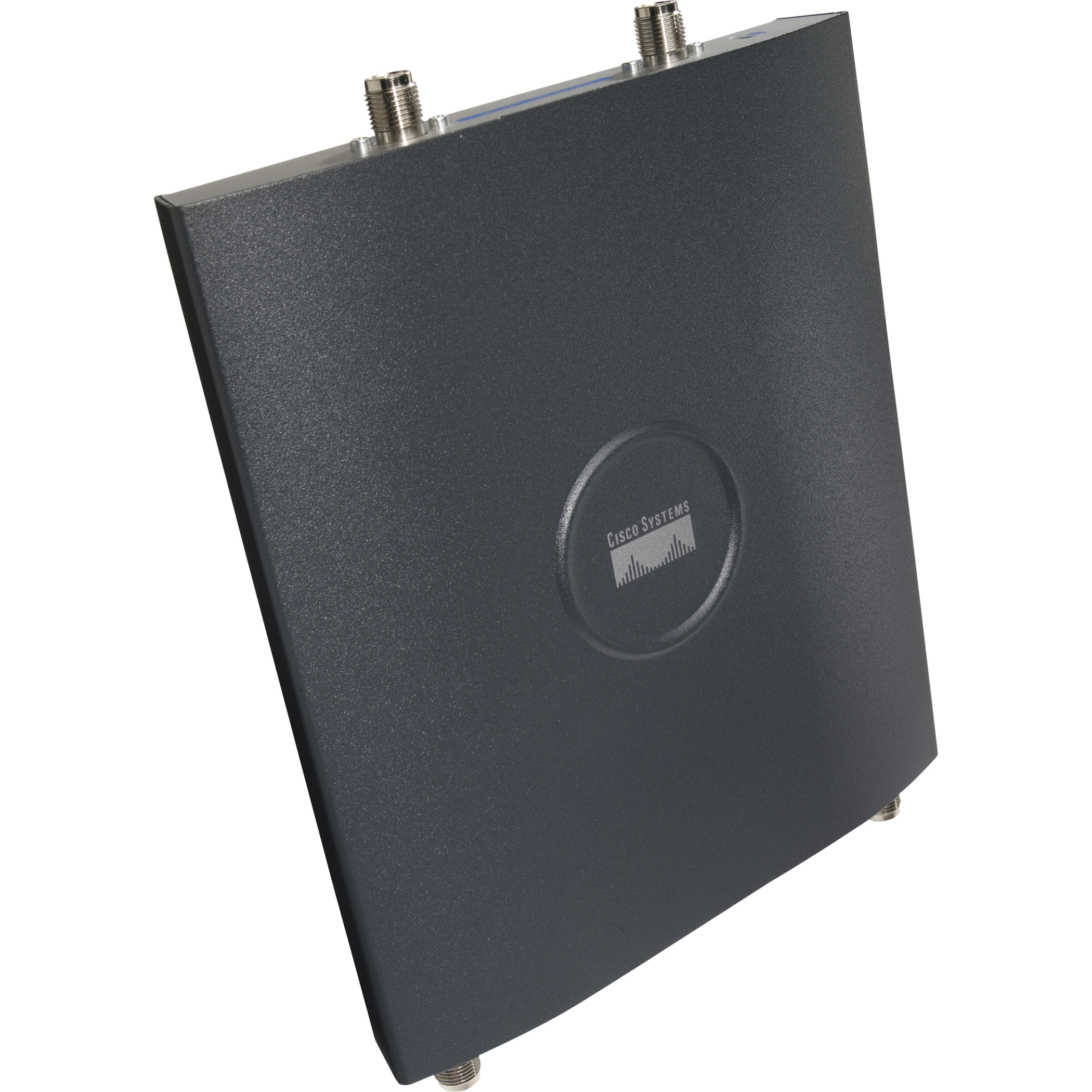

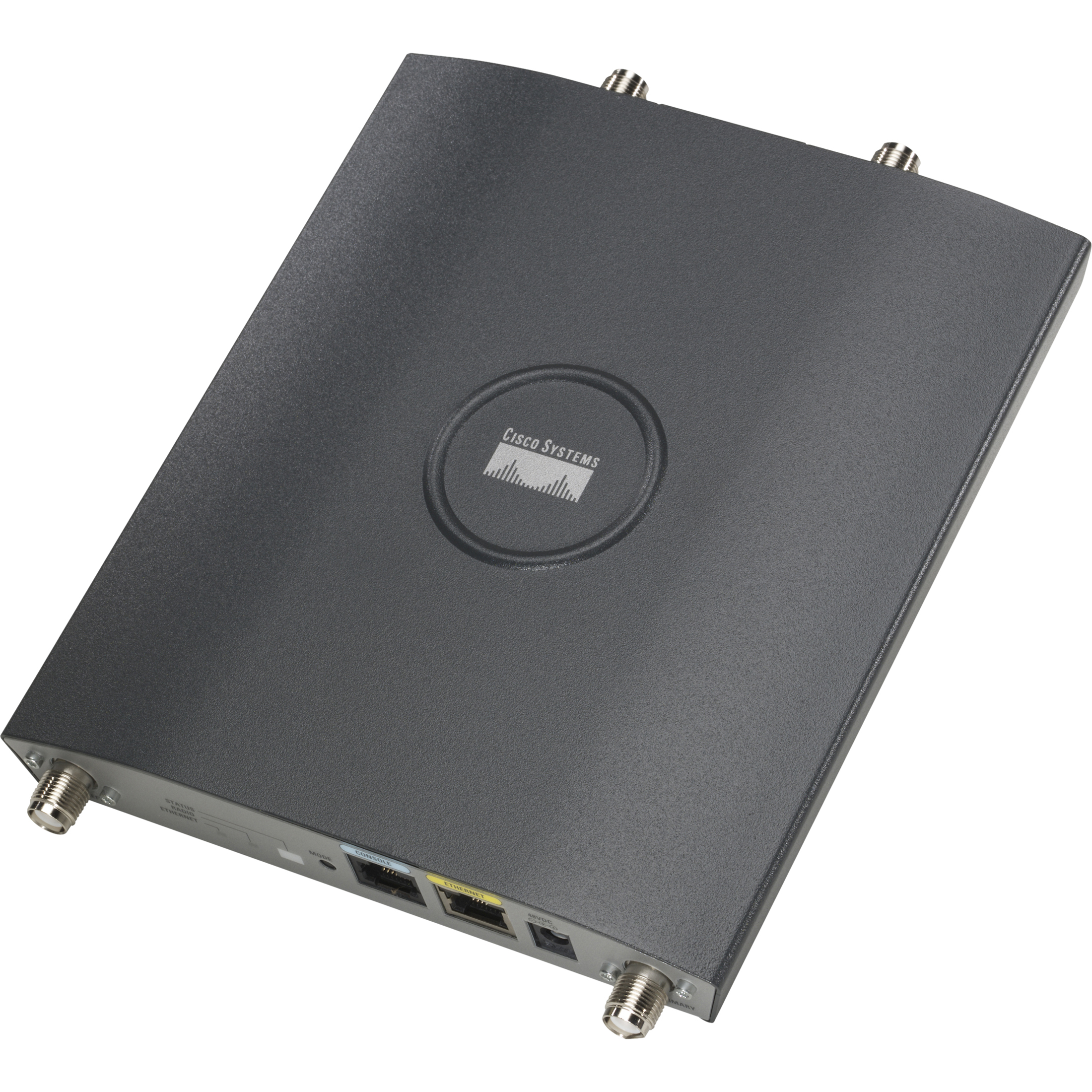

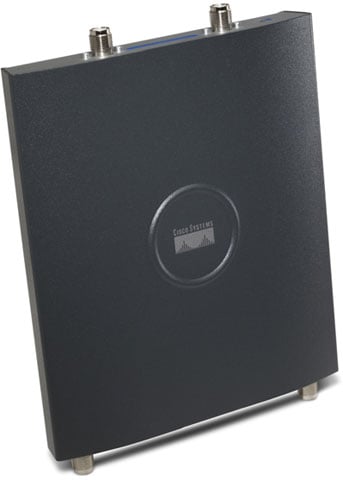

Cisco AIR-AP1242G-A-K9 Access Point

The Cisco AIR-AP1242G-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1240G Series - Cisco Aironet 1242 802.11g Non-modular Access Point - 54Mbps

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
With IEEE 802.11b/g network technology and data transfer rate of up to 54 Mbit/s, enjoy superior HD media playback and lag-free gaming
Link your Wi-Fi traffic to your wired network with Fast Ethernet port

Need a different version? See all Cisco Aironet 1240G Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1240G Series Access Point Model Overview

Cisco Aironet 1240G Series Access Points provide single-band 802.11g wireless connectivity for challenging RF environments such as factories, warehouses, and large retail establishments. Connectorized antennas, a rugged metal enclosure, and a broad operating temperature range offer extended range and coverage versatility. The Cisco Aironet 1240G Series provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE).

Cisco AIR-AP1242G-A-K9 Access Point Overview

Cisco Aironet 1242 802.11g Non-modular Access Point provide single-band 802.11g wireless connectivity for challenging RF environments such as factories, warehouses, and large retail establishments. Connectorized antennas, a rugged metal enclosure, and a broad operating temperature range offer extended range and coverage versatility.
The Cisco Aironet 1242 802.11g Non-modular Access Point is a component of the Cisco Unified Wireless Network, a comprehensive solution that delivers an integrated, end-to-end wired and wireless network. Using the radio and network management features of the Cisco Unified Wireless Network for simplified deployment, the Cisco Aironet 1242 802.11g Non-modular Access Point extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless LAN (WLAN).

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11b/g

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Antenna Connector:

Dual RP-TNC Connector

Indoor Antenna Range:

460 ft

Outdoor Antenna Range:

950 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

WEP encryption length: 40/128-bits
IEEE 802.1x
IEEE 802.11i
WPA
WPA2
TKIP
AES
Extensible Authentication Protocol (EAP)
EAP Flexible Authentication via Secure Tunneling (EAP FAST)
Protected EAP Generic Token Card (PEAP GTC)
PEAP Microsoft Challenge Authentication Protocol Version 2 (PEAP MSCHAP)
EAP Transport Layer Security (EAP TLS)
EAP Tunneled TLS (EAP TTLS)
EAP Subscriber Identity Module (EAP SIM)
LEAP
Advanced Encryption Standard Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (AES CCMP)

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Ceiling Mountable

Height:

1.1"

Depth:

8.5"

Weight (Approximate):

2 lb

Miscellaneous

Additional Information:

IEEE 802.1af PoE support
Range measured with 2.2-dBi dipole antenna for 2.4 GHz

System memory:

32 MB RAM
16 MB flash memory

Certifications & Standards:

IEEE 802.11g
IEEE 802.11b
IEEE 802.1x
IEEE 802.11i
IEEE 802.3af
IEEE 802.3
IEEE 802.3u
RSS-102
Wi-Fi

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1

Radio Approvals:

FCC Part 15.247
RSS-210 (Canada)
EN 300.328 (Europe)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
EN 301.489-1 and -17 (Europe)

Warranty

Limited Warranty:

90 Day

Additional Warranty Information:

Product does not ship from original manufacturer
Product may not be eligible for original manufacturer warranty, rebates or programs
Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
Product ships from IMSourcing facility within 2-3 days or from stock
Product may ship in non-standard packaging
All returns processed directly from IMSourcing
Product condition subject to availability
Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Item Numbers

GTIN: 0882658153921

UPC: 882658153921

EAN: 0882658153921

UNSPSC: 43222631
