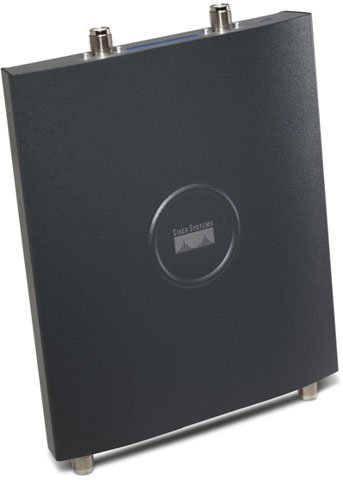

Cisco AIR-AP1242AG-E-K9 Access Point

The Cisco AIR-AP1242AG-E-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Cisco Aironet 1240AG Series - Aironet 1240AG Series Access Point (802.11ag Non-Modular IOS AP; RP-TNC; ETSI Configuration)
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11a/b/g standard and up to 108 Mbit/s data transfer rates, this wireless access point enables efficient network performance
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More
Discontinued Need Assistance?
Add to Quote
Cisco Aironet 1240AG Series Access Point Model Overview
Cisco Aironet 1240AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. Designed specifically for challenging RF environments like factories, warehouses, and large retail establishments it has the versatility associated with connected antennas, a rugged metal enclosure, and a broad operating temperature range. The Aironet 1240AG Series is available in: A lightweight version, an autonomous version that can be field-upgraded to lightweight operation, and a single-band 802.11g version for use in regulatory domains that do not allow 802.11a/5 GHz operation. The Cisco Aironet 1240AG Series comes complete with all the mounting hardware necessary for a secure, rugged installation. The mounting bracket locks the access point as well as the Ethernet and console cables in place to prevent theft and tampering.
Cisco AIR-AP1242AG-E-K9 Access Point Overview

The Aironet 1240AG IEEE 802.11a/g Non-modular Cisco IOS Access Point delivers the versatility, high capacity, security, and enterpriseclass features demanded by WLAN customers. These IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. The Cisco Aironet 1240AG Series provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE).

Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.40 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
4
Antenna Gain:
  • 2.2 dBi
  • 3.5 dBi
Antenna Type:
  • Diversity Dipole Antenna
  • Omnidirectional Antenna
Antenna Connector:
RP-TNC Connector
Indoor Antenna Range:
460 ft
Outdoor Antenna Range:
950 ft
Wireless Transmission Speed:
108 Mbit/s
Wireless Security:
  • UL 60950
  • UL 2043
  • CSA
  • WPA
  • WPA2
  • 802.11i
  • 802.1x
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.1"
Depth:
8.5"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • Aironet 1240AG IEEE 802.11a/g Non-modular Cisco IOS Access Point
  • Mounting hardware kit
  • Quick Start Guide: Cisco Aironet 1240AG Series Access Point
  • Safety Warnings for Cisco Aironet 1240AG Series Access Points
  • Cisco product registration and Cisco documentation feedback cards

Mounting plate:

  • Cable security bracket
  • 2 x suspended ceiling T-rail clips (accommodates standard and recessed T-rails)
  • 1 x security hasp
  • 4 x (6 x 32 x ½ inches) pan head Phillips machine screws
  • 1 x (8 x 18 x ¾ inches) pan head Phillips sheet metal screws
  • 2 x No. 8 plastic wall anchors
  • 1 x (10 x 24) nut (for ground stud on mounting bracket)
  • 4 x rubber foot pads
  • 2 x cable tie wraps
Additional Information:

Channel:

  • 2.412 to 2.472 GHz; 13 channels
  • 5.15 to 5.35 GHz; 8 channels
  • 5.4 to 5.7 GHz; 11 channels
Certifications & Standards:
  • Wi-Fi
  • UL 60950
  • UL 2043
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.3
  • IEEE 802.3af
  • IEEE 802.11i
  • IEEE 802.1x
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0882658022029
UPC: 882658022029
EAN: 0882658022029
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco AIR-AP1242AG-E-K9 Access Point is also known as CSC-AIRAP1242AGEK9 or AIR-AP1242AG-E-K9.
