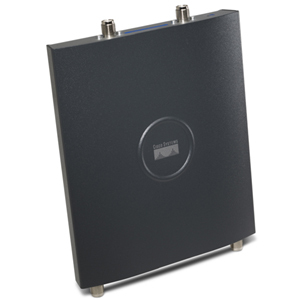

Cisco AIR-AP1242AG-A-K9 Access Point

The Cisco AIR-AP1242AG-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1200 Series - 1242 Access Point (802.11ag Non-Modular IOS AP RP-TNC; FCC Configuration)

With IEEE 802.11a/b/g network technology and data transfer rate of up to 54 Mbit/s, enjoy superior HD media playback and lag-free gaming
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1200 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

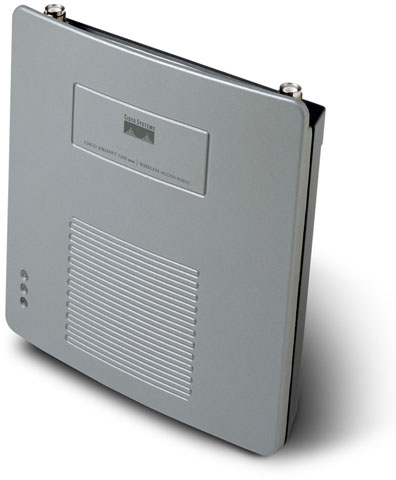

Cisco Aironet 1200 Series Access Point Model Overview

The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.

Cisco AIR-AP1242AG-A-K9 Access Point Overview

Cisco Aironet 1232AG 802.11a/b/g Wireless Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. It extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless infrastructure.

Running Cisco IOS Software, makes the Access Point supports link role flexibility which provides both access point and bridge functionality through configuration of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge. This configuration flexibility enables the Access Point to address applications ranging from basic wireless LAN coverage to wireless LAN coverage with wireless backhaul to more traditional bridging applications. The access point without wired connection will use the 5-GHz radio to wirelessly connect to the other access point for backhaul to the network.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

Frequency Band:

2.41 GHz
5.15 GHz

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.40 GHz

ISM Maximum Frequency:

2.41 GHz

UNII Minimum Frequency:

5 GHz

UNII Maximum Frequency:

5.15 GHz

Total Number of Antennas:

Antenna Gain:

2.2 dBi
3.5 dBi

Antenna Type:

Diversity Dipole Antenna
Omnidirectional Antenna

Antenna Connector:

RP-TNC Connector

Indoor Antenna Range:

460 ft

Outdoor Antenna Range:

950 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

UL 60950
UL 2043
CSA
WPA
WPA2
802.11i
802.1x
TKIP
AES

Data Encryption:

Yes

Encryption Standard:

WEP
AES
WPA2
WPA

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Management Port:

Yes

Management & Protocols

Management:

Telnet
Console port management
Trivial File Transfer Protocol (TFTP)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE
CiscoWorks Wireless LAN Solution Engine (WLSE)
Simple Network Management Protocol (MIB I and MIB II)
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)

Power Description

Input Voltage:

110 V AC
220 V AC
48 V DC

Physical Characteristics

Form Factor:

Desktop
Ceiling Mountable

Height:

1.1"

Depth:

8.5"

Weight (Approximate):

2 lb

Miscellaneous

Package Contents:

Aironet 1242AG 802.11a/b/g Wireless Access Point
Cisco Aironet 1240AG Series Power Module (universal power module)-optional
Quick Start Guide: Cisco Aironet 1240AG Series Access Point
Safety Warnings for Cisco Aironet 1240AG Series Access Points
Cisco product registration and Cisco documentation feedback cards

Mounting hardware kit:

One mounting plate with cable security bracket
Two suspended ceiling T-rail clips, spacers (accommodates standard and recessed T-rails), and nuts
One security hasp
Two 6 x 32 x 1/2 in. pan head Phillips machine screws
Four 8 x 18 x 3/4 in. pan head Phillips sheet metal screws
Four #8 plastic wall anchors
One 10 x 24 nut (for ground stud on mounting bracket)
Four rubber foot pads
Two cable tie wraps

Additional Information:

Software: Cisco IOS Software Release 12.3(7)JA or later
Memory: 32 MB RAM, 16 MB flash
Processor: IBM PowerPC405 (200 MHz)
Two RP-TNC connectors 802.11g or 802.11a approved
Provides Link Role Flexibility when running Cisco IOS Software
Can be powered by 802.3af PoE, Cisco inline power switches, single port power injectors, or local power

Certifications & Standards:

Wi-Fi
UL 60950
UL 2043
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.3
IEEE 802.3af
IEEE 802.11i
IEEE 802.1x

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0882658021961

UPC: 882658021961

EAN: 0882658021961

UNSPSC: 43222631

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Cisco AIR-AP1242AG-A-K9 Access Point is also known as CSC-AIRAP1242AGAK9 or AIR-AP1242AG-A-K9.
