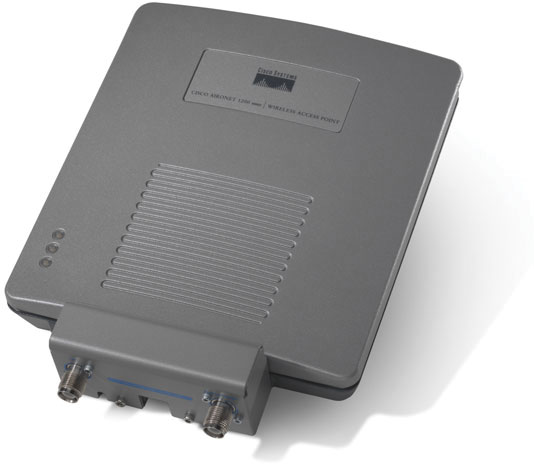

Cisco AIR-AP1232AG-N-K9 Access Point

The Cisco AIR-AP1232AG-N-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1230AG Series - Cisco Aironet 1230AG 802.11a/b/g Access Point - 54Mbps

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network

Need a different version? See all Cisco Aironet 1230AG Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1230AG Series Access Point Model Overview

The Cisco Aironet 1230AG Series delivers the versatility, high capacity, security, and enterprise-class features required in more challenging RF environments. It is designed for wireless LANs in rugged environments or installations that require specialized antennas, and features dual antenna connectors for extended range, coverage versatility, and more flexible installation options. The Cisco Aironet 1230AG Series combines antenna versatility with industry-leading transmit power, receive sensitivity, and delay spread for high multipath and indoor environments, providing reliable performance and throughput for the most demanding requirements.

Cisco AIR-AP1232AG-N-K9 Access Point Overview

The Cisco Aironet AP1232AG Access Point delivers the versatility, high capacity, security, and enterprise-class features required in more challenging RF environments. It is designed for wireless LANs in rugged environments or installations that require specialized antennas, and features dual antenna connectors for extended range, coverage versatility, and more flexible installation options. The Cisco Aironet AP1232AG combines antenna versatility with industry-leading transmit power, receive sensitivity, and delay spread for high multipath and indoor environments, providing reliable performance and throughput for the most demanding requirements.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.40 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5 GHz

Total Number of Antennas:

Antenna Connector:

RP-TNC Connector

Indoor Antenna Range:

500 ft

Outdoor Antenna Range:

950 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

Authentication:

802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
MAC address and standard 802.11 authentication mechanisms

Encryption:

AES-CCMP encryption (WPA2)
TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Power Description

Input Voltage:

110 V AC
220 V AC
48 V DC

Physical Characteristics

Height:

1.7"

Depth:

7.2"

Weight (Approximate):

1.73 lb

Miscellaneous

Additional Information:

Housing:Die-cast aluminum
Processor: IBM PowerPC405 (200 MHz)
Software:Cisco IOS Software Release 12.3(4)JA or later LWAPP 3.1 or later

Memory:

16 MB RAM
8 MB Flash memory

Certifications & Standards:

Wi-Fi
not FCC configuration

Safety:

UL 60950-1
CAN/CSA C22.2 No. 60950-1
IEC 60950-1
EN 60950-1
UL 2043
FIPS 140-2 Pre-Validation List
Common Criteria

Radio Approvals:

FCC Part 15.247
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4771, 4268.2 (Australia and New Zealand)
EMI and Susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
AS/NZS 3548

Security:

WPA2
WPA
802.11i
802.1X
AES
TKIP

Other:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
FCC Bulletin OET-65C
RSS-102

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0000058228395, 0882658013836

UPC: 000058228395, 882658013836

EAN: 0000058228395, 0882658013836

UNSPSC: 43222631

Reviews

Q&A

Get help from a Barcoding Expert!

The Cisco AIR-AP1232AG-N-K9 Access Point is also known as CSC-AIRAP1232AGNK9
