Cisco AIR-AP1232AG-A-K9 Access Point

The Cisco AIR-AP1232AG-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1200 Series - Cisco Aironet 1232AG Wireless Access Point - 500 ft Maximum Indoor Range - 950 ft Maximum Outdoor Range - Fast Ethernet

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11a/b/g technology and speeds up to 54 Mbit/s
Link your Wi-Fi traffic to your wired network with Fast Ethernet port

Need a different version? See all Cisco Aironet 1200 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

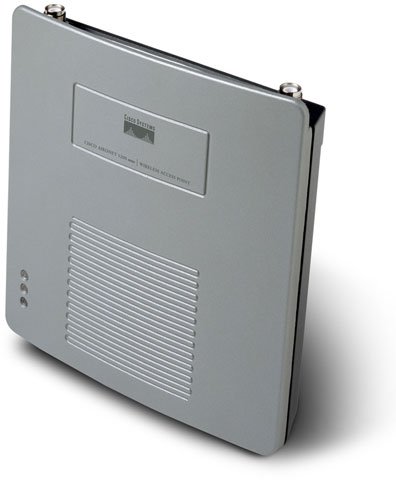

Cisco Aironet 1200 Series Access Point Model Overview

The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.

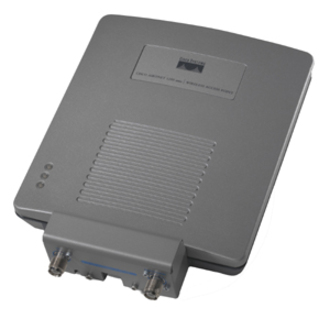

Cisco AIR-AP1232AG-A-K9 Access Point Overview

Cisco Aironet 1230AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.40 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5 GHz

Antenna Connector:

Dual RP-TNC Connector

Indoor Antenna Range:

500 ft

Outdoor Antenna Range:

950 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

WPA
WPA2 (802.11i)
IEEE 802.11 WEP
802.1X EAP

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Management & Protocols

Management:

BootP
Secure Shell (SSH) Protocol
Secure HTTP (HTTPS)
Trivial File Transfer Protocol (TFTP)
FTP
Telnet
console port
Simple Network Management Protocol (SNMP)
MIB I and MIB II
CiscoWorks Resource Manager Essentials (RME)
CiscoWorks Software Image Manager (SWIM)
CiscoWorks Campus Manager
CiscoWorks CiscoView
CiscoWorks WLSE

Power Description

Input Voltage:

110 V AC
220 V AC
48 V DC

Power Consumption:

11 W

Physical Characteristics

Height:

1.6"

Depth:

7.2"

Weight (Approximate):

1.72 lb

Miscellaneous

Package Contents:

Access point power pack
Mounting bracket
Mounting hardware kit
Quick start guide
Product registration card

Additional Information:

Antennas:

2.4 GHz Dual RP-TNC connectors
5 GHz Dual RP-TNC connectors

Certifications & Standards:

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
IEC 60950-1
EN 60950-1
UL 2043
NIST FIPS 140-2 level 2 validation FIPS 140-2 Pre-Validation List
Common Criteria (Cisco IOS Software only)

Radio Approvals:

FCC Part 15.247
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4771, 4268.2 (Australia and New Zealand)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
AS/NZS 3548

Security:

802.11i, WPA2, WPA
802.1X
AES, TKIP

Other:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
FCC Bulletin OET-65C
RSS-102

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43222631
