Cisco AIR-AP1142-AK9-5PR Access Point

The Cisco AIR-AP1142-AK9-5PR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1140 Series - Cisco Aironet AP1142 Access Point - IEEE 802.11n (draft) 300Mbps - 1 x 10/100/1000Base-T Network - 5 Pack

Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
Build a reliable home or business network with this Wireless Access Point, that features IEEE 802.11n technology and speeds up to 300 Mbit/s
Up to 10x faster than standard Ethernet connectivity for your wired network
Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones

Need a different version? See all Cisco Aironet 1140 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

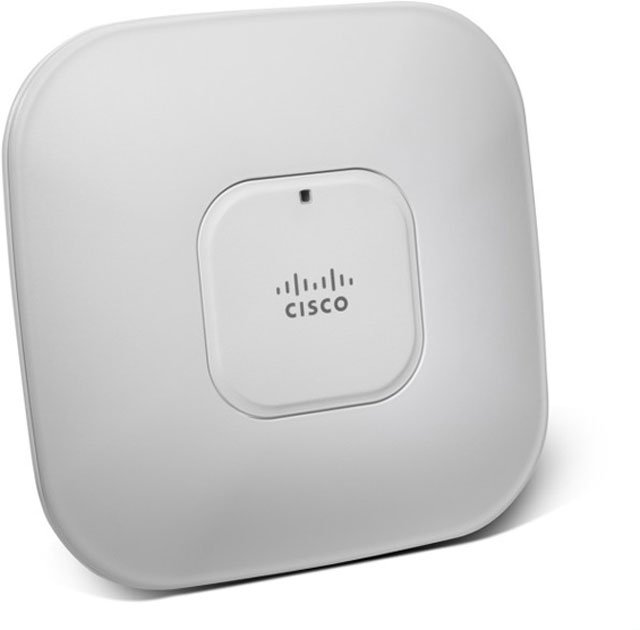

Cisco Aironet 1140 Series Access Point Model Overview

The Cisco Aironet 1140 Series is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet 1140 Series heritage of RF excellence, the Aironet 1140 Series combines the industry's most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment. Designed for sustainability, the 1140 Series delivers high performance from standard 802.3af Power over Ethernet while decreasing waste with multiunit eco-packs and Energy Star certified power supplies.

Cisco AIR-AP1142-AK9-5PR Access Point Overview

The Cisco Aironet AP1142 Access Point is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet heritage of RF excellence, AP1142 combines the industry's most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.70 GHz

Antenna Gain:

4 dBi
3 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA2
TKIP
EAP-TLS
EAP-TTLS
EAP-MSCHAPv2
EAP-FAST
EAP-SIM
EAP-GTC
PEAP

Interfaces/Ports

Ethernet Technology:

Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Management & Protocols

Management:

Radio resource management (RRM)

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

1.8"

Depth:

8.7"

Weight (Approximate):

2.30 lb

Miscellaneous

Additional Information:

2x3 multiple-input multiple-output (MIMO) with two spatial streams
Maximal ratio combining (MRC)
Legacy beamforming (hardware supports this capability, not yet enabled in software)
802.11 dynamic frequency selection (DFS) (Bin 5)
Cyclic shift diversity (CSD) support

Warranty

Limited Warranty:

90 Day

Item Numbers

GTIN: 0882658306662

UPC: 882658306662

EAN: 0882658306662

UNSPSC: 43222631

Reviews

Q&A

Get help from a Barcoding Expert!

The Cisco AIR-AP1142-AK9-5PR Access Point is also known as CSC-AIRAP1142AK95PR
