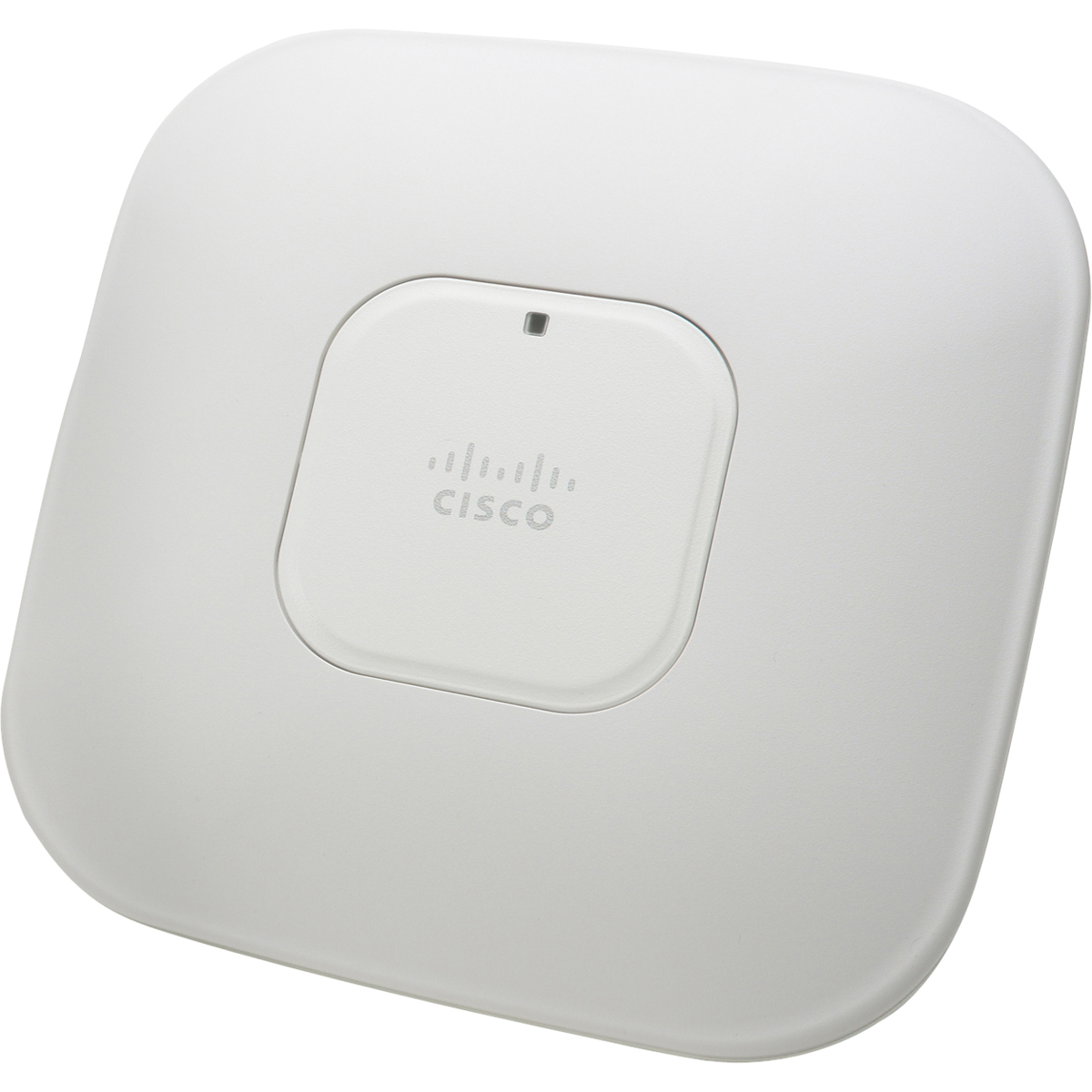

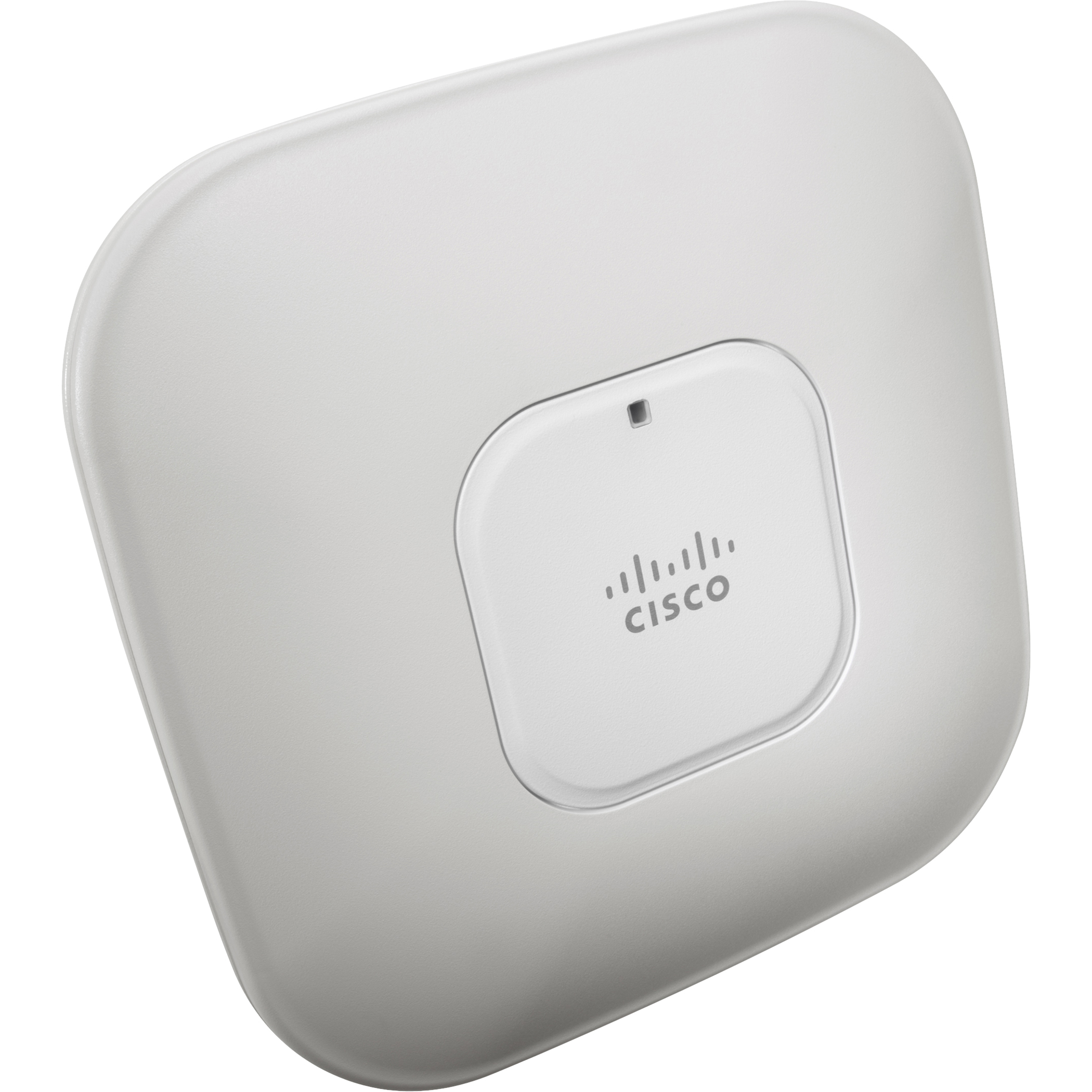

Cisco AIR-AP1141N-A-K9 Access Point

The Cisco AIR-AP1141N-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1140 Series - Cisco Aironet 1141N Access Point - IEEE 802.11n (draft) 300Mbps - 1 x 10/100/1000Base-T Network

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
Up to 10x faster than standard Ethernet connectivity for your wired network
With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1140 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

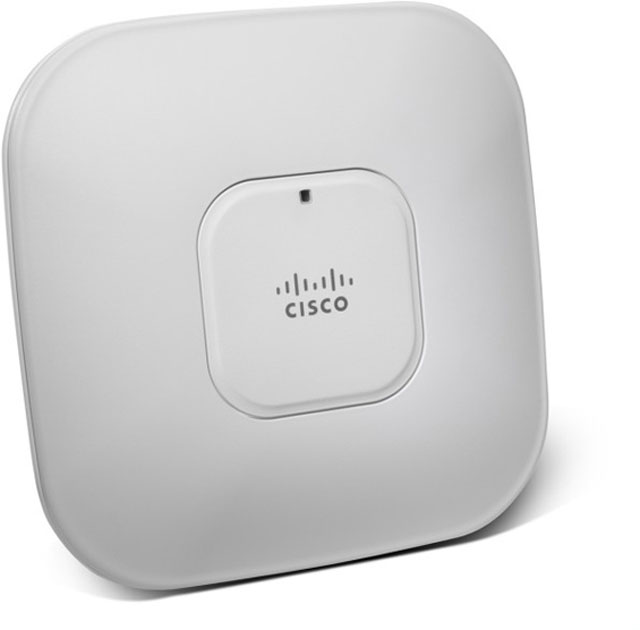

Cisco Aironet 1140 Series Access Point Model Overview

The Cisco Aironet 1140 Series is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet 1140 Series heritage of RF excellence, the Aironet 1140 Series combines the industry's most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment. Designed for sustainability, the 1140 Series delivers high performance from standard 802.3af Power over Ethernet while decreasing waste with multiunit eco-packs and Energy Star certified power supplies.

Cisco AIR-AP1141N-A-K9 Access Point Overview

The Cisco Aironet 1141N Access Point is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet heritage of RF excellence, 1141N combines the industry's most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Antenna Gain:

4 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA2
TKIP
PEAP
EAP-TLS
EAP-TTLS
EAP-MSCHAPv2
EAP-FAST
EAP-SIM
EAP-GTC

Interfaces/Ports

Ethernet Technology:

Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

1.8"

Depth:

8.7"

Weight (Approximate):

2.30 lb

Miscellaneous

Additional Information:

Cisco 1140 Series IOS Wireless LAN (S114W7K9-12421JA)

Warranty

Limited Warranty:

90 Day

Item Numbers

GTIN: 0882658245954

UPC: 882658245954

EAN: 0882658245954

UNSPSC: 43222631

Reviews

Q&A

Get help from a Barcoding Expert!

The Cisco AIR-AP1141N-A-K9 Access Point is also known as CSC-AIRAP1141NAK9
