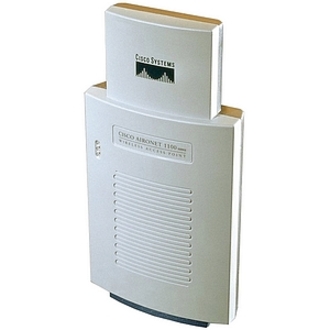

Cisco AIR-AP1121G-A-K9 Access Point

The Cisco AIR-AP1121G-A-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1100 Series - Cisco Aironet 1100 Access Point - 54Mbps - 1 x 10/100Base-TX

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
With IEEE 802.11b/g standard and up to 54 Mbit/s data transfer rates this Wireless Access Point, enables efficient network performance
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network

Need a different version? See all Cisco Aironet 1100 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1100 Series Access Point Model Overview

The Cisco Aironet 1100 Series Access Point offers customers an easy-to-install, single-band 802.11g access point that features enterprise-class management, security, and scalability. The device is available in an autonomous or lightweight version and is ideal for deployment in offices and similar environments.

Cisco AIR-AP1121G-A-K9 Access Point Overview

The Cisco Aironet 1100 Series Access Point provides a high-speed, secure, affordable, and easy-to-use wireless LAN solution that combines the freedom and flexibility of wireless networking with the features and services required in enterprise networks. The Cisco Aironet 1100 Series supports a single radio and is available in an IEEE 802.11g version.

The access point offers flexibility and investment protection for wireless networks. With the IEEE 802.11g version, users can enjoy up to 54 Mbps data rates while maintaining full backward compatibility with legacy 802.11b devices. Administrators can configure the access point to support both 802.11g and legacy 802.11b clients for investment protection or, for higher performance, it may be configured to support only 802.11g clients. The Cisco Wireless Security Suite provides the strongest enterprise security solution available while the Cisco IOS Software operating system delivers enterprise-class services with a familiar user interface. The Cisco Aironet 1100 Series also features integrated diversity dipole antennas and an innovative mounting system for easy installation and reliable coverage in a variety of locations and orientations.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11b/g

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.40 GHz

Antenna Gain:

2.2 dBi

Antenna Type:

Diversity Dipole Antenna

Indoor Antenna Range:

410 ft

Outdoor Antenna Range:

700 ft

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

Authentication:

802.1X support including LEAP, PEAP, EAP-TLS, EAP-TTLS and EAP-SIM to yield mutual authentication and dynamic, per-user, per-session WEP keys
MAC address and by standard 802.11 authentication mechanisms
Supports Wi-Fi Protected Access (WPA)

Encryption:

Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
Pre-standard TKIP WEP enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation
Supports Wi-Fi Protected Access (WPA)

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Management & Protocols

Management:

CiscoWorks
CiscoView
Resource Manager Essentials
Campus Manager
Telnet
SNMP

Power Description

Input Voltage:

110 V AC
220 V AC

Power Consumption:

4.90 W

Physical Characteristics

Form Factor:

Wall Mountable
Ceiling Mountable

Height:

8.1"

Depth:

1.5"

Weight (Approximate):

10.50 oz

Miscellaneous

Package Contents:

Cisco Aironet 1100 Series Access point power pack
Wall or ceiling mounting bracket
Security hasp adapter
Cubical partition mounting bracket assembly
Horizontal surface mounting holster
Mounting hardware kit
Product registration card
S11W7K9-12213JA: Cisco 1100 Series IOS Wireless LAN

Additional Information:

Uplink: Autosensing 802.3 10/100BaseT Ethernet
Network architecture type: Infrastructure, star topology

Certifications & Standards:

Wi-Fi
FCC configuration

Safety:

UL 60950
UL 2043
CSA 22.2 No. 950-95
IEC 60950- EN 60950

Radio Approvals:

FCC Part 15.247
RSS-139-1, RSS-210 (Canada)
EN 300.328 (Europe)
Telec 33 (Japan)
AS/NZ 3548 (Australia and New Zealand)

EMI and Susceptibility (Class B):

FCC Par 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)

Other:

IEEE 802.11b
FCC Bulletin OET-65C
RSS-102

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0746320862613, 5051964019855

UPC: 746320862613

EAN: 0746320862613, 5051964019855

UNSPSC: 43222631

Reviews

Q&A

Accessories

Get help from a Barcoding Expert!

The Cisco AIR-AP1121G-A-K9 Access Point is also known as CSC-AIRAP1121GAK9 or AIR-AP1121G-A-K9.
