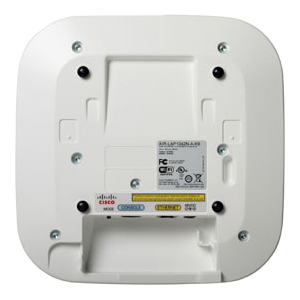

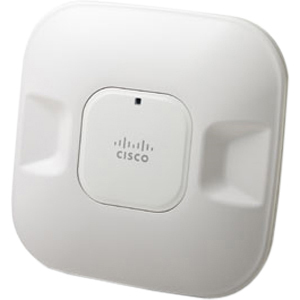

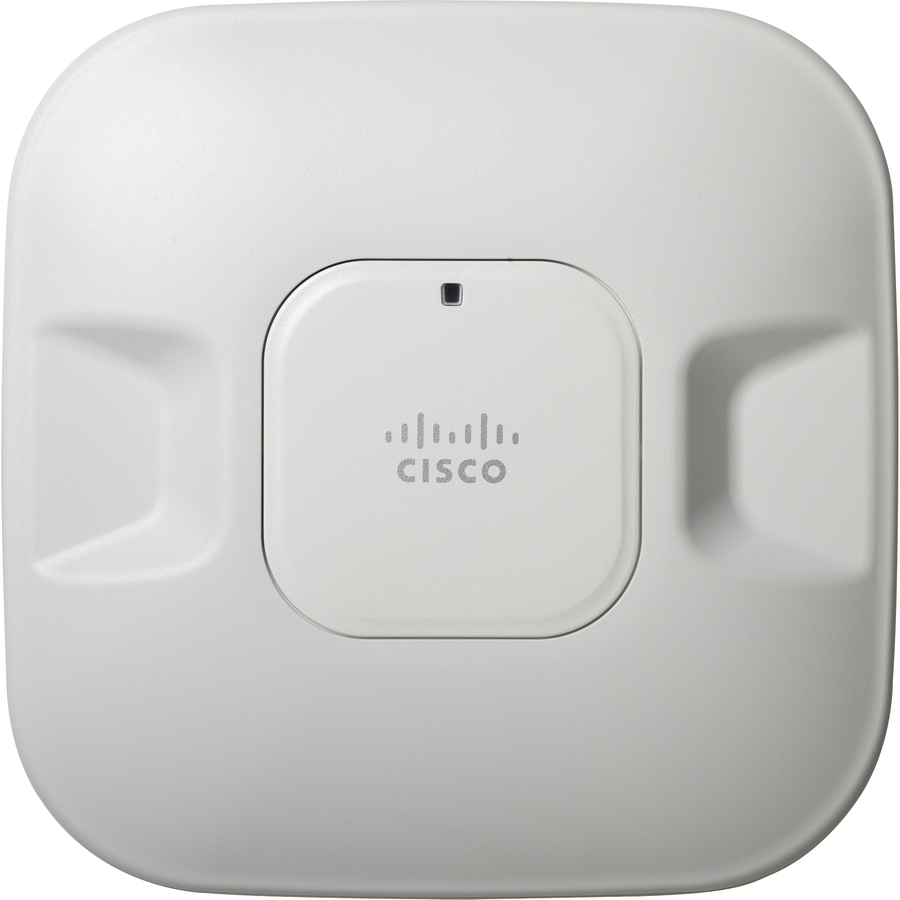

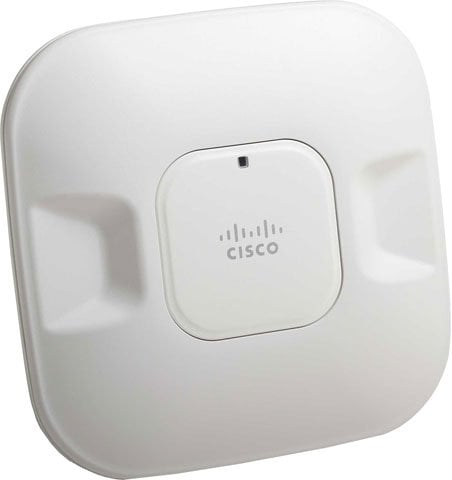

Cisco AIR-AP1041N-A-K9 Access Point

A newer version of this item is available.
It is replaced by the Cisco AIR-SAP1602I-A-K9 Access Point.

Cisco Aironet 1040 Series - Cisco Aironet 1041N IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Cisco Aironet 1040 Series Access Points

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1040 Series Access Point Model Overview

The Cisco Aironet 1040 Series Access Point is an enterprise-class, entry-level 802.11n access point designed to address the wireless connectivity needs of small and medium-sized enterprises. With 2x2 multiple-input multiple-output (MIMO) technology providing at least six times the throughput of existing 802.11a/g networks, the Cisco Aironet 1040 Series offers the performance advantage of 802.11n enterprise-class quality at an entry-level price for small and medium-sized enterprises. As part of the Cisco Unified Wireless Network, the Aironet 1040 Series provides low total cost of ownership and investment protection by integrating seamlessly with the existing network.

Cisco AIR-AP1041N-A-K9 Access Point Overview

Designed for sustainability, the Cisco Aironet 1040 Series offers 802.11n performance with standard 802.3af Power over Ethernet (PoE). At only 12.95 watts of power, the 1040 Series combines the power of dual-radio 802.11n with the efficiency of standard PoE. The sleek industrial design of the 1040 Series blends seamlessly into any indoor enterprise environment.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Antenna Gain:

4 dBi

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA 2
AES
TKIP
TTLS
EAP-TLS
MSCHAP v2
EAP
PEAP
EAP-MSCHAP v2
EAP-FAST

Features:

MIMO Technology

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Wall Mountable

Height:

1.8"

Width:

8.7"

Depth:

8.7"

Weight (Approximate):

2.29 lb

Miscellaneous

Certifications & Standards:

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1

Radio approvals:

FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

IEEE 802.11b/g
IEEE 802.11n
IEEE 802.11h
IEEE 802.11d
IEEE 802.1x
IEEE 802.11i

Other:

FCC Bulletin OET-65C
RSS-102

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0882658343544

UPC: 882658343544

EAN: 0882658343544

UNSPSC: 43222631
