Application/Usage:
- Data Networking
- Optical Network
Cisco A99-4HG-FLEX-TR Switch Network Module
Part Number:
A99-4HG-FLEX-TR
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.

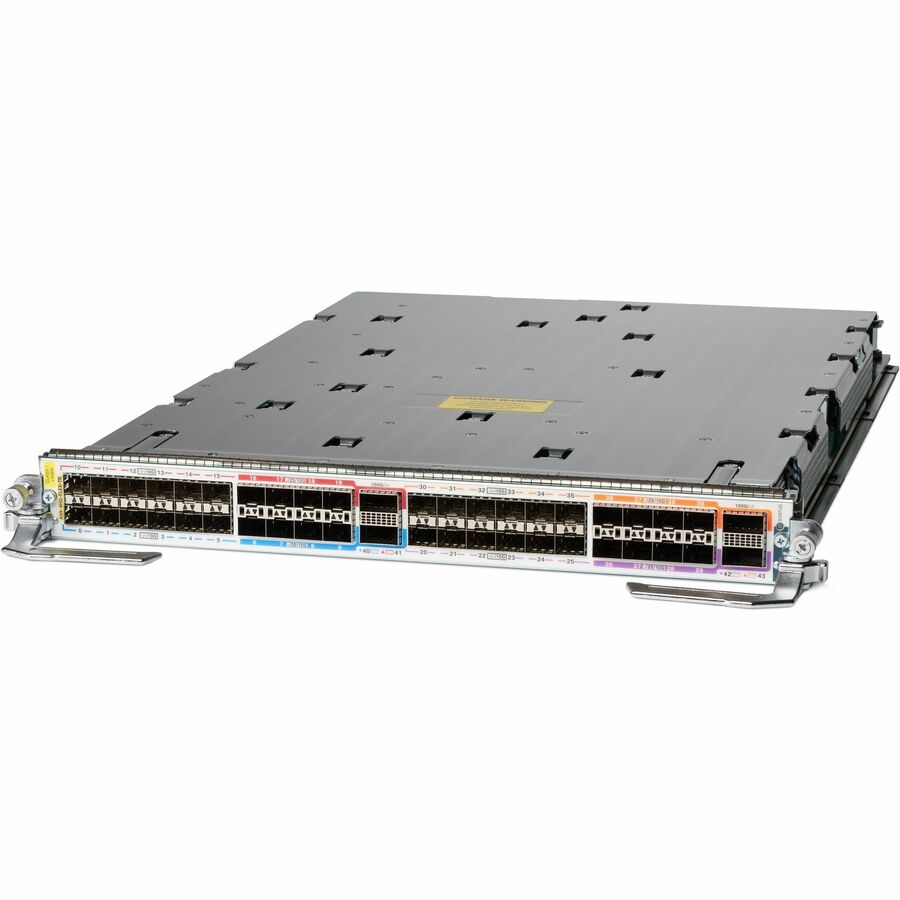

Cisco A99-4HG-FLEX-TR Switch Network Module Overview
The Cisco ASR 9000 Series 5thGeneration 400 Gigabit Ethernet Multi-Rate Line Card delivers industry-leading high density, with line-rate 10, 25, 40, and 100 Gigabit Ethernet ports, to any slot of a Cisco ASR 9000 Series Aggregation Services Router. This Multi-Rate line card is designed to remove bandwidth bottlenecks in the network that are caused by a large increase in Video-on-Demand (VoD), IPTV, point-to-point video, internet video, and cloud services traffic. The physical interfaces support QSFP28, SFP28, QSFP+, SFP+ optics, giving customers the flexibility to mix and match interface types on the same line card.
Technical Information
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
- 100 Gigabit Ethernet
- 25 Gigabit Ethernet
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 100GBase-X
- 40GBase-X
- 10GBase-X
- 25GBase-X
I/O Expansions
Total Number of Expansion Slots:
44
Expansion Slot Type:
- QSFP28
- SFP28
- SFP+
Expansion Slot Details:
- 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28
- 16 x 10Gb Ethernet/25Gb Ethernet - SFP28
- 24 x 10Gb Ethernet - SFP+
Environmental Conditions
Minimum Operating Temperature:
41°F (5°C)
Maximum Operating Temperature:
104°F (40°C)
Physical Characteristics
Color Family:
White
Product Color:
White
Form Factor:
Plug-in Module
Height:
1.7"
Width:
15.9"
Depth:
24"
Weight (Approximate):
18.74 lb
Miscellaneous
Compatibility:
Cisco:
- ASR-9006-MIG-KIT
- ASR-9006-SYS
- ASR-9006-SYS=
- ASR-9006-SYS-RF
- ASR-9006-SYS-WS
- ASR-9010-MIG-KIT
- ASR-9010-SYS
- ASR-9010-SYS=
- ASR-9010-SYS-RF
- ASR-9010-SYS-WS
- ASR-9904
- ASR-9904=
- ASR-9904-LS-BUN
- ASR-9904-MIG-KIT
- ASR-9904-RF
- ASR-9904-WS
- ASR-9906
- ASR-9906=
- ASR-9906-LS-BUN
- ASR-9906-MIG-KIT
- ASR-9906-RF
- ASR-9906-WS
- ASR-9910
- ASR-9910=
- ASR-9910-LS-BUN
- ASR-9910-MIG-KIT
- ASR-9910-RF
- ASR-9910-WS
- ASR-9912
- ASR-9912=
- ASR-9912-LS-BUN
- ASR-9912-MIG-KIT
- ASR-9912-RF
- ASR-9922
- ASR-9922=
- ASR-9922-LS-BUN
- ASR-9922-MIG-KIT
- ASR-9922-RF
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43201553
The Cisco A99-4HG-FLEX-TR Switch Network Module is also known as
CSC-A994HGFLEXTR
