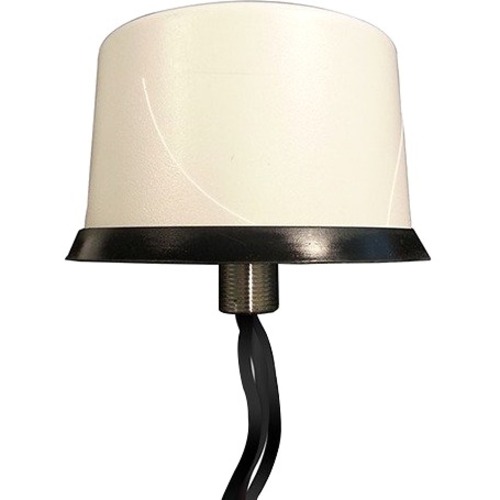

Cisco 4G-LTE-ANTM-O-3-W= Antenna

Part Number: 4G-LTE-ANTM-O-3-W=
Model:
Add to My Shopping List Add to Compare
$1,358.60
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Directivity
Omni-directional
Frequency Band Type
UHF
Operating Frequency Range
698 MHz to 960 MHz1710 MHz to 2700 MHz1575.42 MHz
Antenna Gain (Isotropic)
2.5 dBi

Product Description:

  Antennas, Cisco, Cisco Dual LTE-Single GPS Multi-band Antenna, Range, UHF, 698 MHz to 960 MHz, 1710 MHz to 2700 MHz, 1575.42 MHz, 2.5 dBi, GPS, Outdoor, Cellular Network, White, Omni-directional, SMA Connector
Explore all Cisco Parts Accessories
Add to Quote
Cisco 4G-LTE-ANTM-O-3-W= Antenna
Cisco 4G-LTE-ANTM-O-3-W= Antenna
Cisco 4G-LTE-ANTM-O-3-W= Antenna Cisco 4G-LTE-ANTM-O-3-W= Antenna

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco 4G-LTE-ANTM-O-3-W= Antenna Overview
Deciding which antenna to use involves multiple factors, such as coverage area, maximum distance, indoor location, outdoor location, and antenna height.

When an antenna is used indoors, the building construction, ceiling height, and internal obstructions must be considered. In outdoor environments, obstructions such as trees, vehicles, buildings, and hills must be considered. Distance is the primary factor when using outdoor-wireless communications. However, coverage area also becomes important when you use wireless client devices to communicate with a wireless device.

Technical Information
Directivity:
Omni-directional
Frequency Band Type:
UHF
Operating Frequency Range:
  • 698 MHz to 960 MHz
  • 1710 MHz to 2700 MHz
  • 1575.42 MHz
Antenna Gain (Isotropic):
2.5 dBi
Impedance:
50 Ohm
Polarization:
  • Vertical
  • Linear
Cable Length:
4 ft
Features:
Amplification
Interfaces/Ports
Number of Connectors:
3
Connector Type:
SMA
USB:
No
Physical Characteristics
Color Family:
White
Product Color:
White
Height:
3.54"
Diameter:
5.39"
Miscellaneous
Application/Usage:
  • GPS
  • Outdoor
  • Cellular Network
Package Contents:
  • Dual LTE-Single GPS Multi-band Antenna
  • 2 x SMA-Female to TNC-Male Adapters
  • 4-foot Dongle
  • Installation Guide
Compatibility:
Cisco 819 4G LTE ISR Router
Certifications & Standards:
IP67
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Item Numbers
UNSPSC: 43221706
The Cisco 4G-LTE-ANTM-O-3-W= Antenna is also known as CSC-4GLTEANTMO3W=
