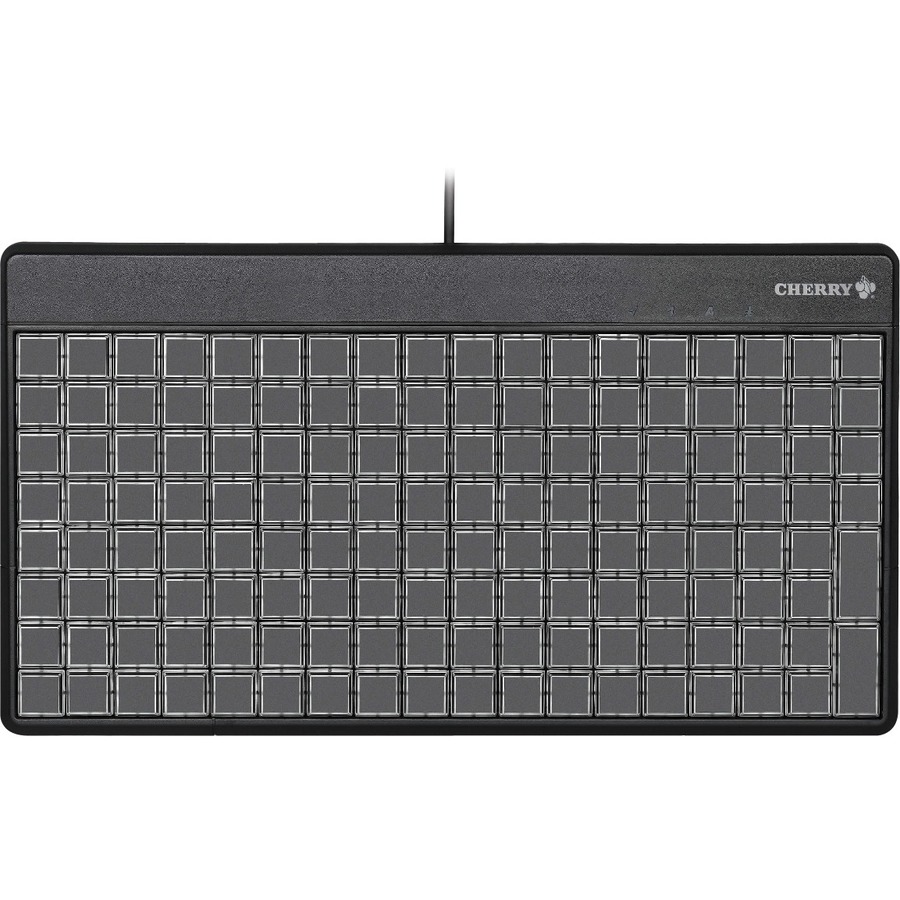

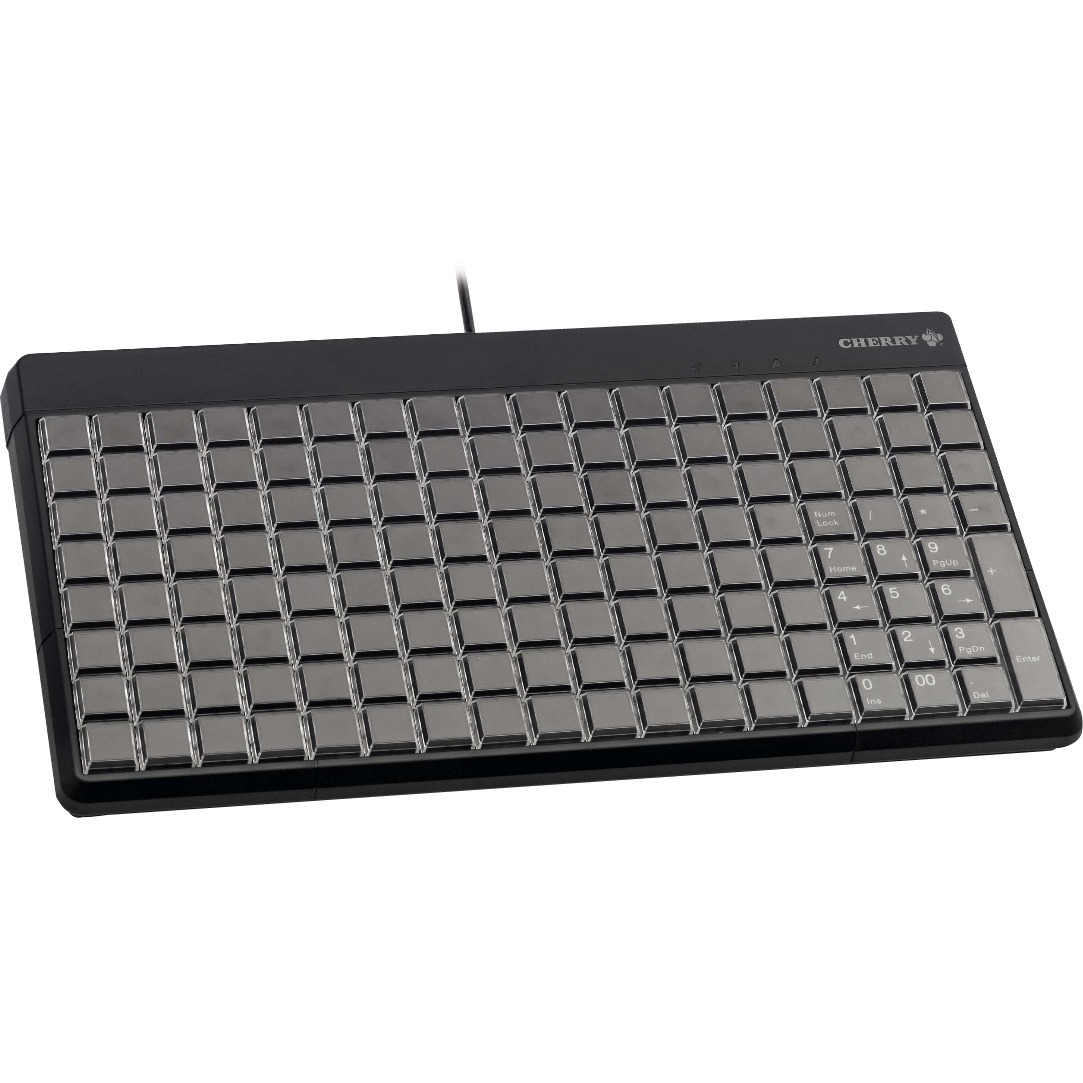

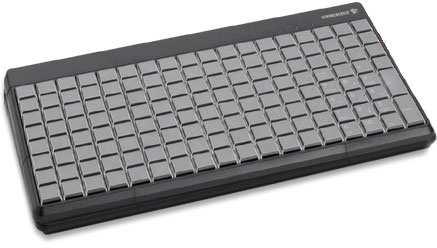

Cherry G86-6340 SPOS Rows and Columns Series Keyboards Model Overview
The CHERRY Point of Sale SPOS Rows & Columns Keyboards are expertly designed for commercial applications, ensuring maximum efficiency in various environments such as grocery stores, hospitality, and retail. With a robust design that offers IP 54 spill and dust resistance, these keyboards have an extensive 144 key position matrix that allows for custom key function assignments. A unique feature of this keyboard is its fully programmable and relegendable layout, providing rapid access to essential functions and configurations, along with optional features like a magnetic card reader and touchpad for seamless transaction processing.
Key Features:
144 Key Position Matrix in a compact 14" form factor for universal key function assignment.
Robust IP 54 design for spill and dust resistance, perfect for harsh environments.
Plug & Play configuration compatible with common POS features.
Unique 'Cherry Tools' programming for enhanced functions and configurations.
Fully Programmable keys with support for up to 3 layers for quick data access.
Magnetic Stripe Reader with high performance and bidirectional swipe capability.
Comprehensive UPOS support for both Windows and Linux.
Specifications:
Interface: USB 2.0
Current Input: Typ. 35 mA
Durability: Keys rated for 25 million operations
Reading Speed: 3-125 inch/s at 75 Bit/inch, 3-50 inch/s at 210 Bit/inch
Touchpad Resolution: 1000 dpi
Cable Length: Approximately 1.85 m
Key Layout: US 142/130 position layout
Weight: 1.4 kg (without packaging)
Dimensions: 360 x 198 x 38 mm (keyboard)
Temperature Range: Operating: 0°C to 50°C, Storage: -20°C to 60°C
Cherry G8663400EUADAA Keyboards Overview
Compact, robust and multifunctional, the G86-63400 is ideal for busy yet space-limited work areas. A fully programmable keyboard with 142-130 relegendable keys allows for easy layout configuration and quick function calls. ''CHERRY Tools'' virtual programming enhances programming functionality. A high performance and freely-configurable 3-track magnetic stripe reader allows for dual insertion for bi-directional swipe.
Compact size keyboard with Rows & Columns key layout
142 Key Position Matrix in 14" Form Factor for Universal Key Function Assignment
Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
Unique Function Enhancement with 'CHERRY Tools" Virtual Programming
Fully Programmable Keyboard with 142 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
Option for Virtual Programming of all Keys up to 3 Layers Provides Convenient Data Access
'Moving of Keys' Allows for Easy Key Position Exchange Including Modifier Functions
Grouping of Keys Allows for 1x2 and 2x2 key Positions
Disabling of Single Key Positions or Complete Rows & Columns with Optional Blank Covers
Powerful 'CHERRY Tools' Configuration Software Allows for Quick Product Set Up and Configuration
Optional Accessory Kit Includes Multi-wide Keycaps and Lenses, Paper Inserts in 5 colors, Blank Covers for Easy Hardware Configuration
Comprehensive UPOS Support for Windows and Linux Client-Server Architectures
Remote Network Installation with CHERRY Tools Activator and Runtime Version
The Cherry G8663400EUADAA Keyboards is also known as
CHE-63400EUADAA
or G86-63400EUADAA.
