Cherry G86-63400EUAEAA Keyboards
Full specifications (PDF)

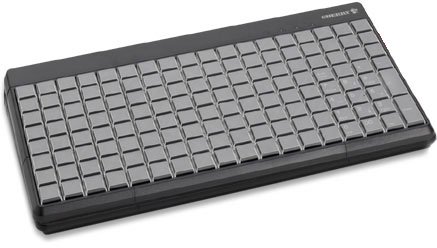

Cherry G86-6340 SPOS Rows and Columns Series Keyboards Model Overview
The CHERRY Point of Sale SPOS Rows & Columns Keyboards are expertly designed for commercial applications, ensuring maximum efficiency in various environments such as grocery stores, hospitality, and retail. With a robust design that offers IP 54 spill and dust resistance, these keyboards have an extensive 144 key position matrix that allows for custom key function assignments. A unique feature of this keyboard is its fully programmable and relegendable layout, providing rapid access to essential functions and configurations, along with optional features like a magnetic card reader and touchpad for seamless transaction processing.
Key Features:
- 144 Key Position Matrix in a compact 14" form factor for universal key function assignment.
- Robust IP 54 design for spill and dust resistance, perfect for harsh environments.
- Plug & Play configuration compatible with common POS features.
- Unique 'Cherry Tools' programming for enhanced functions and configurations.
- Fully Programmable keys with support for up to 3 layers for quick data access.
- Magnetic Stripe Reader with high performance and bidirectional swipe capability.
- Comprehensive UPOS support for both Windows and Linux.
Specifications:
- Interface: USB 2.0
- Current Input: Typ. 35 mA
- Durability: Keys rated for 25 million operations
- Reading Speed: 3-125 inch/s at 75 Bit/inch, 3-50 inch/s at 210 Bit/inch
- Touchpad Resolution: 1000 dpi
- Cable Length: Approximately 1.85 m
- Key Layout: US 142/130 position layout
- Weight: 1.4 kg (without packaging)
- Dimensions: 360 x 198 x 38 mm (keyboard)
- Temperature Range: Operating: 0°C to 50°C, Storage: -20°C to 60°C
