This ultra-low-profile compact keyboard is the perfect solution for users seeking efficiency without compromising on space. Designed for high-demand applications like banking, finance, and healthcare, the G84-4100 excels in portability, making it an ideal companion for Slim Line PCs and notebook computers. With its lightweight body and spill-resistant membrane, it stands up to the rigors of laboratory and medical environments while ensuring a comfortable typing experience with its ML technology and Gold Crosspoint contacts.
Key Features
Mechanical keys from our ML series for high-precision key action
Compact design with keycaps arranged in an 18 mm grid
Lightweight design, weighing approximately 500 g
LED indicators for Num Lock, Caps Lock, and Scroll Lock
High reliability with MTBF of 170,000 hours
Long service life of individual keys with 20 million operations
Specifications
Power Supply: 3.3-5 V/DC ± 10% SELV
Current Input: approx. 10 mA
Connecting Cable: approx. 1.70 m long
Temperature Range:
Storage: -20 °C to +60 °C
Operating: 0 °C to +50 °C
Housing Dimensions: 282 x 132 x 27 mm
Weight: approx. 500 g
Actuation Characteristics: Soft contact
Keyboard Approvals: CЯUS, CE, FCC Part 15 Subpart B Class B

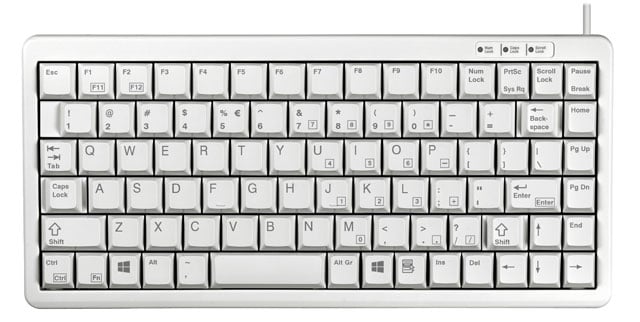

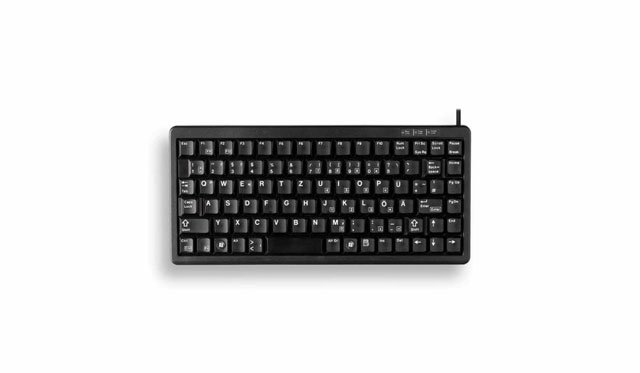

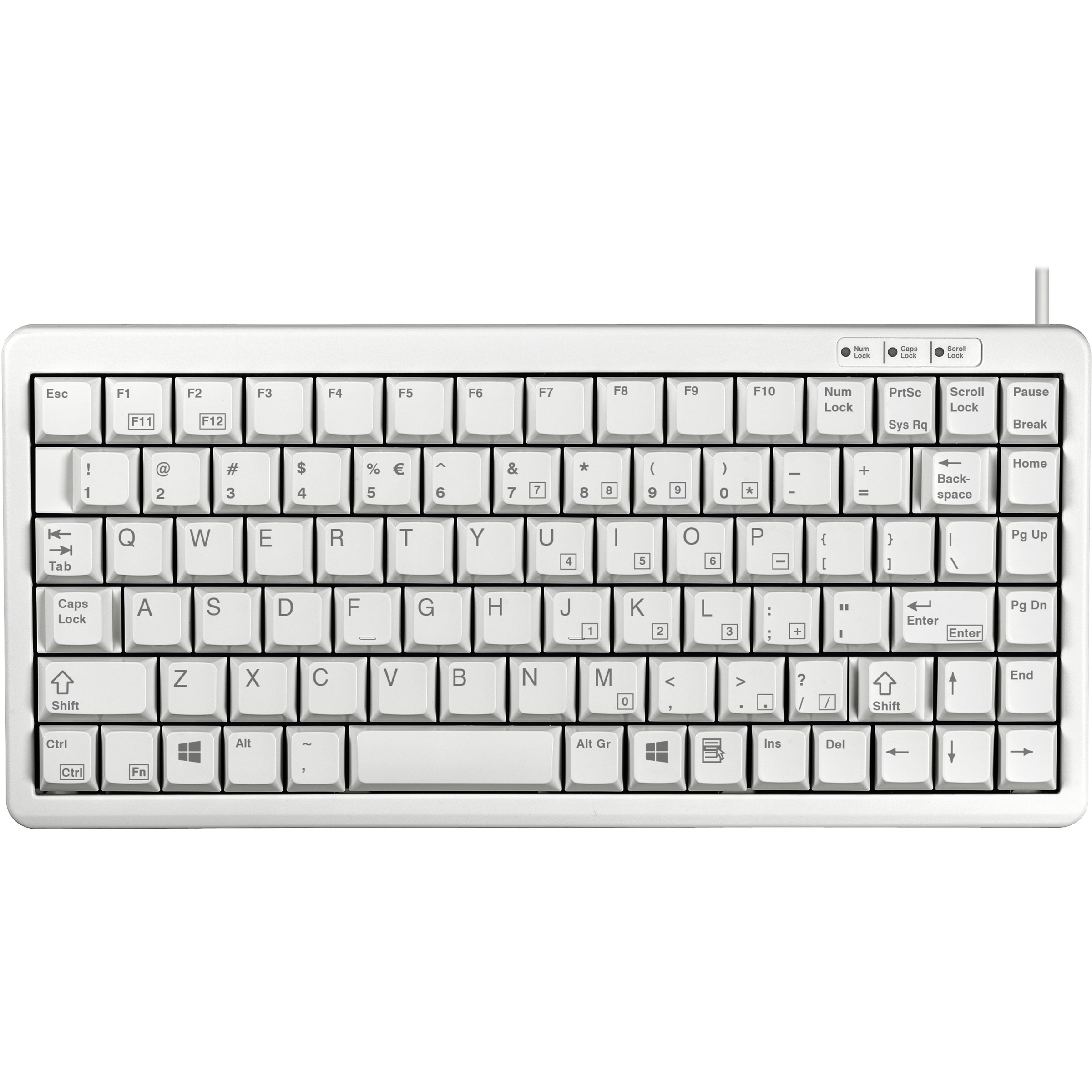

Cherry G84-4100LCAUS-0 Keyboards Overview
Perfection for even the smallest of spaces! This compact keyboard is the perfect solution for users with only limited space available and low weight requirements. For example, applications in the banking sector, medical institutions or portable systems. Also suitable for 19-inch applications. This keyboard is perfectly suited for slim-line PCs and laptops and can be enhanced optimally with the numeric block G84-4700.
Individual keys with Gold Crosspoint contacts (ML technology)
Designed for continuous usage - over 20 mill. confirmations per key
High level of reliability and unique precision confirmation feeling
Minimal space requirements
Lightweight
Can also be delivered without "Windows® keys" (83 keys)
Complete functions of a standard keyboard
Can be used with the standard drivers of the operating system
The Cherry G84-4100LCAUS-0 Keyboards is also known as
CHE-4100LCAUS-0
or G84-4100LCAUS-0.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
