Recording Formats:
Full HD
HD Recording:
Yes

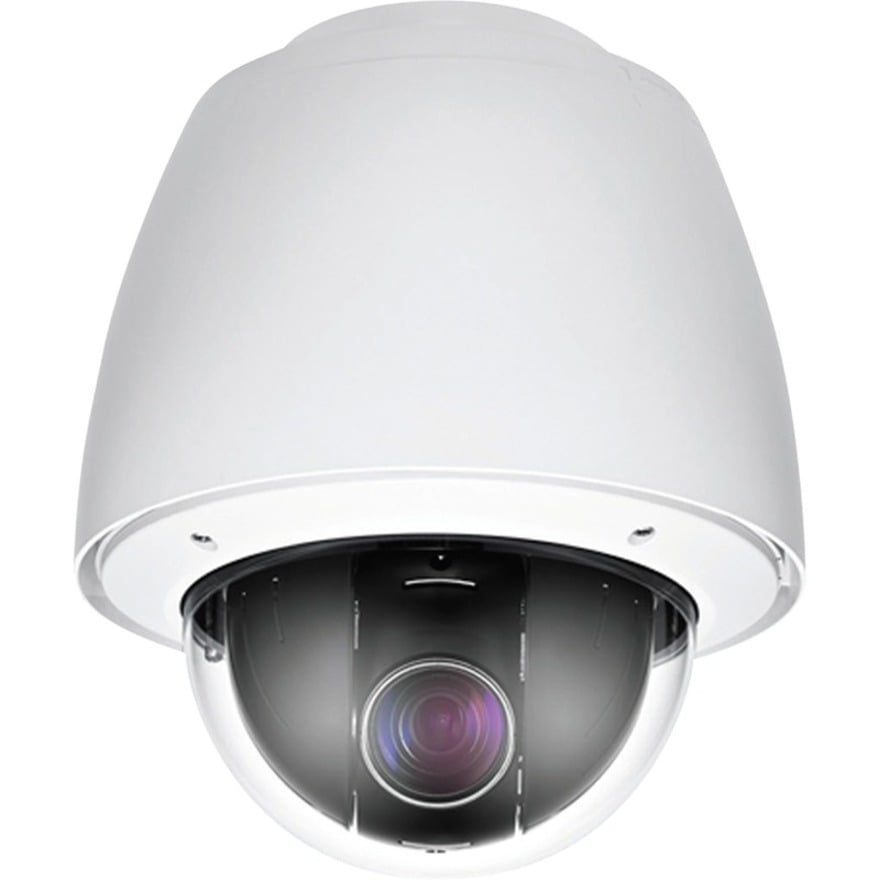

CBC ZN1A-P4DT54U Security Camera
Part Number:
ZN1A-P4DT54U
Model:
Parts
CBC Parts Accessory Model Overview
Products and parts from CBC.
CBC ZN1A-P4DT54U Security Camera Overview
The Ganz StarCcure is the first IP camera series to combine GXi video analytics with a Sony Starvis® sensor, for superior video surveillance. GXi Imbedded Intelligence Technology maximizes your surveillance capability with a powerful set of built-in video analysis tools, WDR with tone mapping and edge recording to SD card. The Sony Starvis sensor's back-illuminated pixel technology produces highly detailed images in low light situations, the sensitivity performance has been extended from the visible light range to include near infrared range to support images at night, essential for surveillance camera use.
- Full HD 1080P
- 1/2.8" SONY STARVIS Exmor Sensor
- 30x Optical and 12x Digital Zoom
- True Day / Night and WDR
- VCA Technology Video Analytics
- SONY Starvis Sensor for superior low light performance
- Leading Edge Pan / Tilt Technology
- IP66, IK10
Technical Information
Display & Graphics
Image Sensor Type:
Exmor CMOS
Color Supported:
- Color
- Monochrome
Field of View:
Horizontal: Approx. 63.7° (Wide) to 2.3° (Tele) Vertical: Approx. 38.5° (Wide) to 1.3° (Tele)
Video
Video Formats:
- H.264
- MPEG-4 AVC
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Video Signal Format:
- NTSC
- PAL
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
129 mm
Lens Included:
Yes
Minimum Aperture:
f/4.7
Maximum Aperture:
f/1.6
Optical Zoom:
30x
Exposure
Shortest Shutter Speed:
1/110000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
Pendant Mount
Durability:
- Vandal Resistant
- Weather Resistant
Height:
10.9"
Diameter:
9.1"
Weight (Approximate):
10.14 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Maximum Operating Humidity:
85%
Miscellaneous
Features:
- Auto Gain Control
- Automatic White Balance
- Back Light Compensation (BLC)
- Day/Night
- Motion Detection
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Warranty
Limited Warranty:
36 Month
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The CBC ZN1A-P4DT54U Security Camera is also known as
ZN1AP4DT54U
