Fixed Focal Length:
2.10 mm

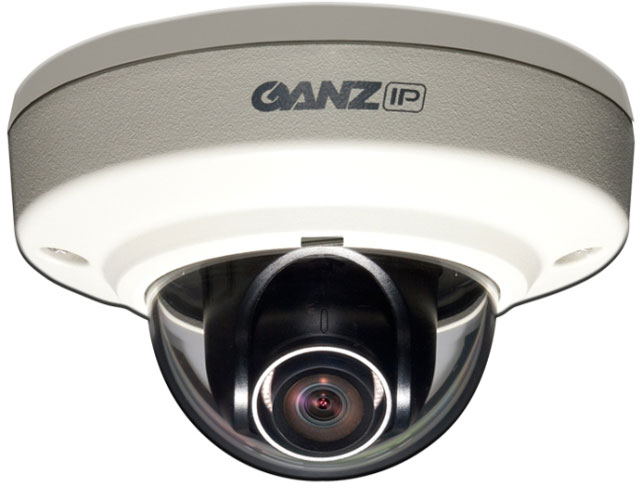

CBC ZN-MD221M Security Camera
Part Number:
ZN-MD221M
Model:
CBC Parts Accessory Model Overview
Products and parts from CBC.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
White Balance Modes:
- Auto
- Manual
- Preset
Minimum Illumination:
0.6 lux
Color Supported:
Color
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.10 mm
Lens Included:
Yes
Maximum Aperture:
f/3.5
Exposure
Shortest Shutter Speed:
1/2000 Second
Longest Shutter Speed:
1/4 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- HTTP
- SMTP
- UPnP
- DNS
- RTSP
- DDNS
- RTP
- TCP
- UDP
- RTCP
- DHCP
- ARP
- IGMP
- NTP
Controls/Indicators
Status Indicators:
LEDs:
- Network
- Status
Power Description
Maximum Power Consumption:
3 W
Physical Characteristics
Height:
2.7"
Diameter:
4.3"
Weight (Approximate):
12.80 oz
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
- PixelPro ZN-MD221M
- Software CD
- Quick User Guide
- Silica-gel
- Templates for Installation
- Video Monitor Cable
- Focus Adjust Ring
- Anti Reflect Rubber
- 3 x Tapping Screw M4x30
- 3 x Anchor
- 4 x Screw M4x8
- Surface Mount Bracket
- L-Wrench (T20)
System Requirements:
Web Browser: Internet Explorer 7.0 or above, Firefox, Chrome, Smart Phone
Compatibility:
- NTSC
- PAL
Certifications & Standards:
- CE
- FCC
Security Features:
Password Protection
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0781904467860
UPC:
781904467860
EAN:
0781904467860
UNSPSC:
46171610
The CBC ZN-MD221M Security Camera is also known as
CBC-ZNMD221M
