Lens Type:
Fixed
Iris Type:
Manual
Maximum Focal Length:
35 mm
Maximum Aperture:
f/1.4
Lens Mount Type:
C-mount
Autofocus:
No
CBC Parts Accessory Model Overview
Products and parts from CBC.

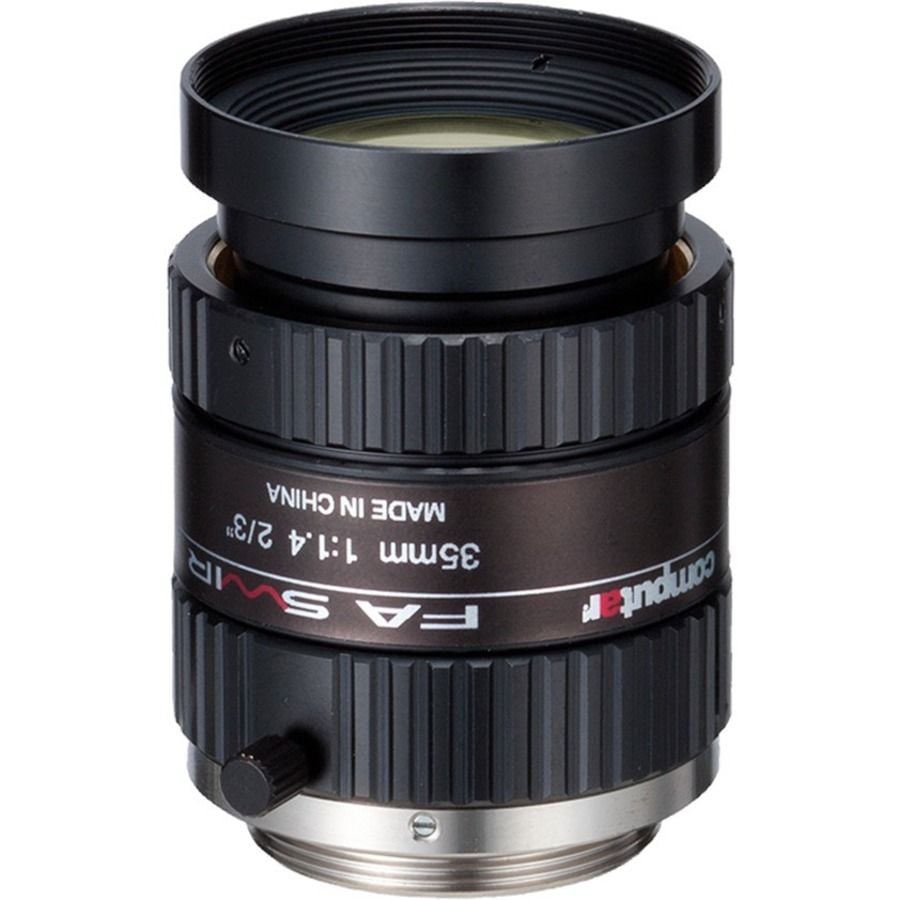

CBC M3514-SW CCTV Camera Lens Overview
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
- Unique coating technology delivers high transmission from 800nm-1,700nm
- High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
- Also available in 16mm, 25mm and 50mm
- Designed around the popular ?12.3mm image circle format
- The industry's most compact form factor. Fits in most applications
Technical Information
Physical Characteristics
Diameter:
1.3"
Weight (Approximate):
3.07 oz
Miscellaneous
Application/Usage:
Surveillance Camera
Sensor Size Compatibility:
2/3"
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
45121603
