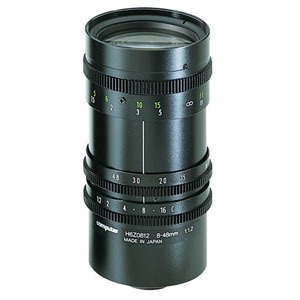

CBC H6Z0812 CCTV Camera Lens

Part Number: H6Z0812
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$337.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Lens Type
Zoom
Minimum Focal Length
8 mm
Maximum Focal Length
48 mm
Optical Zoom
6x

Product Description:

  CBC H6Z0812 Manual Zoom Lens - f/1.2
Explore all CBC Parts Accessories
Add to Quote
CBC H6Z0812 CCTV Camera Lens
CBC H6Z0812 CCTV Camera Lens

CBC Parts Accessory Model Overview

Products and parts from CBC.
CBC H6Z0812 CCTV Camera Lens Overview

Provides manual adjustment of focal length, iris and focus for use where variable angle of view is required. Main applications include inspection, machine vision and robotics.

Technical Information
Lens Type:
Zoom
Minimum Focal Length:
8 mm
Maximum Focal Length:
48 mm
Optical Zoom:
6x
Maximum Aperture:
f/1.2
Filter Attachment Diameter:
49 mm
Lens Mount Type:
C-mount
Autofocus:
No
Field of View:
33.5° to 6.1°, 44.6° to 8°, 9.9° to 55.8°
Physical Characteristics
Height:
2.9"
Width:
2.6"
Depth:
3.8"
Weight (Approximate):
14.11 oz
Miscellaneous
Application/Usage:
Surveillance Camera
Additional Information:
  • Lens Mount: C-Mount
  • Maximum Image Format: 6.4 x 4.8mm

Effective Lens Aperture:

  • Front Diameter: 39.2mm
  • Rear Diameter: 16.6mm
Compatibility:
1/3" Format Surveillance Cameras
Sensor Size Compatibility:
1/3"
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0036798474808, 0781904207305, 0781904207329, 4995745207325
UPC: 036798474808, 781904207305, 781904207329
EAN: 0036798474808, 0781904207305, 0781904207329, 4995745207325
UNSPSC: 45121603
