Recording Modes:
Motion Detection
CBC DR4HL-500 Surveillance DVR
Part Number:
DR4HL-500
Model:
CBC Parts Accessory Model Overview
Products and parts from CBC.

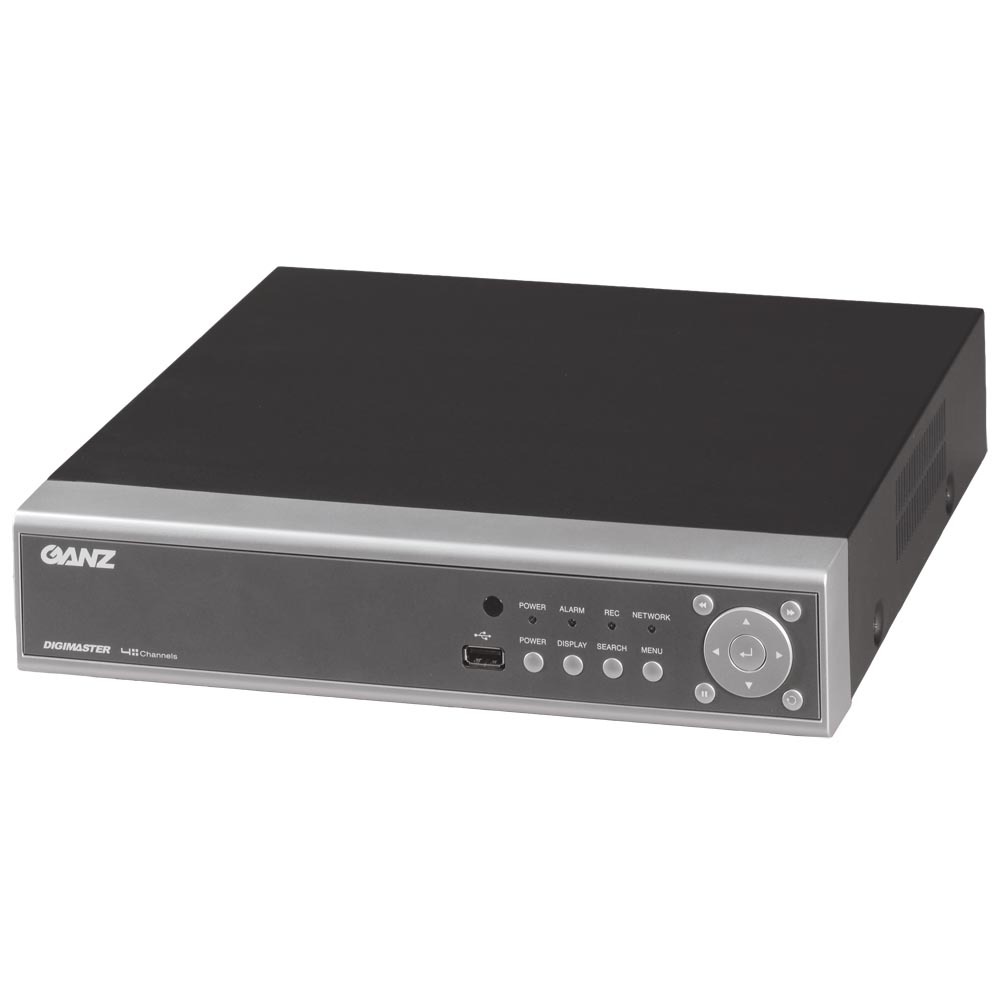

CBC DR4HL-500 Surveillance DVR Overview
High Versatility
Thanks to the compact dimensions and the fan-less housing of the DR4H Lite, this digital recorder is perfect for use in private areas. Or anywhere where there is supposed to be a quiet environment.
Outstanding Advantages
The H.264 compression is a further development of the MPEG standard. Less hard disk space is required thanks to this and yet the picture quality remains as high as ever. Up to 100 pictures per second in CIF resolution allow recording in real-time. The DR4HL has a VGA output as well as a BNC output for connecting a monitor.
Technical Information
Storage
Hard Drive Capacity:
500 GB
Video
Maximum Frame Rate:
30 fps
Maximum Video Resolution:
704 x 576
Video Signal Format:
- NTSC
- PAL
Video Formats:
H.264
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
VGA:
Yes
Number of VGA Outputs:
1
Composite Video:
Yes
Number of Composite Video Outputs:
1
Network (RJ-45):
Yes
USB:
Yes
Audio Line In:
Yes
Number of Analog Audio Inputs:
4
Audio Line Out:
Yes
Number of Analog Audio Outputs:
1
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Maximum Power Consumption:
200 W
Physical Characteristics
Height:
2.3"
Width:
11"
Depth:
11.9"
Weight (Approximate):
4.14 lb
Miscellaneous
Package Contents:
- DIGIMASTER 4 Lite DR4HL-500 4-Channel Digital Video Recorder
- Mouse
- USB Flash Drive
- Remote Control
- Power Supply
- CD-ROM
- Manual
Additional Information:
- Triplex operation
- Video access through mobile devices
- PTZ control
- 120 ips recording
Certifications & Standards:
- UL
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0360451728510
UPC:
360451728510
EAN:
0360451728510
UNSPSC:
52161545
The CBC DR4HL-500 Surveillance DVR is also known as
CBC-DR4HL-500
