System Components:
Digital Video Recorder

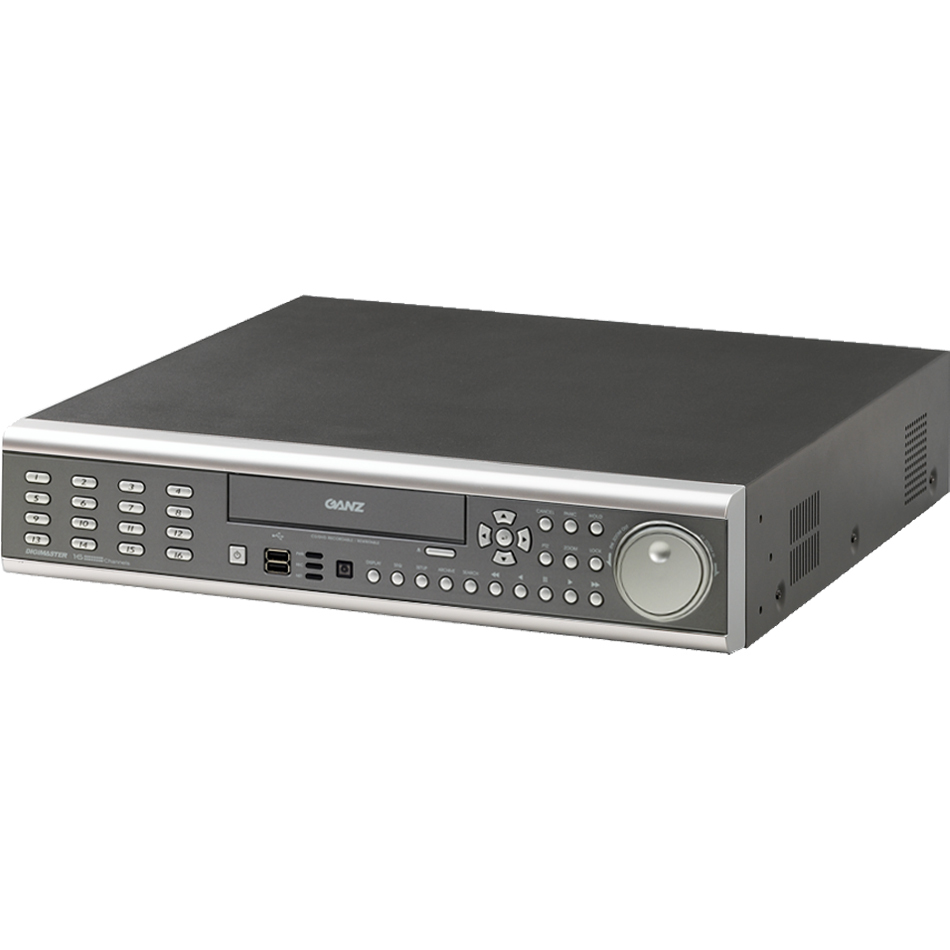

CBC DR16HD-1TB Surveillance DVR
Part Number:
DR16HD-1TB
Model:
CBC Parts Accessory Model Overview
Products and parts from CBC.
Technical Information
Storage
Hard Drive Capacity:
1 TB
Video
Video Formats:
H.264
Maximum Resolution:
704 x 480
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
USB:
Yes
Network (RJ-45):
Yes
Alarm Connector:
Yes
Total Number of Audio In Ports:
4
Total Number of Audio Out Ports:
1
Serial:
Yes
Number of VGA Out:
1
HDMI:
Yes
Power Description
Input Voltage:
- 220 V AC
- 240 V AC
Physical Characteristics
Height:
3.5"
Width:
16.9"
Depth:
18.1"
Weight (Approximate):
16.10 lb
Miscellaneous
Package Contents:
- DIGIMASTER DR16HD-1TB 16-Channel Digital Video Recorder
- USB Mouse
- Hand Held Remote
- USB Flash Drive
Additional Information:
- Archive to CD, DVD, USB drive
- Video access through mobile devices
- Remote access via Network through web browser & DMS software
- PTZ control
- Pentaplex Operation: Simultaneous Live Record / Playback / Archive / Network
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0781904464661
UPC:
781904464661
EAN:
0781904464661
UNSPSC:
46171621
Get help from a Barcoding Expert!
The CBC DR16HD-1TB Surveillance DVR is also known as
CBC-DR16HD1TB
