Recording Formats:
HD
HD Recording:
Yes

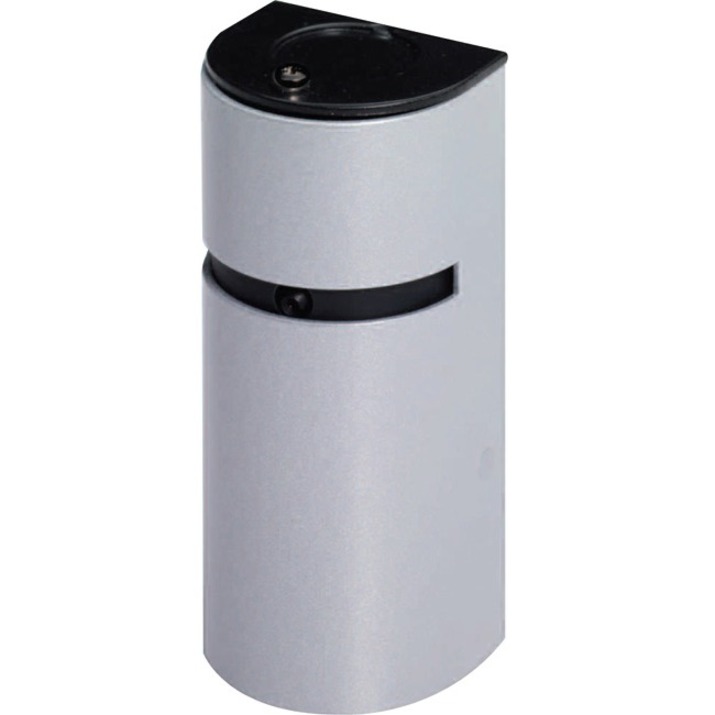

CBC DFW-28-4 Security Camera
Part Number:
DFW-28-4
Model:
Parts
CBC Parts Accessory Model Overview
Products and parts from CBC.
CBC DFW-28-4 Security Camera Overview
The DF Series features a full HD pinhole IP camera with GXi Technology maximizing the camera's surveillance capabilities by bringing an added feature set of Imbedded Intelligence and full video recording to SD card to this already full-featured series. The Imbedded Intelligence provides analysis of video with application areas including intrusion detection, people counting and loitering detection, as well as camera tampering and failure detection.
Features:
Features:
- Full HD 1080p @ 30fps
- Fits most standard door frames
- Durable aluminum construction
- Imbedded Intelligence Technology
- Image Rotation for vertically oriented space
- 3.7mm or 2.8mm Fixed Lens
- Digital Day/Night and WDR
- SDXC Edge Recording (up to 64GB)
- Power over Ethernet (IEEE 802.3af)
- Available in silver, white and, black
- "Dummy" models (no camera) also available
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- MPEG-4 AVC
- MPEG-4
Maximum Video Resolution:
1920 x 1080
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
Wall Mount
Height:
4"
Width:
1.7"
Depth:
1.4"
Weight (Approximate):
8 oz
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The CBC DFW-28-4 Security Camera is also known as
DFW-28-4
