Recording Formats:
Full HD
HD Recording:
Yes
CBC DFB-37-4 Security Camera
Part Number:
DFB-37-4
Model:
Parts
CBC Parts Accessory Model Overview
Products and parts from CBC.

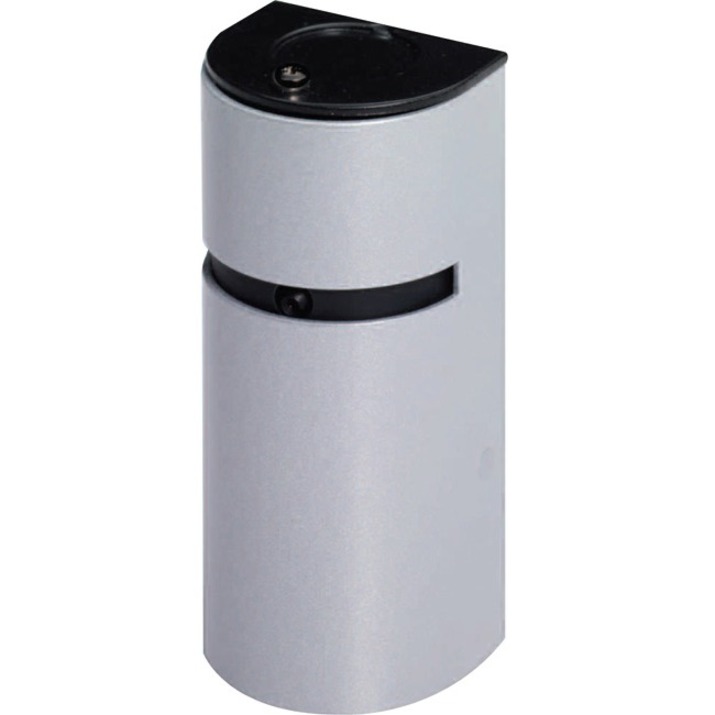

CBC DFB-37-4 Security Camera Overview
Ganz DFx-4 series door frame cameras are designed to supplement standard security cameras by clearly capturing a person's facial image upon exiting a store. They are typically mounted on the door frame at about 5' height; low enough to see under a hat or hood. Full HD 1080p @ 30fps
- Fits most standard door frames
- Durable aluminum construction
- Imbedded Intelligence Technology
- 3.7mm Fixed Lens (also available in 2.8mm)
- Digital Day/Night and WDR
- SDXC Edge Recording (up to 64GB)
- Power over Ethernet (IEEE 802.3af)
- ONVIF Compliant (Profile S)
- Available in silver, white (DFW-37-4) and black (DFB-37-4)
- Also available in a "dummy" model
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Field of View:
Horizontal: Approx. 63° Vertical: Approx. 33°
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- MPEG-4 AVC
- MPEG-4
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.70 mm
Lens Included:
Yes
Maximum Aperture:
f/2.5
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
Wall Mount
Color Family:
Black
Product Color:
Black
Height:
4"
Width:
1.7"
Depth:
1.4"
Weight (Approximate):
8 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Maximum Operating Humidity:
90%
Miscellaneous
Features:
- Day/Night
- Wide Dynamic Range
- SD Card Local Storage
- Automatic White Balance
- Back Light Compensation (BLC)
Indoor/Outdoor:
Indoor
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
46171610
