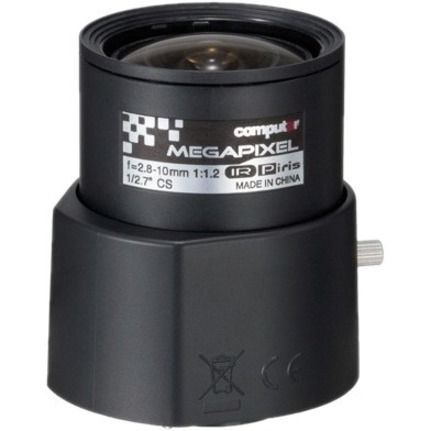

CBC AG4Z2812KCS-MPIR CCTV Camera Lens

CBC - 1/2.7" 2.8-10mm, f1.2, P-iris, Day/Night IR, 3 megapixel, CS-mount
  • Zoom lens is all about versatility, creativity, sharpness, speed, fast focusing, compactness, and fun
  • Designed to be used with surveillance camera
Read More

Need a different version? See all CBC Parts Accessories

$120.66
Add to Quote
Add to My Shopping List Add to Compare
CBC AG4Z2812KCS-MPIR CCTV Camera Lens
CBC AG4Z2812KCS-MPIR CCTV Camera Lens
CBC AG4Z2812KCS-MPIR CCTV Camera Lens
CBC Parts Accessory Model Overview
Products and parts from CBC.
CBC AG4Z2812KCS-MPIR CCTV Camera Lens Overview

For use with special P-Iris cameras ONLY!

P-iris connector plugs are designed NOT TO fit incompatible cameras to protect them from damage,

  • 1/2.7" Format
  • 3 Megapixel
  • 2.8-10mm Varifocal
  • Full HD Format
  • P-iris (precise iris) technology
  • Precise Focus Adjustment
  • New Focus Lock System
  • IR Corrected Optics
  • Corner Brightness
  • Manual Iris and DC Auto iris models also available
Technical Information
Lens Type:
Zoom
Iris Type:
P Iris
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Optical Zoom:
4x
Maximum Aperture:
f/1.2
Lens Mount Type:
CS Mount
Autofocus:
No
Field of View:
D: 154.0°- 39.0°; H: 127.6°- 34.3°; V: 65.0°- 18.9°
Physical Characteristics
Diameter:
1.6"
Weight (Approximate):
2.29 oz
Miscellaneous
Application/Usage:
Surveillance Camera
Sensor Size Compatibility:
1/2.7"
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 45121603
