Canon VB-S800D Products

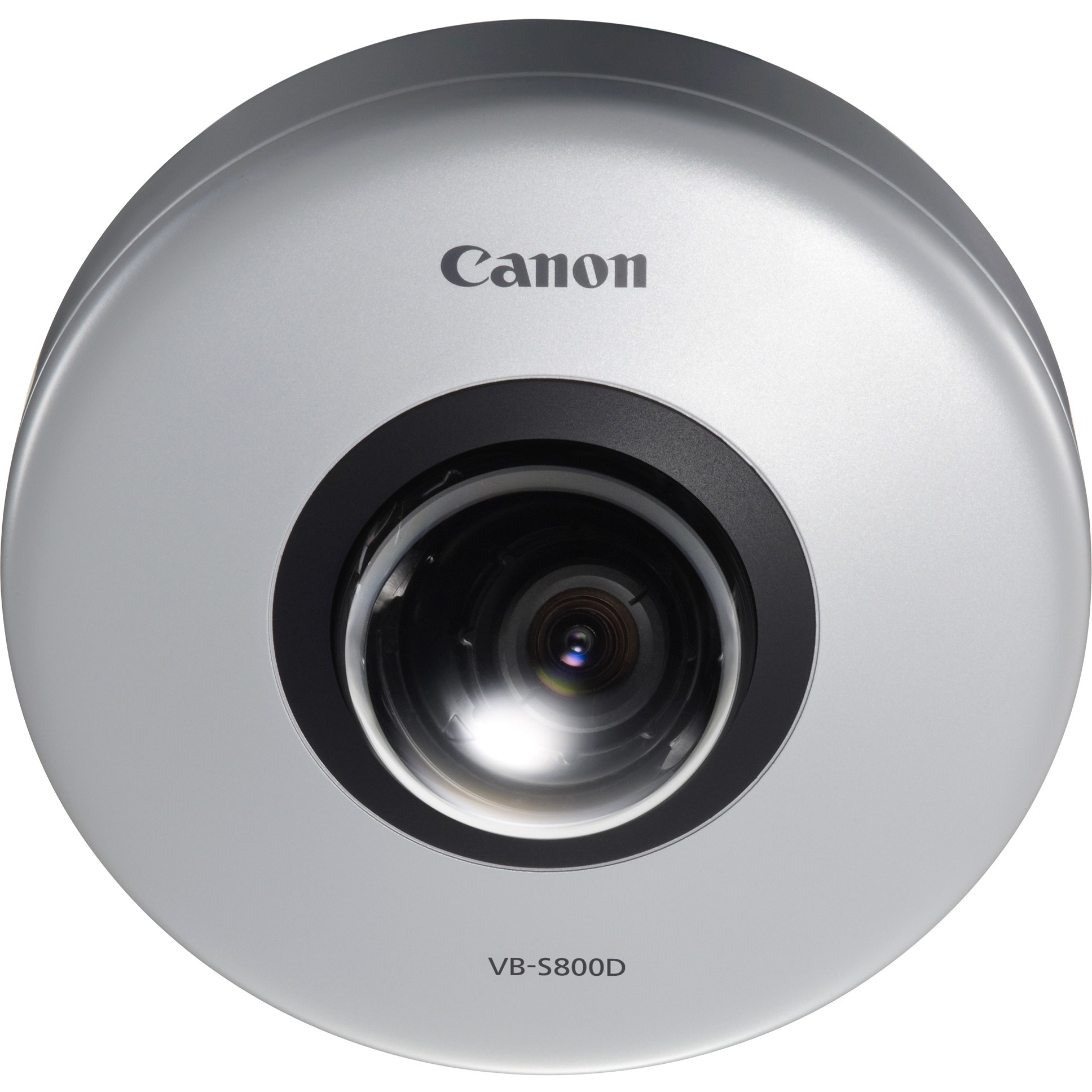

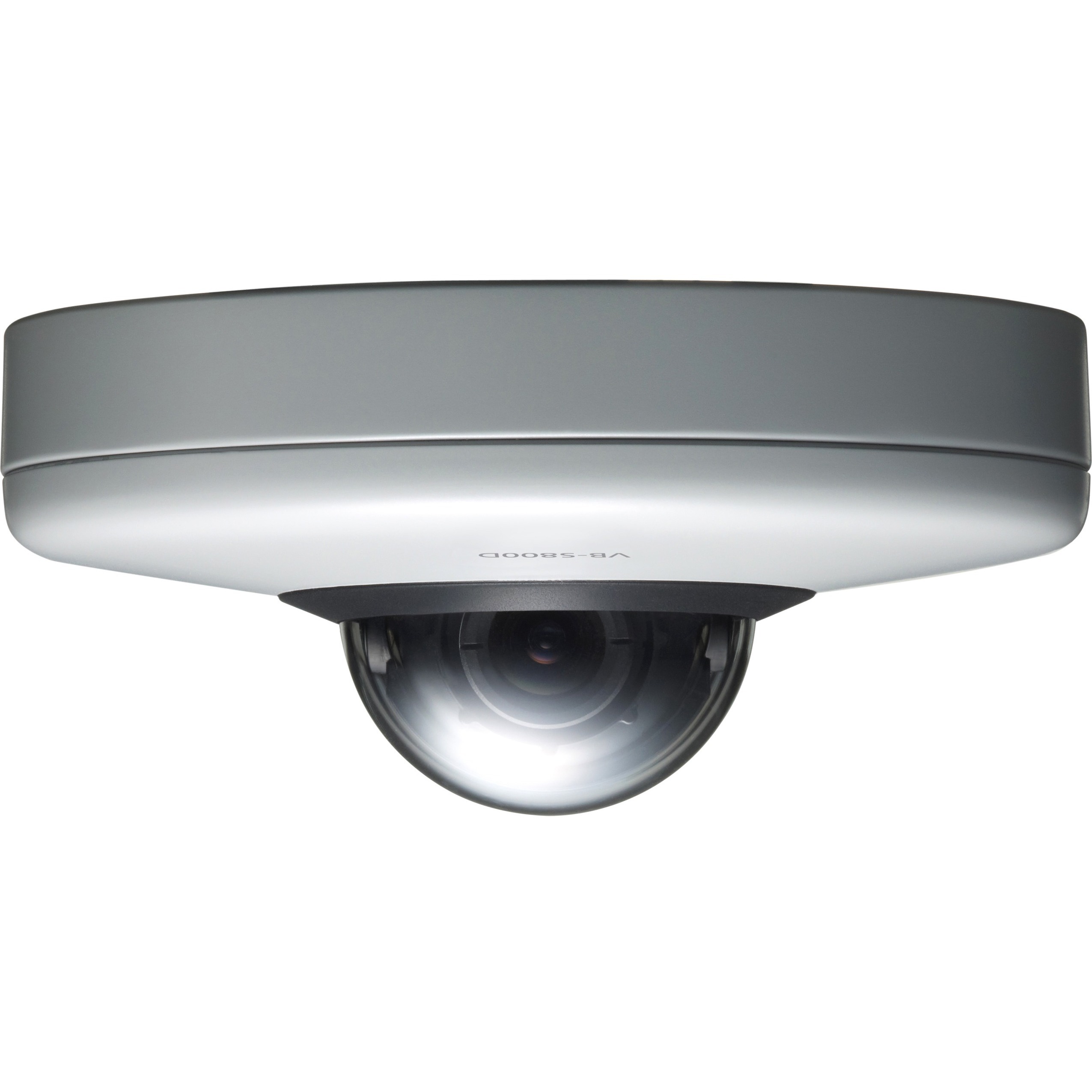

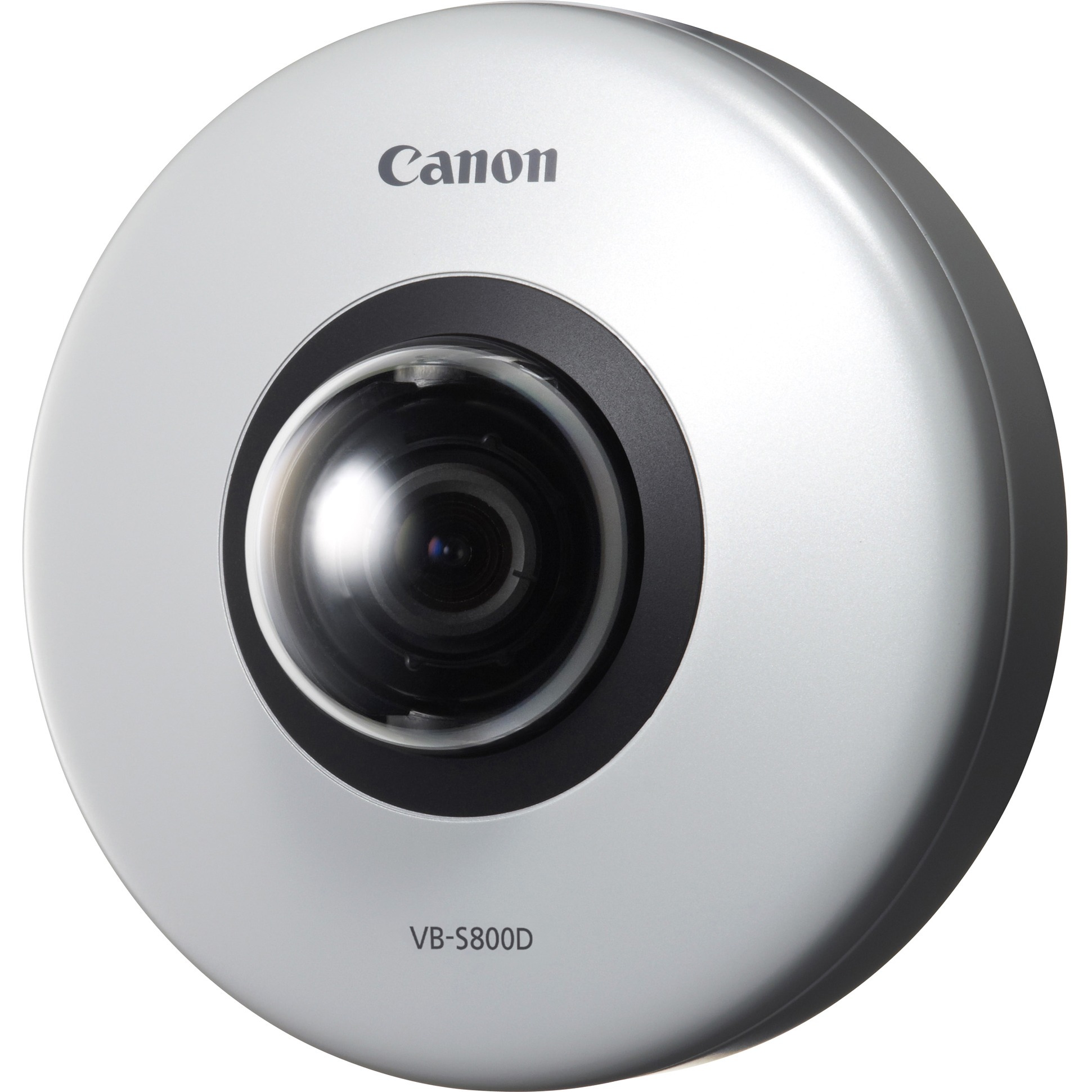

The VB-S800D Fixed Micro Dome Full HD Network Camera is very compact - only 4.72" in diameter and 2.13" thick - and very capable. Leveraging Canon's long-standing prowess in optical technology, the F1.6 Auto Focus lens has an outstanding 95° angle of view. In addition to the superb image quality delivered by the UD and Aspherical lens elements and the powerful Canon DIGIC DV III image processor, the VB-S800D adds class-leading low light performance and the DIGIC NET II Processor allows the Full HD images captured to be streamed in your choice of Full HD (1920 x 1080) up to 30fps in MJPEG, or using the low bandwidth H.264 codec.

That's just the beginning of the appeal of the VB-S800D. For financial institutions and commercial offices, the Privacy Mask feature is especially useful in providing detailed coverage without compromising door code security while the extensive viewing range of the Wide Angle Lens makes it a compelling choice in Airport & Transportation and Commercial Warehouse applications. A user can benefit from the outstanding flexibility in installation which comes from the light weight and diminutive dimensions of the VB-S800D. A special feature of this camera is the new lens design, specifically created to help minimize the negative effects of temperature changes on the lens barrel. Large changes in temperature can affect the refractive index, causing an unwanted focus shift. Our new design helps mitigate these changes, allowing placement of the camera in areas which experience wide shifts in temperature.

Sure to be noticed is the outstanding low light performance, which allows it to provide quality color video in a range from .45 lux down to .01 lux* and black / white video from .025 lux to .007 lux**. An impressive array of On-board Video Analytics, with set triggers including Moving, Removed and Abandoned Object Detection and Passing Detection are included to provide a wide range of options to help tailor this camera to your specific needs. With the VB-S800D you may also use the Preset Setting Tool to create up to 20 presets within the frame, allowing you to further customize this camera to the application/environment it is being used in.

The VB-S800D is IEEE802.1x Client Authentication protocol compliant, giving additional network security through port based access control - vital in high security areas. Further security is provided by the support of HTTPS. ONVIF Profile S conformant as well, you will be able to integrate the VB-S800D into a network system with ease when working with compliant equipment from different manufacturers and third party recording software systems.

For those installations where compact size, outstanding low light performance and a fixed dome is required, the Full HD video performance, outstanding analytical capabilities and temperature stability help make the VB-S800D a great choice in a variety of surveillance cameras.
