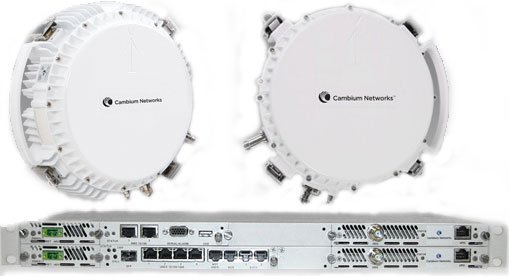

Cambium Networks N000081H003A Point to Point Wireless

Cambium Networks™ PTP 810 Solutions offer a powerful, flexible, and cost-effective wireless communication method for Ethernet and TDM applications. Designed for modern enterprises, the PTP 810 facilitates a seamless transition from outdated TDM technology to a high-performance, packet-based Ethernet network. With scalable data rates up to 700 Mbps and support for both native Ethernet and TDM, this solution excels in providing the connectivity needed for multimedia communications, remote connectivity, and building-to-building setups. The innovative split-mount architecture enables easy installation, allowing organizations to enhance operation efficiency without compromising reliability or performance. Choose the PTP 810 for an exceptional wireless solution that meets the growing demands of today's fast-paced business environments.
Key Features:

• Native Ethernet with TDM support
• Operational frequencies between 6 to 38 GHz
• Scalable data rates up to 700 Mbps
• Cross Polarization Interference Cancellation (XPIC) support
• Configurable channel widths from 7 to 80 MHz
• Integrated T1/E1 cross-connection switch
• Robust ring and non-protected configurations
• Spatial and frequency diversity for optimized performance

Specifications:

• Configuration Options:
  • 1+0 Non-Protected
  • 1+1 Protected
  • 2+0 Ring/Aggregation
  • Protected PDH Ring
  • SNCP-Like Protected T1/E1
  • Protected Ethernet Ring
• Data Rate: Up to 700 Mbps full duplex
• Modulation: Supports 64, 128, and 256 QAM
• Channel Width: 7 to 80 MHz configurable
• Outdoor Radio Unit (ODU): Ruggedized for outdoor conditions
• Installation: Quick deployment typically in 1-2 days
