Cambium Networks C230082B005A Point to Point Wireless

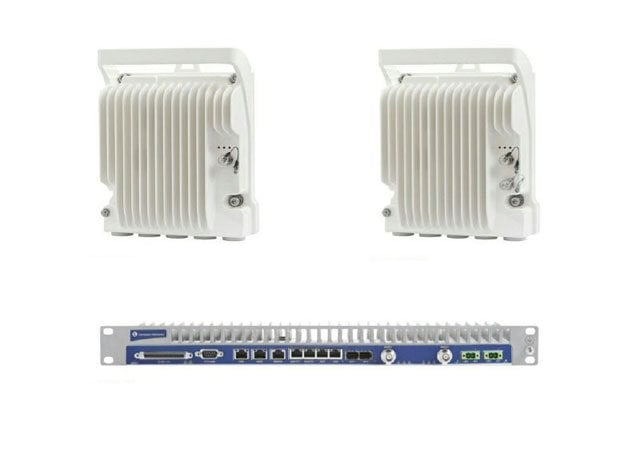

The Cambium Networks™ PTP 820 Series is a cutting-edge point-to-point licensed microwave backhaul platform designed to meet all radio transport needs. With exceptional modulation capabilities and a versatile range of frequency bands from 6 to 42 GHz, the PTP 820 delivers high throughput and industry-leading spectral efficiency. The system accommodates various configurations, including all-outdoor, split-mount, and all-indoor options, ensuring a tailored deployment for any service. With dual-core functionality, the PTP 820C can accommodate future upgrades without major overhauls, making it a smart long-term investment for network operators.

Key features:

• Supports licensed frequency bands 6-42 GHz
• Modulation up to 2048 QAM with Adaptive Coding & Modulation (ACM)
• Multi-gigabit radio capacity with high spectral efficiency
• Flexible configurations: All-outdoor, Split-mount, All-indoor
• Advanced Operations, Administration and Maintenance (OA&M) tools
• Supports Synchronous Ethernet (SyncE) and IEEE 1588v2 for synchronization

Specifications:

• Supported Frequency: 6-42 GHz
• Capacity:
  • PTP 820S: Up to 605 Mbps (Layer 2)
  • PTP 820C: Up to 1.21 Gbps (Layer 2)
  • PTP 820G: Up to 1.66 Gbps with Multi-Layer Compression
• Configuration: 1+0, 1+1 HSB, 1+0 to 4+0
• Dimensions: 230 x 233 x 98 mm
• Power Input: -48 VDC
• Operating Temperature: -33°C to +55°C (extended options available)
