Full specifications (PDF)
Frequency Band:
5 GHz
MIMO Technology:
Yes
Cambium Networks C050045A007B Point to Multipoint Wireless
Part Number:
C050045A007B
Model:
PMP 450i

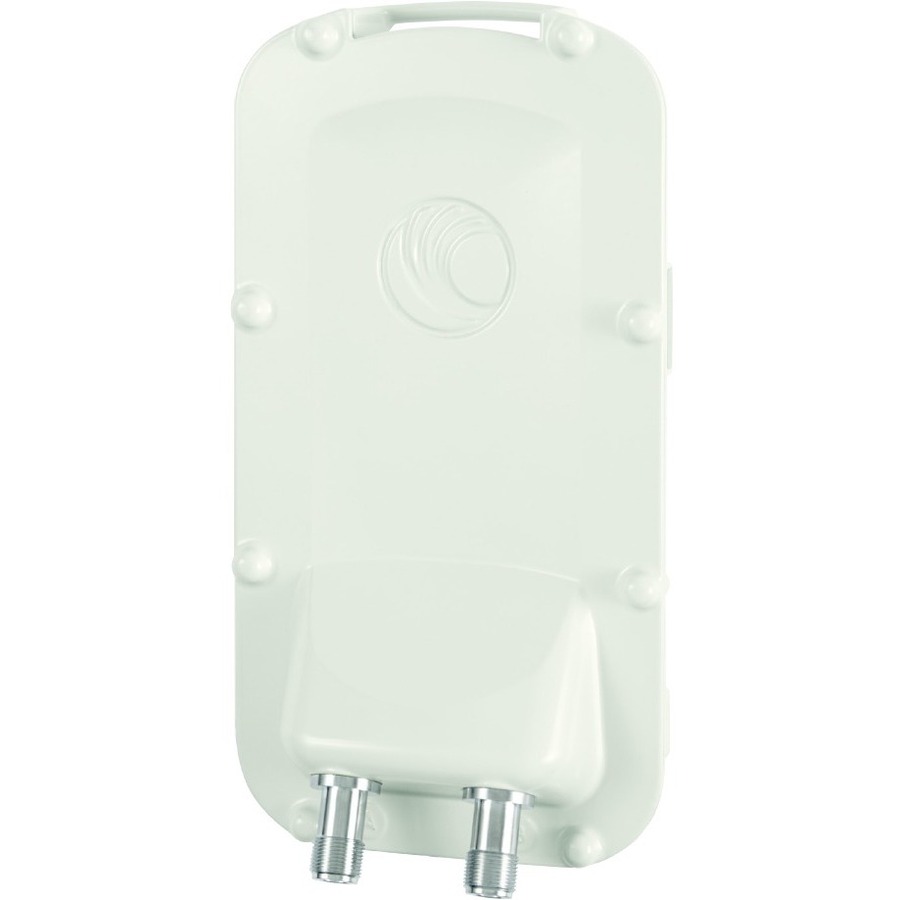

Cambium Networks PMP 450i Point to Multipoint Wireless Model Overview
Cambium Networks™ PMP 450i Access Point is designed to elevate your connectivity experience with its cutting-edge technology and industrial-grade reliability. As part of Cambium's industry-leading 450 platform, this access point delivers unmatched scalability, allowing seamless integration in diverse environments. With robust construction for harsh conditions and advanced features like Dynamic Interference Filtering and enhanced processing power, the PMP 450i is crafted to provide high-speed connectivity of over 250 Mbps per sector in a 40 MHz channel, ensuring exceptional performance for your broadband needs.
Key Features:
Specifications:
Key Features:
- Ultra-wide band radios support entire bands in both 5 GHz and 3 GHz.
- Rugged metal enclosure meets IP-66 and IP-67 standards, perfect for harsh environments.
- Dynamic Interference Filtering for improved performance and noise isolation.
- Multifunction AUX port allows flexibility by adding a camera or other PoE devices.
- Integrated sector antenna optimized for frequency reuse and predictable performance.
Specifications:
- Frequency Range: 3 GHz (3300-3900 MHz), 5 GHz (4900-5925 MHz)
- Maximum Deployment Range: Up to 40 miles (64 km)
- Processing Power: Tripled processing power compared to PMP 450
- Latency: 3 - 5 ms, typical
- Weight: Connectorized: 2.0 kg (4.5 lbs), Integrated: 7.5 kg (16.5 lbs)
- Temperature/Humidity: -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing
- Input Voltage: 48-59 V DC, 802.3at compatible
Cambium Networks C050045A007B Point to Multipoint Wireless Overview
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Key Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
- Option with new Integrated 90 degree sector antenna optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.
- Now capable of up to 300 Mbps per sector in a 40 MHz channel
Technical Information
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
PoE PD Port:
Yes
Physical Characteristics
Height:
23.4"
Width:
6.2"
Depth:
6.1"
Weight (Approximate):
14.99 lb
Item Numbers
UNSPSC:
43222631
