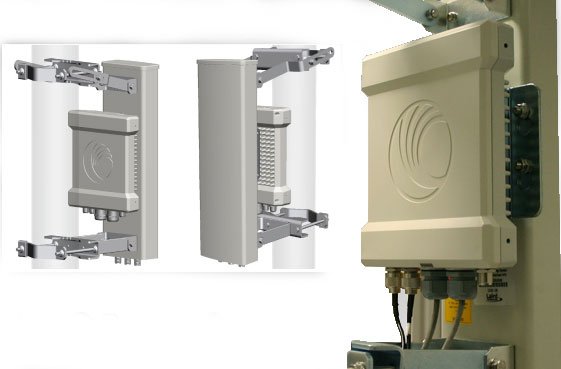

Cambium Networks C035045A001A Point to Multipoint Wireless

The Cambium Networks PMP 450 Access Point redefines wireless connectivity with outstanding throughput, exceeding 90 Mbps. Designed for service providers, this access point seamlessly upgrades existing networks using PMP 100 modules, enhancing capacity to accommodate more users and higher bandwidth plans. Featuring advanced 2x2 MIMO-OFDM technology, it offers flexible deployment options and exceptional reliability, making it suitable for high-demand networks without compromising performance.

Key Features:

• High Throughput: More than 90 Mbps data rates.
• Interoperability: Compatible with PMP 430 and PMP 100 Series Subscriber Modules.
• Advanced Technology: Utilizes 2x2 MIMO-OFDM for optimal performance.
• Long Range: Maximum deployment range up to 25 miles.
• Robust Security: Supports 128-bit AES encryption.

Specifications:

• Model Numbers: C054045A001A, C054045A002A
• Frequency Range: 5470-5875 MHz
• Channel Width: 10 MHz or 20 MHz
• Performance: Up to 200 subscribers per sector
• Receive Sensitivity: OFDM: 2X=-86, 4X=-79, 6X=-72 (10 MHz)
• Transmit Power: OFDM: -30 to +22 dBm
• Environment: Operating temperature: -40°C to +55°C
• Weight: 5.9 kg with antenna
• Power Consumption: Maximum 18 W
• Security Certifications: 128-bit AES, FCC ID: Z8H89FT0002
