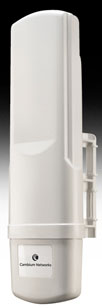

Cambium Networks 5490SM4 Access Point

The Cambium Networks PMP 430 Access Point is a robust solution for advanced broadband networks, delivering over 50 Mbps total aggregate throughput for seamless data transfer, voice, and video applications. Designed with GPS synchronization, it allows co-location with other Cambium PMP products, enhancing network efficiency. With a variety of Subscriber Modules offering throughputs of 4, 10, 20 or uncapped Mbps, the PMP 430 promises reliability and performance, making it ideal for diverse connectivity needs in various environments.

Key Features

• Exceptional Performance: Over 50 Mbps total aggregate throughput.
• Flexible Subscriber Modules: Options for 4, 20 or uncapped Mbps.
• GPS Synchronization: Allows co-location with other Cambium PMP products.
• Proven Reliability: Over 3 million modules deployed worldwide.
• Cost-Effective: Affordable broadband connectivity solutions for data, and video.

Specifications

• Model Number: 5480AP, 5480APC, 5480APUS
• Frequency Range: 5470-5725 MHz
• Channel Width: 5, or 20 MHz
• Max Aggregate Throughput:
  • 1X: 16.5 Mbps
  • 2X: 32 Mbps
  • 3X: 50 Mbps
• Latency: 5-7 ms
• Weight: Radio: 2.8 kg (6.1 lbs), with Antenna: 6.1 kg (13.5 lbs)
• Temperature: -40°C to +55°C (-40°F to +131°F)
• Power Consumption: 19W
• Security: 56-bit DES, 128-bit AES Optional
