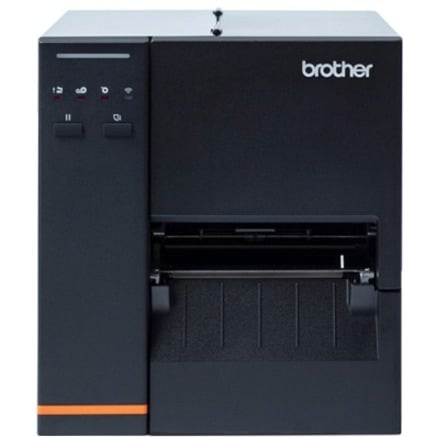

Brother TJ4020TN – Barcode Label Printer

Part Number: TJ4020TN
Model: Titan Industrial Printer
Add to My Shopping List Add to Compare
$572.28
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
10 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printers, Brother TJ4020TN, 4.7'''' Titan Industrial Printer, Thermal Transfer, 203dpi, 10ips, LED, LAN/USB/Host-USB/RS-232 Serial, 2 Year Premier Warranty
Explore all Brother Titan Barcode Label Printers
Add to Quote
Brother TJ4020TN Barcode Label Printer
Brother TJ4020TN Barcode Label Printer
Brother TJ4020TN Barcode Label Printer Brother TJ4020TN Barcode Label Printer
Full specifications (PDF)

Brother Titan Barcode Label Printer Model Overview

Brother Titan Industrial Printer Series offers an advanced solution for your high-volume labeling needs. Designed to excel in demanding environments like warehouses and manufacturing, these 4-inch printers deliver high-quality, crisp barcode labels at speeds of up to 10 inches per second. With user-friendly installation and versatile connectivity options, you have the support needed to optimize your operations. Plus, the industry-leading warranty and responsive customer support ensure a steadfast partnership throughout the life of your product. Experience reliability and efficiency at an exceptional value.
Key Features:
  • Performance: Produce quality, scannable barcodes at up to 10ips with sharp resolutions up to 300dpi.
  • Support: Backed by a 2-year Premier Limited Warranty, covering the printhead, and lifetime customer support.
  • Integration: Seamlessly integrate with your system using included emulations, SDKs, and drivers.
  • Versatile Connectivity: Standard Ethernet, USB, Host-USB, RS232C, with optional Wi-Fi® module.
  • Usability: Easy navigation with a 3.5-inch full-color HVGA touch panel display.

Specifications:
  • Base Model: TJ4021TN / TJ4121TN
  • Printing Technology: Thermal Transfer, Direct Thermal
  • Media/Print Width: 4.7" (120mm)
  • Print Head Resolution: 203 dpi / 300 dpi
  • Print Engine Speed: Up to 10ips / 7ips
  • Standard Interfaces: Ethernet LAN, USB 2.0, RS232C
  • Optional Interfaces: Wi-Fi® WLAN, Bluetooth (Not Available)
  • Printer Memory: 128MB Flash, 128 SDRAM
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • ENERGY STAR Certified: Yes
Brother TJ4020TN Barcode Label Printer Overview
The Brother TJ-4020TN industrial label printer offers performance you can rely on when keeping up with increasing demand.

The high-volume thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large ribbon capacity and in-built durability.

With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4020TN has been built with you in mind.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
83.33 ft
Maximum Print Width:
4.21"
Barcode Symbology Supported:
  • Code 128 UCC
  • EAN-128 Subset A
  • EAN-128 Subset B
  • EAN-128 Subset C
  • EAN 128
  • Interleaved 2 of 5
  • Interleaved 2 of 5 With Check Digit
  • Standard 2 of 5
  • Industrial 2 of 5
  • Code 39
  • Code 39 With Check Digit
  • Code 93
  • EAN-13
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN and UPC 2(5) Digits Add-On
  • Codabar
  • POSTNET
  • MSI
  • MSI With Check Digit
  • Plessey
  • China Post
  • ITF-14
  • EAN-14
  • Code 11
  • Telepen
  • TELEPENN Number
  • PLANET
  • Code 49
  • Deutsche Post Leitcode
  • Deutsche Post Identcode
  • LOGMARS
  • 1D
  • 2D
  • GS1 DataBar
  • GS1 DataMatrix
  • Maxi Code
  • AZTEC
  • PDF417
  • QR Code
  • Micro PDF-417
  • TLC 39
  • CODABLOCK F Mode
Application/Usage:
Industrial
Features:
  • Compact
  • Power Indicator
  • Status Indicator
  • Error Condition Indicator
Connectivity Technology:
Wired
Optional Connectivity:
Wireless LAN
Print Technology:
Direct Thermal /Thermal Transfer
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Label
  • Shipping Label
Maximum Label Width:
4.72"
Fonts & Emulation
Language Emulation:
  • FBPL-EZD
  • EPL2
  • ZPL2
  • DPL
Power Description
Power Source:
Power Adapter
Physical Characteristics
Height:
10.8"
Width:
9.8"
Depth:
17.2"
Weight (Approximate):
20.28 lb
Miscellaneous
Cables Included:
USB
Power Adapter Included:
Yes
Platform Supported:
  • Mac
  • PC
  • Android
  • iOS
  • SPARC
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0012502670025, 4977766822268
UPC: 012502670025
EAN: 0012502670025, 4977766822268
UNSPSC: 43212108
