Brother Titan Industrial Printer – Barcode Label Printer – 300 dpi

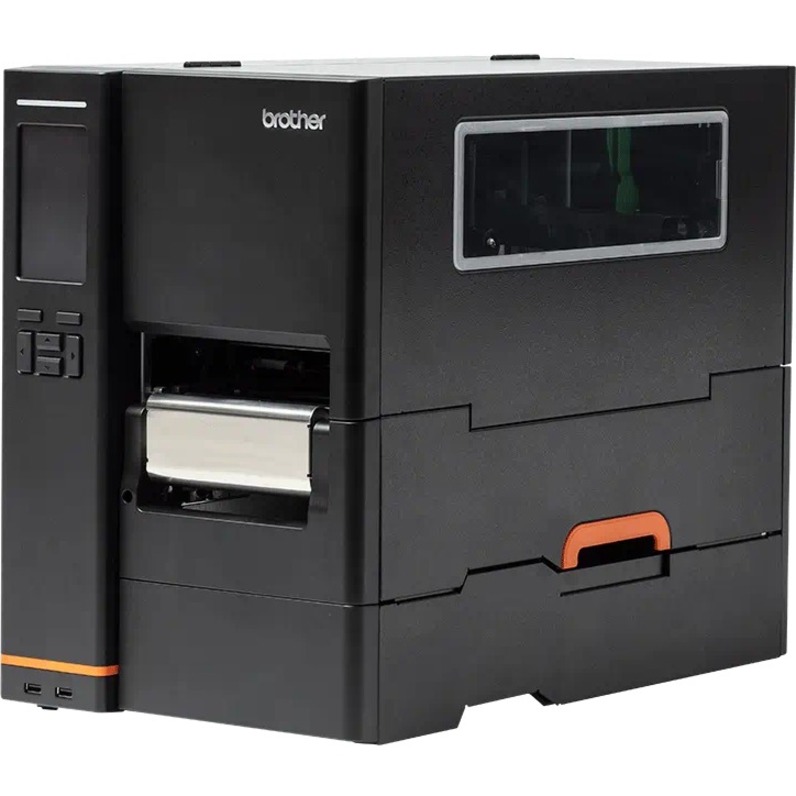

Name: Brother TJ-4522TN Barcode Label Printer
Brand: Brother
SKU: 634232
Price: 2100.08 USD
Availability: Discontinued

Part Number: TJ-4522TN

Model: Titan Industrial Printer

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Print Resolution

300 dpi

Product Description:

Industrial Printer, Brother, Titan, Thermal Transfer, Direct Thermal, TLCD Display, 300 dpi, 12 ips max speed, Bluetooth, Ethernet, USB, USB Host, RS-232 Serial

Explore all Brother Titan Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Brother Titan Barcode Label Printer Model Overview

Brother Titan Industrial Printer Series offers an advanced solution for your high-volume labeling needs. Designed to excel in demanding environments like warehouses and manufacturing, these 4-inch printers deliver high-quality, crisp barcode labels at speeds of up to 10 inches per second. With user-friendly installation and versatile connectivity options, you have the support needed to optimize your operations. Plus, the industry-leading warranty and responsive customer support ensure a steadfast partnership throughout the life of your product. Experience reliability and efficiency at an exceptional value.
Key Features:

Performance: Produce quality, scannable barcodes at up to 10ips with sharp resolutions up to 300dpi.
Support: Backed by a 2-year Premier Limited Warranty, covering the printhead, and lifetime customer support.
Integration: Seamlessly integrate with your system using included emulations, SDKs, and drivers.
Versatile Connectivity: Standard Ethernet, USB, Host-USB, RS232C, with optional Wi-Fi® module.
Usability: Easy navigation with a 3.5-inch full-color HVGA touch panel display.

Specifications:

Base Model: TJ4021TN / TJ4121TN
Printing Technology: Thermal Transfer, Direct Thermal
Media/Print Width: 4.7" (120mm)
Print Head Resolution: 203 dpi / 300 dpi
Print Engine Speed: Up to 10ips / 7ips
Standard Interfaces: Ethernet LAN, USB 2.0, RS232C
Optional Interfaces: Wi-Fi® WLAN, Bluetooth (Not Available)
Printer Memory: 128MB Flash, 128 SDRAM
Operating Temperature: 32°F to 104°F (0°C to 40°C)
ENERGY STAR Certified: Yes

Brother TJ-4522TN Barcode Label Printer Overview

Rewind and collect

Automatically wind labels onto a roll during the printing process so you don't have to collect the labels when printed.

The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.

Integrate with ease

With the Brother TJ label printers, there is no need to worry about integration.

Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.

High quality thermal printing

The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.

With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.

First-class user experience

Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.

Connectivity as standard

USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.

An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.

In-built durability

Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.

The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Length:

37.50 ft

Maximum Print Width:

4.09"

Rewinder:

Yes

Application/Usage:

Industrial

Print Technology:

Direct Thermal /Thermal Transfer

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Display & Graphics

Display Screen:

Yes

Media Types & Handling

Media Type:

Label

Maximum Label Width:

4.49"

Power Description

Power Source:

Power Adapter

Physical Characteristics

Height:

16.2"

Width:

10.9"

Depth:

19.8"

Weight (Approximate):

41.73 lb

Miscellaneous

Cables Included:

Power Adapter Included:

Yes

Platform Supported:

Item Numbers

GTIN: 0012502659273

UPC: 012502659273

EAN: 0012502659273

UNSPSC: 43212108
