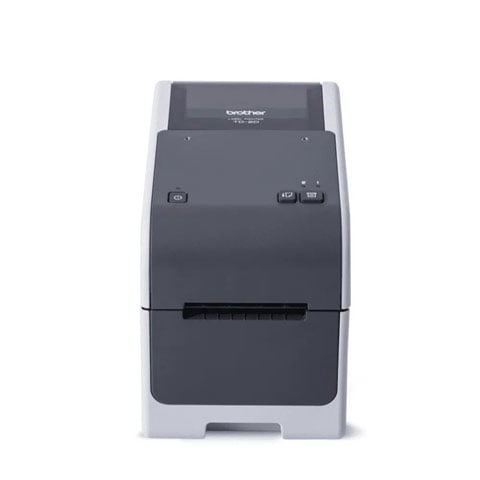

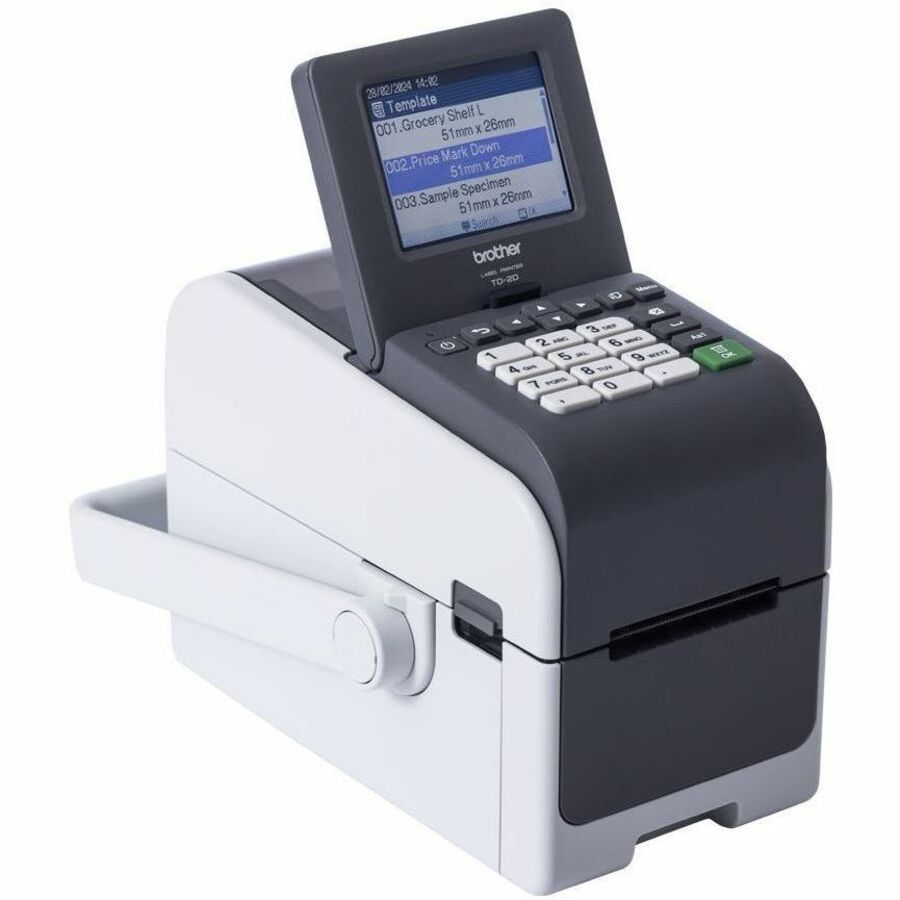

Brother TD-2300 – Barcode Label Printer

Part Number: TD2350DSA300

Model: TD-2300

$842.43

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

5.98 in/s

Maximum Print Resolution (dpi)

300

Product Description:

Barcode Label Printer, Brother TD-2300, 2.3inch Desktop Printer, DT, 300DPI, 6IPS, USB-C/Host-USB/Serial/LAN/WLAN/Bluetooth, Color Touch Panel, 2 Year Premier Warranty

Explore all Brother TD-2300 Barcode Label Printers

Add to Quote

Brother TD2350DSA300 Barcode Label Printer

Overview

Full specifications (PDF)

Brother TD-2300 Barcode Label Printer Model Overview

The Brother TD-2300 Series is a versatile and reliable range of professional label and wristband printers, perfect for healthcare, retail, and industrial applications. These compact printers use direct thermal technology to produce high-quality, 203dpi labels and wristbands with a print speed of up to 152mm per second. The spindle-less design accommodates larger media rolls, reducing downtime and improving workflow efficiency. With its seamless integration capabilities and advanced software solutions, the TD-2300 Series ensures a smooth and productive user experience.

Key Features:

Exceptional Speed and Quality: Prints at 152mm/sec with crisp 203dpi resolution.
Flexible Connectivity: Ethernet, USB-C, and Bluetooth/Wi-Fi (TD-2350D).
Compact, Spindle-less Design: Supports media rolls up to 127mm in diameter for fewer roll changes.
Software Compatibility: Includes P-touch Editor for advanced label design and supports SDKs for system integration.
Optional Accessories: Label peeler, cutter, and rechargeable battery for added functionality.

Brother TD2350DSA300 Barcode Label Printer Overview

Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2D printers combine proven desktop printer performance with new levels of efficiency to help you do more for less.

With a range of specialised features and print resolution of up to 300dpi, the TD-2D is the perfect label printer for retail, healthcare, warehousing, logistics and manufacturing - plus any other sector where you need to be able to print high-quality receipts or labels at your desk or on the move

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5.98 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Length:

118.11"

Maximum Print Width:

2.32"

Barcode Symbology Supported:

Code 39
ITF I-2/5
EAN-8 (JAN8)
EAN-13 (JAN13)
UPC-A
UPC-E
Codabar (NW-7)
Code 128
GS1-128 (UCC/EAN-128)
UPC
EAN 2 or 5 Digit Extension
Code 93
POSTNET
MSI
GS1 DataBar
GS1 DataBar (RSS-14)
GS1 DataBar Truncated
GS1 DataBar Omnidirectional
GS1 DataBar Limited
RSS14 Limited
RSS Expanded
RSS Expanded Stacked
QR code Model 1
QR Code Model 2
Micro QR Code
Maxi Code
PDF-417
Standard PDF417
Truncated PDF417
Micro PDF-417
Data Matrix ECC Rectangular
Data Matrix ECC Square
AZTEC

Peel Facility:

Yes

Application/Usage:

Desktop
Retail
Healthcare
Warehouse
Logistic
Manufacturing

Features:

Compact
Easy to Use

Mobile Device Printing:

Yes

Connectivity Technology:

Wired & Wireless

Fonts Included:

Letter Gothic Regular
Helsinki
Brussels
Gothic
Letter Gothic Bold
Symbol
OCR-A
OCR-B
Utah Condensed Bold

Print Technology:

Direct Thermal

Memory

Standard Memory:

256 MB

Flash Memory:

64 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

USB Standard:

USB Type C

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Bluetooth Version:

5.2

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Display & Graphics

Display Screen:

Yes

Screen Size:

3.5"

Touchscreen:

Yes

Media Types & Handling

Media Type:

Label
Receipt
Continuous Receipt
Wristband

Maximum Roll Diameter:

Maximum Label Width:

2.48"

Fonts & Emulation

Language Emulation:

P-touch Template
ESC/P
Raster
ZPL II
EPL2
DPL
CPCL
ZPL

Software

Operating System Supported:

Microsoft Windows® 10, Windows® 11 Microsoft Windows® Server 2016/2019/2022 Linux

Power Description

Power Source:

Power Adapter

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

20% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Form Factor:

Desktop

Height:

6.9"

Width:

Depth:

11"

Weight (Approximate):

3.90 lb

Miscellaneous

Power Adapter Included:

Yes

Platform Supported:

PC
iOS
Android

Item Numbers

GTIN: 0012502676133

UPC: 012502676133

EAN: 0012502676133

UNSPSC: 45101512
