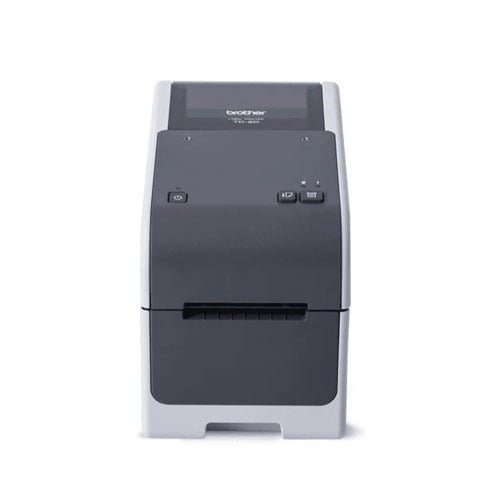

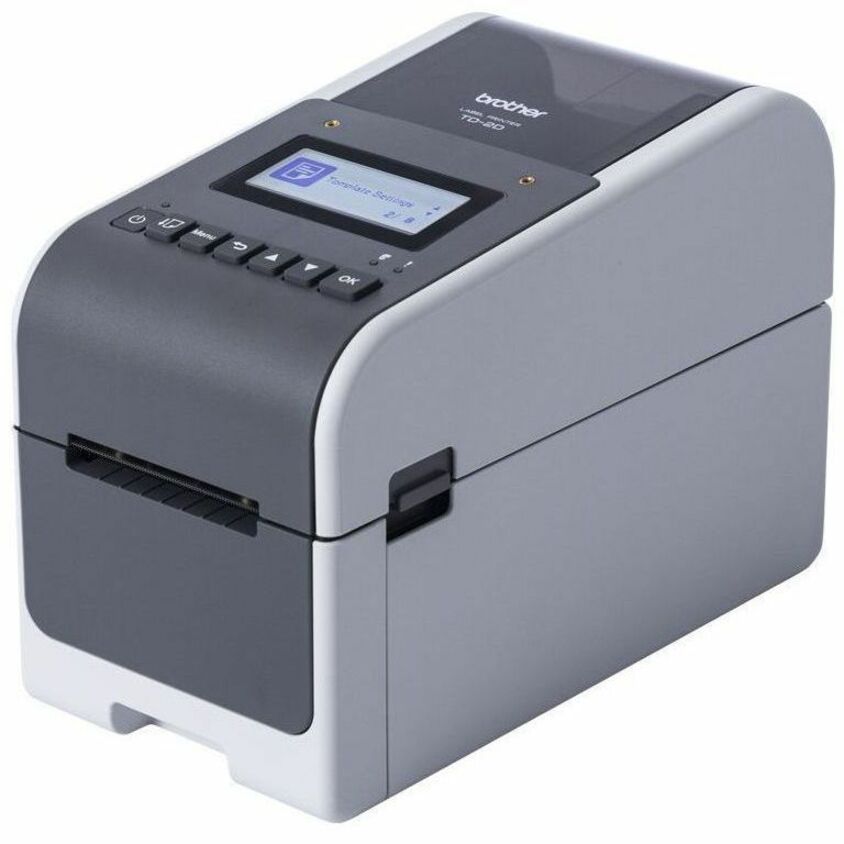

Brother TD-2300 – Barcode Label Printer

Name: Brother TD2350D300 Barcode Label Printer
Brand: Brother
SKU: 760175
Price: 472.49 USD
Availability: InStock

Part Number: TD2350D300

Model: TD-2300

$472.49

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

6 in/s

Maximum Print Resolution (dpi)

300

Product Description:

Barcode Label Printer, Brother TD-2300, 2.3inch Desktop Printer, DT, 300DPI, 6IPS, USB-C/Host-USB/Serial/LAN/WLAN/Bluetooth, LCD, 2 Year Premier Warranty

Explore all Brother TD-2300 Barcode Label Printers

Add to Quote

Brother TD2350D300 Barcode Label Printer

Overview

Full specifications (PDF)

Brother TD-2300 Barcode Label Printer Model Overview

The Brother TD-2300 Series Label and Wristband Printers are engineered for precision and performance, perfect for healthcare, retail, and laboratory applications. With advanced direct thermal technology, these compact printers provide high-quality outputs up to 59mm wide and the capability to print up to 5,000 labels daily. Choose between the TD-2320D and TD-2350D models to benefit from flexible connectivity options, including wired Ethernet, USB-C, Bluetooth, and Wi-Fi, facilitating seamless integration into existing workflows. Enhance your productivity with user-friendly features and a variety of customizable options tailored to meet your specific needs.

Key Features:

High-quality 203dpi output for clear text, barcodes, and logos
Compact and versatile design with a spindle-less design accommodating 127mm rolls
Fast print speeds of up to 152mm per second
Multiple connectivity options: Ethernet, Wi-Fi (2.4 & 5GHz), Bluetooth (TD-2350D only)
Includes P-Touch Editor software for easy label design

Specifications:

Model Options: TD-2320D, TD-2350D
Print Technology: Direct thermal
Print Speed: Up to 152mm/sec @ 203dpi
Media Width: Up to 59mm
Max Print Length: 3000mm long
Connectivity:

USB (Type C), RS-232C
10/100 BASE-TX Wired Ethernet
Bluetooth (TD-2350D only)
Wi-Fi (2.4GHz / 5GHz)

Dimensions: 119 x 224 x 158mm
Weight: 1.50 kg
Power Supply: AC adaptor, optional rechargeable Li-ion battery

Brother TD2350D300 Barcode Label Printer Overview

Get ready for quality, connectivity, and customization! With 300dpi resolution, you can print the super-clear small fonts you need for nutrition, ingredient, pharmacy, and veterinary labels. Print almost anywhere with Wi-Fi^®, driver-free AirPrint^®, or Bluetooth^®wireless connectivity and compact design. Plus, share power and space with a tablet thanks to the included USB-C port and optional tablet holder. Finally, match your printer to your workflow with an optional battery, cutter or label peeler.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

6 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Length:

118.11"

Maximum Print Width:

2.32"

Barcode Symbology Supported:

Code 39
ITF I-2/5
EAN-8 (JAN8)
EAN-13 (JAN13)
UPC-A
UPC-E
Codabar (NW-7)
Code 128
GS1-128 (UCC/EAN-128)
UPC
EAN 2 or 5 Digit Extension
Code 93
POSTNET
MSI
GS1 DataBar
GS1 DataBar (RSS-14)
GS1 DataBar Truncated
GS1 DataBar Omnidirectional
GS1 DataBar Limited
RSS14 Limited
RSS Expanded
RSS Expanded Stacked
QR code Model 1
QR Code Model 2
Micro QR Code
Maxi Code
PDF-417
Standard PDF417
Truncated PDF417
Micro PDF-417
Data Matrix ECC Rectangular
Data Matrix ECC Square
AZTEC

Peel Facility:

Yes

Application/Usage:

Desktop
Retail
Healthcare
Warehouse
Logistic
Manufacturing
Industrial
Food Service

Features:

Compact
Splash Proof
Spill Resistant
Durable
Versatile

Connectivity Technology:

Wired & Wireless

Fonts Included:

Letter Gothic Regular
Helsinki
Brussels
Gothic
Letter Gothic Bold
Symbol
OCR-A
OCR-B
Utah Condensed Bold

Print Technology:

Direct Thermal

Memory

Standard Memory:

256 MB

Flash Memory:

64 MB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

USB Standard:

USB 2.0

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Bluetooth Version:

5.2

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Display & Graphics

Display Screen:

Yes

Screen Size:

2.3"

Display Screen Type:

LCD

Touchscreen:

Yes

Media Types & Handling

Media Type:

Label
Receipt
Wristband
Tag
Die-cut Label

Media Sensor:

Black Mark Sensor
Gap Sensor

Media Thickness:

11 mil

Maximum Roll Diameter:

Maximum Label Width:

2.48"

Fonts & Emulation

Language Emulation:

P-touch Template
ESC/P
Raster
ZPL II
EPL2
DPL
CPCL
ZPL
EPL

Software

Operating System Supported:

Windows 10
Windows 11
Linux
Android
iOS

Power Description

Frequency:

50 Hz
60 Hz

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

20% - 80%

Storage Temperature:

-4°F (-20°C) - 140°F (60°C)

Storage Relative Humidity:

10% - 90%

Physical Characteristics

Form Factor:

Desktop

Weight (Approximate):

3.37 lb

Miscellaneous

Package Contents:

TD-2350D300 Direct Thermal Printer
AC Adapter
Power Cord
USB A to C cable
Media roll holder (1in & 1.5in) installed
Media disk roll holder for (0.5in & 0.75in)
Quick Start Guide
Safety Guide

Cables Included:

USB

Power Adapter Included:

Yes

Platform Supported:

PC
iOS
Android

Energy Star:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0012502674955

UPC: 012502674955

EAN: 0012502674955

UNSPSC: 45101512
