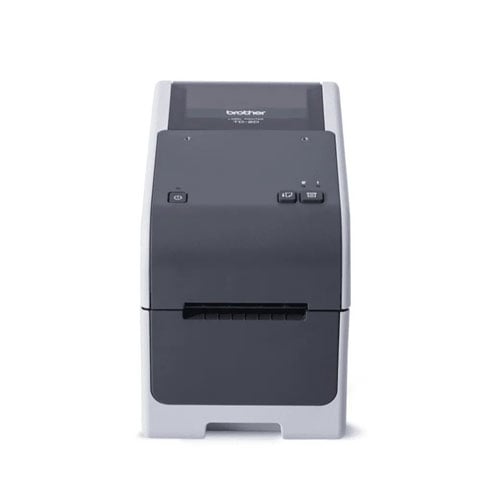

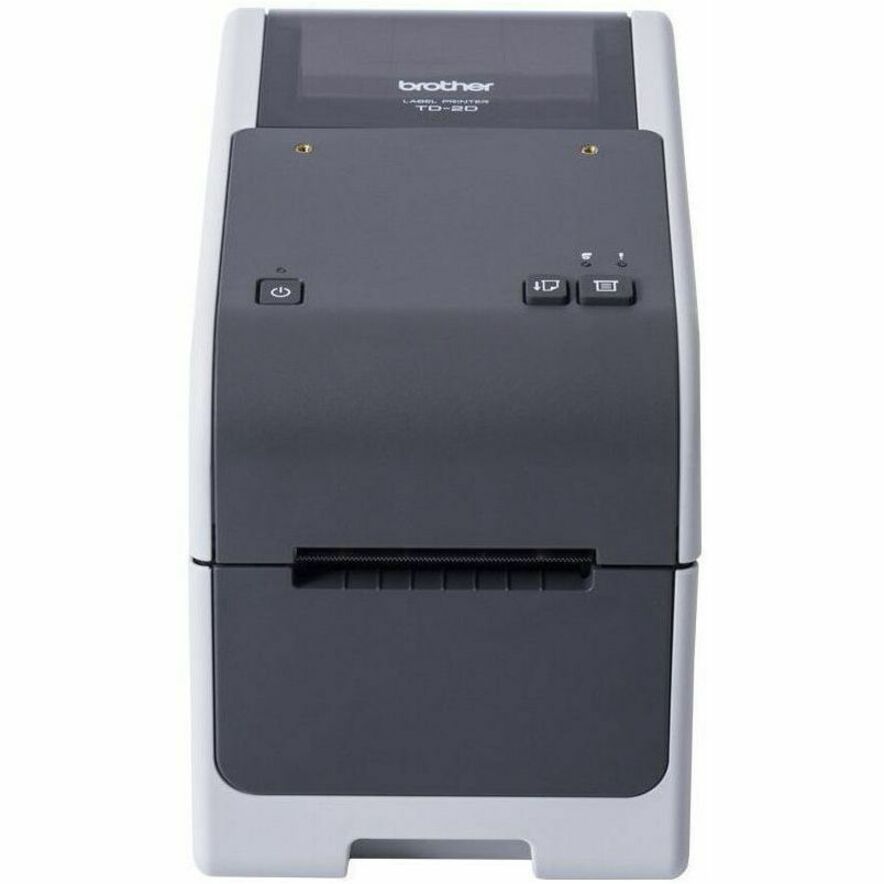

Brother TD-2300 – Barcode Label Printer

Part Number: TD2320D203
Model: TD-2300
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$345.16

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
5.98 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printer, Brother TD-2300, 2.3inch Desktop Printer, DT, 203DPI, 6IPS, USB-C/Host-USB/Serial/LAN, 2 Year Premier Warranty
Explore all Brother TD-2300 Barcode Label Printers
Add to Quote
Brother TD2320D203 Barcode Label Printer
Brother TD2320D203 Barcode Label Printer
Brother TD2320D203 Barcode Label Printer
Brother TD2320D203 Barcode Label Printer
Brother TD2320D203 Barcode Label Printer
Brother TD2320D203 Barcode Label Printer Brother TD2320D203 Barcode Label Printer Brother TD2320D203 Barcode Label Printer Brother TD2320D203 Barcode Label Printer Brother TD2320D203 Barcode Label Printer
Full specifications (PDF)

Brother TD-2300 Barcode Label Printer Model Overview

The Brother TD-2300 Series is a versatile and reliable range of professional label and wristband printers, perfect for healthcare, retail, and industrial applications. These compact printers use direct thermal technology to produce high-quality, 203dpi labels and wristbands with a print speed of up to 152mm per second. The spindle-less design accommodates larger media rolls, reducing downtime and improving workflow efficiency. With its seamless integration capabilities and advanced software solutions, the TD-2300 Series ensures a smooth and productive user experience.

Key Features:

  • Exceptional Speed and Quality: Prints at 152mm/sec with crisp 203dpi resolution.
  • Flexible Connectivity: Ethernet, USB-C, and Bluetooth/Wi-Fi (TD-2350D).
  • Compact, Spindle-less Design: Supports media rolls up to 127mm in diameter for fewer roll changes.
  • Software Compatibility: Includes P-touch Editor for advanced label design and supports SDKs for system integration.
  • Optional Accessories: Label peeler, cutter, and rechargeable battery for added functionality.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.98 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
118.11"
Barcode Symbology Supported:
  • Code 39
  • ITF I-2/5
  • EAN-13 (JAN13)
  • EAN-8 (JAN8)
  • UPC-A
  • UPC-E
  • Codabar (NW-7)
  • Code 128
  • GS1-128 (UCC/EAN-128)
  • GS1 DataBar Omnidirectional
  • GS1 DataBar Truncated
  • GS1 DataBar Limited
  • GS1 DataBar Expanded
  • QR Code
  • Maxi Code
  • Micro PDF-417
  • Data Matrix
  • AZTEC
Fonts Included:
  • Letter Gothic Bold
  • Gothic
  • Brussels
  • Helsinki
  • Letter Gothic Regular
Print Technology:
Direct Thermal
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Label
  • Ticket
Maximum Label Width:
2.48"
Fonts & Emulation
Language Emulation:
  • Raster
  • P-touch Template
  • ESC/P
  • ZPL2
  • CPCL
Software
Operating System Supported:

Windows (10, 11, Server 2016, Server 2019, Server 2022)

Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
20% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Form Factor:
Desktop
Height:
6.2"
Width:
4.7"
Depth:
8.8"
Item Numbers
GTIN: 0012502676126
UPC: 012502676126
EAN: 0012502676126
UNSPSC: 45101512
