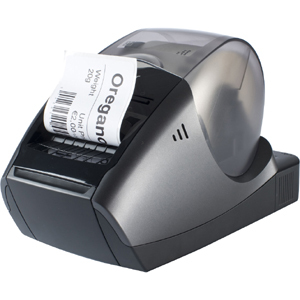

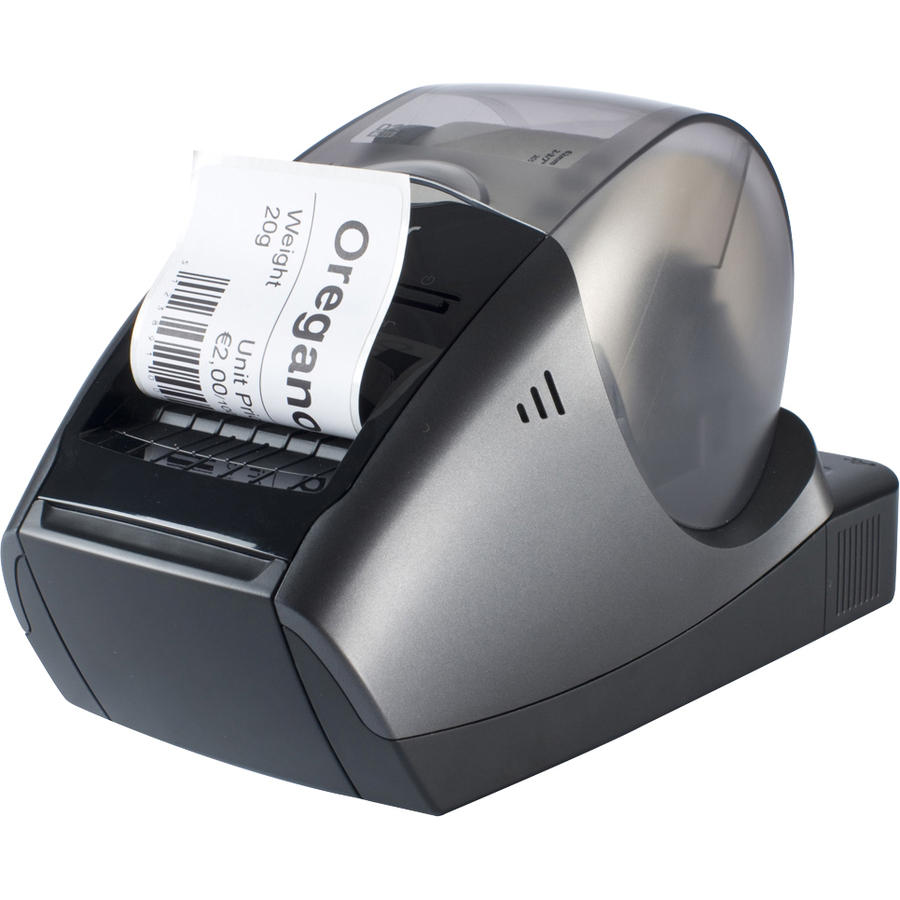

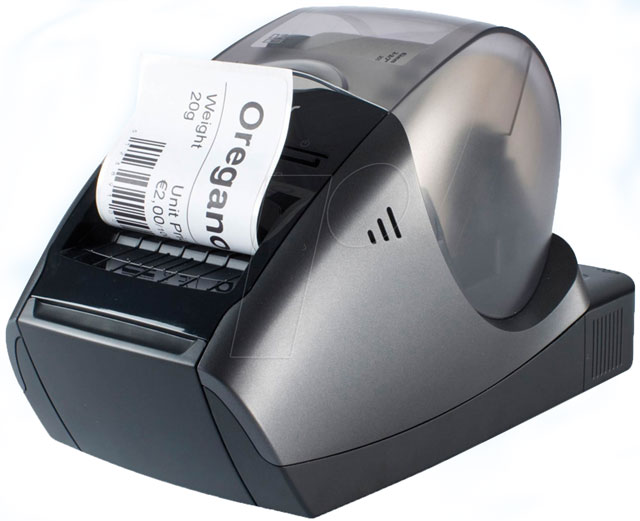

Brother QL-580N Barcode Label Printer

A newer version of this item is available.
It is replaced by the Brother QL-710W Barcode Label Printer.

Brother QL-580N - Brother QL-580N Thermal Label Printer - Monochrome - 68 lpm Mono - 300 x 600 dpi - Serial, USB - Fast Ethernet

Direct Thermal Printer provides you with all the features that you need to print quickly and easily
Delivers high-speed, hassle-free labeling solution for your business needs
The printer is capable of printing sharp and detailed monochrome documents quickly
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity

Need a different version? See all Brother QL-580N Barcode Label Printers

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Brother QL-580N Barcode Label Printer Model Overview

The Brother QL-580N, with its built in Ethernet connection, is the perfect label printer to share with your workgroup. Offering print speeds up to approx. 68 labels per minute and high quality, 300 x 600 (Superfine mode) dpi resolution, the Brother QL-580N is the perfect solution for producing professional labels with graphics, logos and text for mailing, records management and other administrative applications. Capable of accepting labels up to 2.4" wide, this model also features a built-in cutter.

Brother QL-580N Barcode Label Printer Overview

Brother QL-580N, with its built in Ethernet connection, is the perfect label printer to share with your workgroup. Offering print speeds up to 68 labels per minute, the Brother QL-580N is the perfect solution for producing professional labels with graphics, logos and text for mailing, records management and other administrative applications. Capable of accepting labels up to 2.4" wide, this model also features a built-in cutter. The Brother QL-580N is bundled with powerful, but user-friendly P-touch Editor software featuring 3 input modes. Plus with Brother's network management tools. It is easy to integrate and manage Brother's QL-580N on any network.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

1.1 lps

Maximum Print Resolution:

300 x 600 dpi

Maximum Print Width:

2.40"

Barcode Symbology Supported:

Code 39
ITF 2/5
Code 128
Codabar
NW-7
UPC-A
UPC-E
EAN-8
EAN-13
EAN 128
PDF-417
Macro PDF-417
Truncated PDF417
QR Code
Micro QR
POSTNET
ISBN-2
ISBN-5
Data Matrix
Maxi Code
RSS

Memory

Standard Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Die-cut Label
Continuous Form

Media Size:

36"

Maximum Label Width:

2.40"

Physical Characteristics

Height:

5.6"

Width:

5.2"

Depth:

9.4"

Miscellaneous

Package Contents:

QL-580N Thermal Label Printer
Software Media Includes P-touch Editor & Driver
Starter Rolls: DK-2205 2-3/7" (25 feet) & DK-1201 Standard address label (100 labels)
Set-up & Operation Guide
DK Supplies Guide
Cleaning Sheet
AC Power Cord
USB Cable

Cables Included:

Platform Supported:

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0012502620716, 0666669980253, 4977766660976

UPC: 012502620716, 666669980253

EAN: 0012502620716, 0666669980253, 4977766660976

UNSPSC: 45101512
