Wi-Fi Generation:
Wi-Fi 6
Wireless LAN Standard:
IEEE 802.11ac
Network Band:
Dual Band
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.50 GHz
UNII Maximum Frequency:
5 GHz
BrightSign Parts Accessory Model Overview
Products and parts from BrightSign.
BrightSign WD104 Motorola Antennas Overview

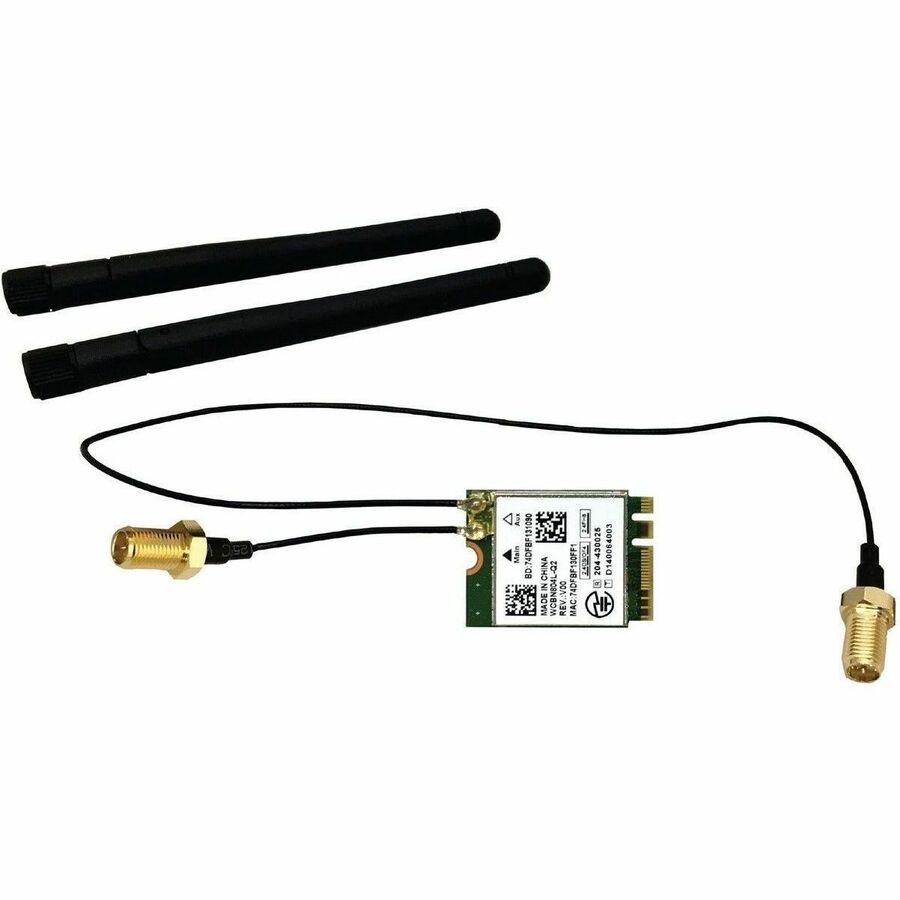

WD-104 WI-FI/BLUETOOTH MODULE
The WD-104 dual antenna Wi-Fi/Bluetooth Module enables BrightSign XT4 & XD4 players to reliably connect to wireless networks and operate Beacons via Bluetooth. The dual antennas provide robust wireless networking performance and add a higher level of reliability to connect to Wi-Fi signals. The M.2 interface connection allows for a simple on-board installation, and the antennas easily screw into the back of the player.
Features
Includes dual antennas for a reliable & robust Wi-Fi network connection
Offers dual band support for both 2.5GHz and 5GHz wireless networks
Provides support for both access point at 2.5GHz & Wi-Fi client modes
Operates beacons via Bluetooth
Wi-Fi Certi ed 802.11ac
Connects via an M.2 interface
Compatible with XD234, XD1034, XT244 & XT1144 models
Requires BrightSign OS version 8.4.10 or higher
Technical Information
Interfaces/Ports
Host Interface:
M.2
Physical Characteristics
Form Factor:
Plug-in Module
Miscellaneous
Device Supported:
Digital Signage Player
Item Numbers
UNSPSC:
43201409
Get help from a Barcoding Expert!
The BrightSign WD104 Motorola Antennas is also known as
WD104
