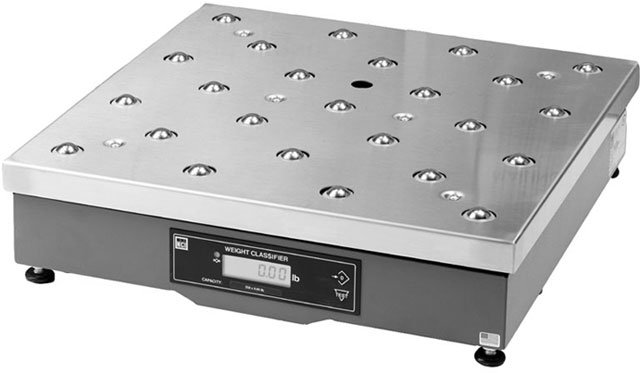

The SALTER Brecknell Model 7880 Bench Scale is an essential tool for precise weight classification in various applications, including shipping and inventory management. With a rugged stainless steel weight platter and a durable painted mild steel base, this scale combines functionality with resilience. It supports multiple weight capacities up to 300 lb (150 kg), making it an adaptable solution for your weighing needs. The easy-to-read 6-digit LCD display and user-friendly operation help simplify the weighing process, ensuring accurate and reliable measurements every time. Key features:
Multiple Capacities: Options of 150 lb, 250 lb, and 300 lb with accuracy down to 0.05 lb or 0.1 lb.
Field Calibration: Simplified setup for decimal pounds or kilograms.
Robust Connectivity: RS-232 cable included for easy PC connection.
Innovative Durabridge Technology: Minimizes deflection for precise measurements.
Specifications:
Weight Capacity: 150 lb x 0.05 lb, 250 lb x 0.05 lb, 300 lb x 0.1 lb
Metric Capacity: 75 kg x 0.02 kg, 100 kg x 0.02 kg, 150 kg x 0.05 kg
Dimensions: 18" L x 18" W x 4.5" H (457 mm x 457 mm x 114 mm)
Power Supply: 120 VAC (+10% -15%), 60 Hz
Operating Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10% to 95% (non-condensing)
Shipping Weight: 45 lb (21 kg), 60 lb (28 kg with ball top)
Certifications: NTEP #95-121
Brecknell AWT05-508658 Scale Overview

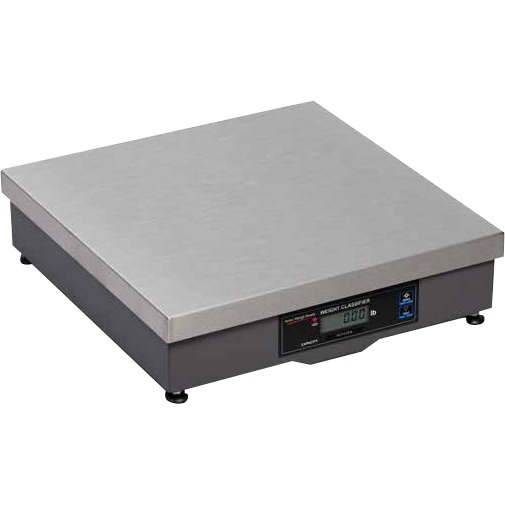

The 7880 durable 18" x 18" Bench Scale provides the best accurate and reliable weight measurement for static or inline shipping applications.
Designed with a hard wearing stainless steel weight platter and a rugged powder coated, carbon steel base housing that helps to fully protect the centrally mounted aluminum analog load cell from damage.
Supplied with a built-in flush fitting, six digit ½" high LCD display that is mounted centrally in the front face of the base.

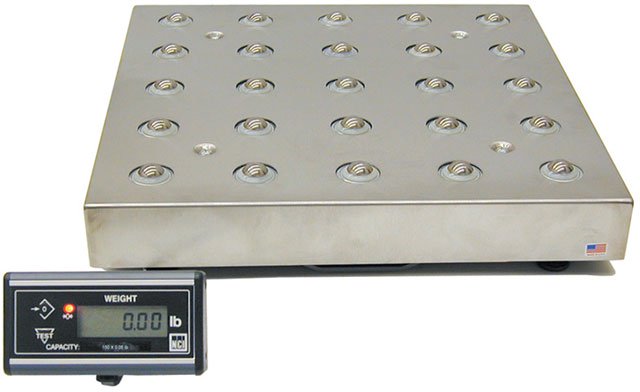

An optional second remote display can be plugged in to give a customer facing weight reading. A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party post, mail and shipping software programs or host devices. This will be communicated through either a serial RS232, USB (HID) or USB (VCP) port found on the rear of the base.
