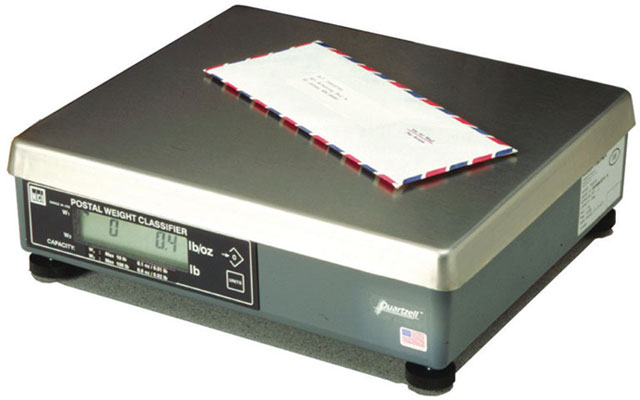

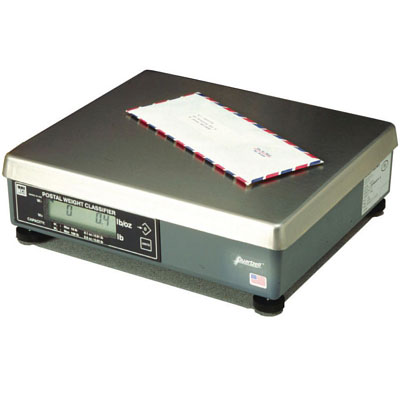

Brecknell 9503-15625 Scale

Brecknell 7620 - 100lb (lb/lb-oz switching), 12" x 14" mailing and parcel shipping scale. Includes 10 ft. RS-232 Cable (9 Pin to 9 Pin).
High resolution postal weight classifier

The Brecknell 7620 features a multi-weight range capability. This bench scale is designed to weigh letters, flats, parcels and larger packages up to 150 lbs on a single scale. This item comes equipped with Quartzell transducers to provide the highest repeatability for consistent weight measurement. The 7620 boasts an internal display that is a 7 digit, 1/2" high (12.7 mm) LCD. The overall construction is stainless steel or ABS plastic weight platter with a die-cast aluminum base and loadbridge.

Technical Information

  • Maximum Weight Capacity (Imperial): 100 lb
  • Measurement Type:
    • Pound
    • Kilogram
  • Features: Zero Adjustment
  • Application/Usage:
    • Letter
    • Packages
    • Parcel

General Information

  • Product Type: Digital Postal Scale
  • Brand Name: Weightronix
  • Manufacturer: Weightronix Controls
  • Product Model: 7620
  • Product Name: NCI 7620 Digital Postal Scale

Physical Characteristics

  • Height: 4.1"
  • Width: 14.1"
  • Depth: 12.5"
  • Material:
    • Steel Platform
    • Aluminum Base


  • Interfaces/Ports: DB-9 RS-232 - Serial


  • Package Contents:
    • NCI 7620 Digital Postal Scale
    • 10 foot DB-9 pin interface cable
    • NCI 7620 Digital Postal Scale
    • 10 foot DB-9 pin interface cable
  • Certifications & Standards:
    • United States: NTEP CC# 95-071A3
    • Canada: MOI #AM-5074
    • International: EU trade approval #UK2476
  • Additional Information:
    • Accurate and Reliable Quartzell Transducers Provide The Highest Repeatability For Consistent Weight Measurement
    • Field Calibration, Alternate Span Points Can Simplify Field Calibration By Using Less Than Full Capacity Weights
    • Units Switching, Switch Between Decimal Pounds And Pounds/Ounces, Decimal Pounds And Kilograms, or Pounds/Ounces And Kilograms.
    • Emulation Protocols, Standard NCI Default With Field Configurable Settings Of A5350D And PS6L
    • Metrologic Configurations, Set-up Scale To Display Weight As Multi-range, Multi-Interval Or High Resolution

Power Description

  • Frequency: 60 Hz
  • Input Voltage: 120 V AC

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)


The Brecknell 9503-15625 is also known as Brecknell Scales 9503-15625 or 950315625 .
