Brecknell 816965005369 Scale

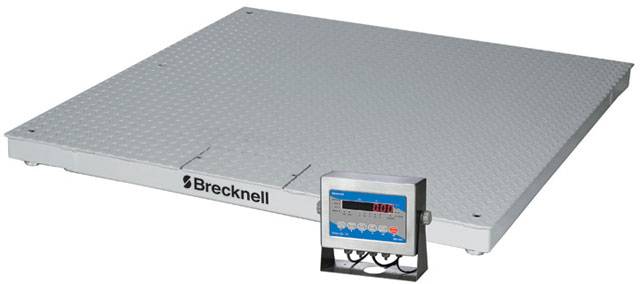

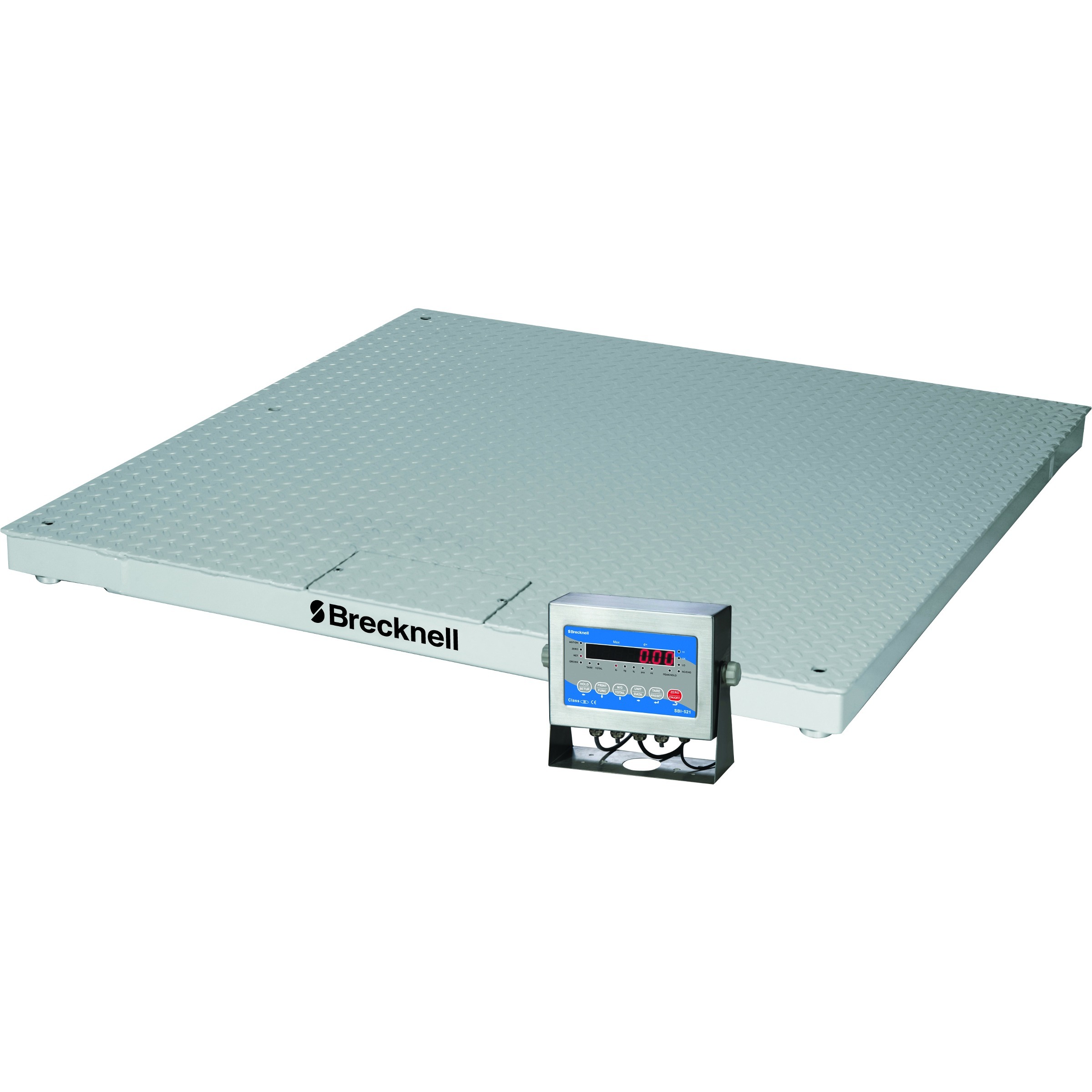

Brecknell DCSB Platform System - 1524 mm / 60", 2500 kg x 0.5 kg / 5000 lb x 1 lb
  • Capacity: 2500 kg x 0.5 kg / 5000 lb x 1 lb
  • Platform Size 1524 x 1524 mm / 60" x 60""
  • Construction- Mild steel with powder coat paint finish. 6 mm / 0.25" thick top plate with heavy duty welded channel support. Stainless steel indicator
  • Power- Internal rechargeable battery or AC adapter (both included)
  • Display- 17 mm / 0.7" LED
Read More
$1,902.76
Ships within 3 to 5 business days

Full specifications (PDF)

Pre-calibrated to SBI-521 LED Indicator
IP65 rated mild steel general purpose weighing platform with alloy tool steel potted load cells. Pre-calibrated with SBI-521 LED indicator and interface cable.
Brecknell 816965005369 Overview
Features
  • Typical Applications: Livestock, Shipping, Warehouse
  • Product Code D DCSB Floor Scale System w/SBI-521 LED
  • Capacity- 2500 kg x 0.5 kg / 5000 lb x 1 lb
  • Construction- Mild steel with powder coat paint finish. 6 mm / 0.25" thick top plate with heavy duty welded channel support. Stainless steel indicator
  • Power- Internal rechargeable battery or AC adapter (both included)
  • Display- 17 mm / 0.7" LED
  • Operator Keys-- Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
  • Legal for Trade- All sizes are NTEP certified at 5,000 divisions, Class III
  • Load Cells- Four alloy steel potted
  • Warranty- One year
  • J-Box Access: Top access for easy installation and service
  • Leveling Feet: Four top access holes for a quick installation
  • Threaded Eye Bolts: Two threaded top access eye-bolt holes for easy mobility and pit service
  • Corner Protection: Closed corners to prevent damage to leveling feet while installing the scale
  • Floor Scale Material: Construction: Mild steel 0.25 inch deck with safety tread, 10K (4? x 4?; 5? x 5?) 0.19 inch deck with safety tread, 5K (4? x 4?; 5' x 5')
  • Interface Cable Length: 4.5 m / 15? with tinned leads
  • Quick Disconnect Cable: Optional
  • Rated: IP65
  • J-Box Construction: Stainless steel
  • Load Cell Material: Alloy tool steel potted
  • Load Cell Rated Output: 3mv/V
  • Load Cell Output Resistance: 350 ohm
  • Overload Protection: 150% of rated capacity
  • End Loading: 100% of rated capacity
  • Operating Temperature: -10° C to 40° C / 14° F to 104° F
  • Certifi cations: NTEP COC #02-070
Protect Your Product

Full specifications (PDF)

Technical Information
Maximum Weight Capacity (Imperial):
5000 lb
Maximum Weight Capacity (SI):
2500 kg
Weight Increment (Imperial):
1 lb
Weight Increment (SI):
500 g
Measurement Type:
  • Kilogram
  • Pound
Application/Usage:
  • Shipping
  • Warehouse
Features:
  • Adjustable Leveling Feet
  • Free Standing
  • Heavy Duty
  • Overload Protection
  • Tare Function
  • Water Proof
Display & Graphics
Display Screen Type:
LED
Power Description
Power Source:
Battery
Physical Characteristics
Material:
  • Mild Steel
  • Stainless Steel
Height:
3.1"
Width:
59.8"
Depth:
59.8"
Miscellaneous
Certifications & Standards:
NTEP COC #02-070
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0816965005369
UPC: 816965005369
EAN: 0816965005369
UNSPSC: 42182800
